Product Details:
|
| Suitable Material: | Galvanized Steel Coil | Thickness: | 1.5~3.0mm |
|---|---|---|---|
| Roller Stations: | 23 Stations | Forming Speed: | Approx. 18m/min |
| Main Power: | 18.5KW | Hydraulic Power: | 7.5KW |
| High Light: | 15m/Min C Z Purlin Roll Forming Machine,hangars C Z Purlin Roll Forming Machine,15m/Min c z purlin forming machine |
||

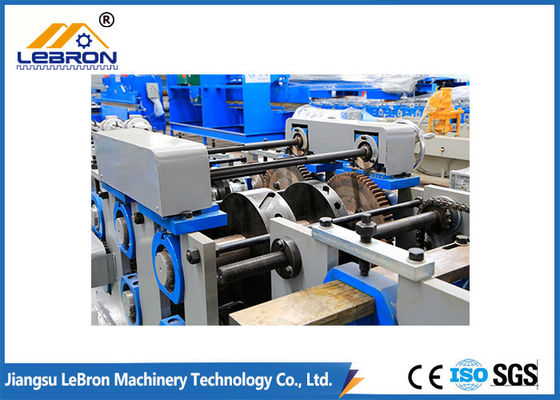

PLC Control Size Adjustable C Purlin Roll Forming Machine CZ Purlin Roll Forming Machine
1. Description of c purlin roll forming machine
C purlin production process: use the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel supporting the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
C purlin rolling mill is a kind of equipment for continuous production of C-type channel steel by feeding, punching, bending, cutting, and other processes with galvanized or cold rolled steel strip.
C80-300 type C Purlin Roll Forming Machine is for producing the bottom width from 80~300mm C purlins.
The main components of C-channel rolling forming machine include manual decoiler (capacity 3 tons), feeding guide rail of different sizes of materials, leveling device, front hydraulic punching of holes or grooves on flange, rolling forming parts, back hydraulic punching of holes or grooves on Web, hydraulic cutting machine, PLC control cabinet, and hydraulic oil pump.
2. Main Technical Parameters
| No. | Item | Description |
| 1 | Suitable Material | Hot-dipped Galvanized Steel Coils |
| 2 | Thickness of Material | 1.5mm-3.0mm |
| 3 | Roller Stations | 23 stations |
| 4 | Diameter of Shaft | 80mm |
| 5 | Material of Shaft | 45# steel |
| 6 | Material of roller | GCr15 steel with quenching treatment and coated with hard chrome 0.05mm thickness |
| 7 | Forming speed | Approx. 18m/min |
| 8 | Main Power | 18.5KW |
| 9 | Overall Dimension | 13500mmx1500mmx1300mm |
| 10 | Weight of the machine | Approx. 12 Tons |
| 11 | Cutting | Hydraulic Post Cutting |
| 12 | Material of Cutting Blades | Cr12 steel with heat treatment |
| 13 | Hydraulic Power | 7.5KW |
| 14 | Control system | Panasonic PLC, Inverter, CHNT transformer and Omron encoder |
3. After-sale Service
Installation service
a. After the machine arrives at the destination, the seller will send the technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist in the installation work.
The installation period is around 5 days. The buyer should have been prepared for the steel sheet, foundation position the machine before the seller’s technician's departure.
The buyer should arrange the accommodation, food, and traffic in the destination
Training period: 2 days. (we can supply training on the operation spot if buyer needs)
Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. The inspection standard is based on the technical standard signed by both parties and our company standard.
