Product Details:
Payment & Shipping Terms:
|
| Material Thickness: | 1.2~2.3mm | Applicable Material: | Galvanized Steel, Colled Rolled Steel Coil |
|---|---|---|---|
| Yield Strength: | G340~550Mpa | Side Wall Tickness: | 18mm |
| Main Power: | 11KW | Roller Station: | 14 Stations |
| High Light: | 14 Stations Storage Rack Roll Forming Machine,550Mpa Storage Rack Roll Forming Machine,550Mpa rack roll forming machine |
||
1. Description of Storage Rack Roll Forming Machine
The Storage Pallet RackPost Roll Forming Machine is one kind of Lebron-machinery's storage sheveling system. This production line composed of automatic uncoiler, guide frame, lever/feeding area, continuous bottom hole punching area, forming area, positioning and cutting area, collecting table and electrical control system.Other machines main including shelf columns roll forming machine, shelf beams roll forming amchine, shelf struts roll forming machine, shelf plywood roll forming machine , etc.
Features of this rack making machine:
Lower cost
high efficiency
Reliable work
Low energy consumption

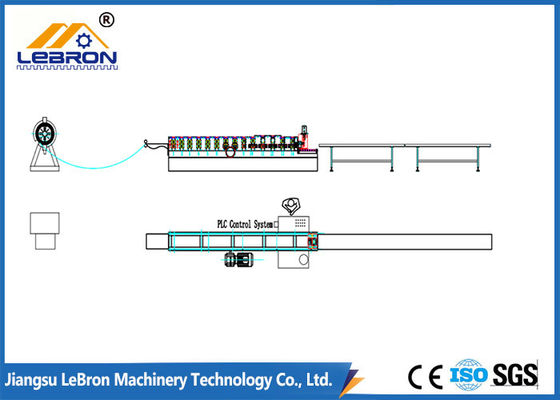

Composition of shelf rolling production line
1. Uncoiler
2. Feeding Device
3. Roll Forming Unit
4. Hydraulic system
5. Automatic cutting system
6. Computer control system (imported computer)
7. Receiving Table
2. Technical parameters of Storage Rack Roll Forming Machine
| No. | Item | Description |
| 1 | Machine Size | Around 8.0*1.5*1.2m (L*W*H) |
| 2 | Feeding Material | Galvanized Steel & Cold Rolled Coil |
| 3 | Thickness | 1.5~2.5mm |
| 4 | Roller Step | 14 Rows |
| 5 | Material | GCr15 steel. Quenched. |
| 6 | Roller Shaft Material | No.45 Steel. Quenched. |
| 7 | Diameter | 70mm |
| 8 | Drive Mode | Chain |
| 9 | Main Motor Power | 11KW |
| 10 | Hydraulic Station Power | 7.5KW |
| 11 | Cutter Material | Cr12MoV Steel |
| 12 | Operation system | Controlled by industry computer-PLC system. |
| 13 | PLC brand | Siemens with English and Chinese Language |
| 14 | Voltage | 380V/50Hz/3Ph |
3. Main components of Storage Rack Roll Forming Machine
| Manual Decoiler | Max Width: 1250mm |
| Inner Diameter: 500mm | |
| Outer Diameter: 1200mm | |
| Max Weight Capacity: 5T | |
| Roll Forming | Raw Material: Galvanized Steel Coil |
| Material Thickness: 1.5-2.5mm | |
| Working Speed: 6-8m/min; Adjustable | |
| Rollers: 14 rollers | |
| Material for Rollers: GCr15 | |
| Motor Power: 11 KW | |
| Roller Diameter: 70mm | |
| Drive Mode: Chain Transmission | |
| Appearance Size: About 8000mm*1500mm * 1200mm | |
| Total Weight: About 10T | |
| Hydraulic Cutting | Cutting Type: Hydraulic, automatic cutting |
| Blade Material: Cr12 with polished, quenched HRC 60-62 | |
| Power: 4KW | |
| Control System | Electrical Control: PLC Frequency Control System |
| Voltage: 380V/50Hz/3Ph(or custom) | |
| Length Error: ±1mm | |
| Output Table | It is simple and used to load finished product |
| Length: 4m ( or custom) |
