Product Details:
|
| Main Power: | 5.5KW | Drive Mode: | Chain |
|---|---|---|---|
| Roller: | 45# Steel, Quenched, Coated With Hard Chrome | Roller Shaft: | No.45 Steel. Diameter: φ75 Mm. |
| Cutter Blade: | Cr12 Steel. HRC 58-62° | Roller Station: | 18 Stations |
| High Light: | 5.5KW Corrugated Sheet Roll Forming Machine,5.5KW corrugated roof sheet making machine,PPGI corrugated roof sheet making machine |
||

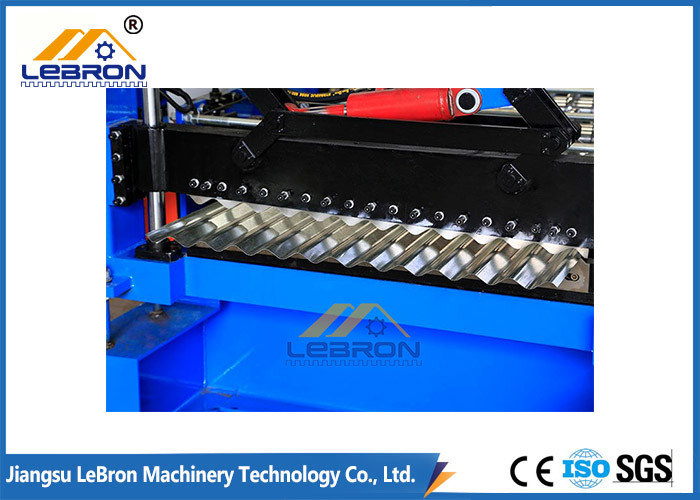

Fully Automatic 850 Model Corrugated Sheet Roll Forming Machine PLC Control High Speed
1. Description of Corrugated Sheet Making Machine
We are a well-known manufacturer, exporter of Corrugated Sheet Roll Forming Machines. It is manufactured by our professionals using reliable quality components, which are purchased from reliable market suppliers and meet international quality standards to ensure flawless user end. This machine has been quality tested and offers various technical specifications, and can be purchased in bulk. Customers can buy machines from us at the most economical price.
2. Main Technical Parameters of Corrugated Sheet Roll Forming Machine
| No. | Item | Description |
| 1 | Suitable Raw Material | GI, GL, PPGI, PPGL Coil |
| 2 | Thickness | 0.3mm ~ 0.8mm |
| 3 | Width | 914mm ~ 1250mm |
| 4 | Yield Strength | 235Mpa ~ 550 Mpa |
| 5 | Forming Station | 18stations |
| 6 | Diameter of Shaft | Dia 75mm |
| 7 | Roller Material | No. 45 steel, quenched, coated with 0.05mm chrome |
| 8 | Cutter Material | C12 Steel, quenched, coated with 0.05mm chrome |
| 9 | Main Power | 5.5 KW |
| 10 | Hydraulic Station | 4 KW |
| 11 | Voltage | 380V/50Hz/3Phase |
| 12 | Control System | PLC Control System |
3. Main Components of Corrugated Sheet Roll Forming Machine
| No | Name | Quantity | |
| 1 | 5 Tons Manual Decoiler | 1 Set | |
| 2 | Main machine | Pre-cutting device | 1 Set |
| Feeding device | 1 Set | ||
| Roll forming system | 1 Set | ||
| Post cutting device | 1 Set | ||
| Hydraulic system | 1 Set | ||
| 3 | Electric control system | 1 Set | |
| 4 | Receive Table | 2 Sets | |
4. Electric Appliances
1). Frequency Converter: Yaskawa Brand
2). Computer PLC: Siemens Brand
3). Touch Screen: Siemens Brand
4). Low Voltage Apparatus: Schneider Brand
5). Encoder: Omron Brand
