Product Details:
|
| Thickness: | 0.3mm ~ 0.8mm | Forming Speed: | 8~15m/min |
|---|---|---|---|
| Roller Material: | 45# Steel, Coated With Chrome, Quenched | Roller Station: | 16~18 Stations |
| Shaft Dia: | 80mm | Main Power: | 4 Kw + 4 Kw |
| High Light: | gutter making machine,half round gutter machine |
||
Full Automatic Durable Half Round Metal Gutter Roll Forming Machine Servo Guiding Device
1. Description of Half Round Roll Forming Machine
Half Round Galvanized gutters have been around for decades because of their strength and corrosion resistance. Heavy gauge steel hot dipped with zinc gives the gutter both added strength and superior resistance to the elements.
It is known to that entire half round gutters are attached to the roof edges and used to draw water down and away from the house and its foundation. Most gutters consist of sections of gutter, drop outlets and downspouts. Gutters can be constructed out of Aluminum, Copper, Galvalume, Galvanized Steel, Copper penny Aluminum, freedom gray copper, preweathered zinc, copperplus, designer copper aluminum, lead coated copper, paint grip steel.
For the design, we do some innovative range of gutter machines for the production of half round gutters with traditional profiles and width 280, 333 and 400 mm. there are two types: one sizes or linear sizes.
2. After Sale Service
A. Foreign debugging
If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day
B. Guarantee period
The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).
C. Training
During installation and adjustment of the equipment, our engineers shall provide the training to
buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Lifetime services
Life time services to every customer.
3. Technical Parameter of Half Round Roll Forming Machine
| No. | Half Round Gutter Roll Forming Machine | |
| 1 | Suitable material | GI, GL, Copper, Aluminum Coil |
| 2 | Width of material | 530 mm or customized |
| 6 | Thickness of material | 0.3-0.8mm, customized |
| 2 | Working speed | 8~15m/min |
| 3 | Main Motor power | 4 Kw |
| 4 | Hydraulic station power | 4 Kw |
| 5 | Electrical control system | PLC control system |
| 7 | Shaft diameter | 80mm |
| 8 | Roller station | 16~18 stations |
| 10 | Dimension | Approx 8000x1200x1500mm |
| 11 | Weight | Approx 4 Ton |
| 12 | Voltage | 380V 3phase 50HZ or as the customer's requirements |

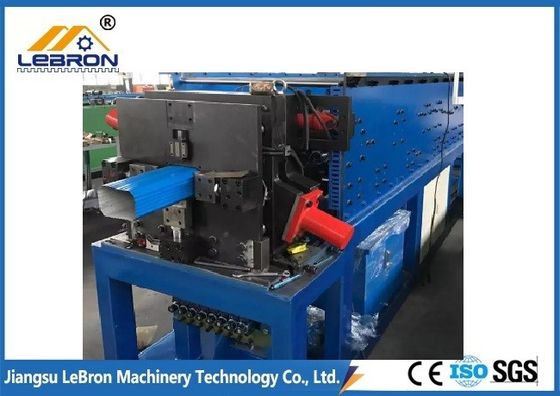

4. Product Picture
