Product Details:
Payment & Shipping Terms:
|
Roller Station: | 14-16 Rollers | Suitable material: | Color Steel Coil |
---|---|---|---|
Forming Speed: | 8-12m/min | Cutter Material: | Cr12 |
Electric Voltage:: | 380V/3Ph/50Hz Or 220V/3Ph /60Hz (or Custom) | Main Motor Power: | 5Kw |
High Light: | rain gutter roll forming machine,half round gutter machine |

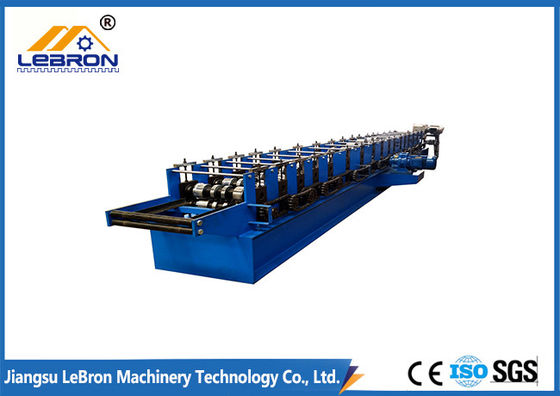

Full Automatic Hydraulic Cutting Device Gutter Roll Forming Machine Speed 8-12m/min
1. Description of steel gutter roll forming machine:
Steel gutter roll forming machine is used for the production of the metal gutters, which are widely used in the modern villas and multiple raises buildings. LBM is producing the high quality steel gutter roll forming machines and export to India, Vietnam, Indonesia, Thailand, Egypt, etc.
2. Main parameter of steel gutter roll forming machine
No. | Main parameters | |
1 | Suitable to process | Color steel plate |
2 | Width of the plate | 200-600mm |
3 | Roller station | 14-16rows |
4 | Dimensions | 8.6*0.8*1.2m |
5 | Power | 4+3kw |
6 | Thickness of the plate | 0.3-0.8mm |
7 | Forming speed | 8-12m/min |
8 | Diameter of the shaft | 70mm |
9 | Weight | About 4.5 T |
10 | Voltage | 380V 50Hz 3phases |
11 | Rolling material | No. 45# with hard chrome and quenched |
12 | Material of the cutting plate | Cr12 |
13 | Processing precision | Within 1.00mm |
14 | Control system | PLC control |
15 | Side panel of machine | 14mm |
16 | Main structure of the machine | 300 H steel |
17 | Weight | About 4.5 T |
3. Main components of steel gutter roll forming machine
No. | Description | Quantity (set) | Remark |
1 | 5Tmanual decoiler | 1 | As one complete part |
2 | Guiding device | 1 | |
3 | Pre-cutter | 1 | |
4 | Forming system | 1 | |
5 | Transmission system | 1 | |
6 | Hydraulic guillotine | 2 | |
7 | Support table | 2 | |
8 | Hydraulic station | 1 | |
9 | Control box | 1 | |
10 | Spare parts and tools | 1 | As attaching list |
4. Flow chart of steel gutter roll forming machine
5. Work process
7. Our service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
8. Delivery
