Product Details:
Payment & Shipping Terms:
|
| Material: | CR12 Mould Steel, With Quenched Treatment | Color: | Blue |
|---|---|---|---|
| Roller Stations: | 20 Stations | ||
| High Light: | rain gutter roll forming machine,half round gutter machine |
||

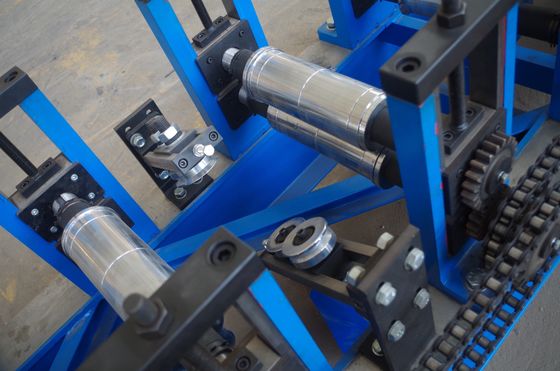

1. Description of gutter roll forming machine:
Metal gutter is made by using the color steel or aluminum plate roll-pressing and end-closing, then use the special equipment hit-to-bend and necking. Metal drainage system has the excellent weather fastness. It has the advantages such as simple design, easy installation, safe and durable, elegant. It is widely used in the modern villas and multiple raises buildings. LBM is producing the high quality metal gutter roll forming machines and export to India, Vietnam, Indonesia, Thailand, Egypt, etc.
2. Technical details of gutter roll forming machine:
| Machine Specifications | |
| Weight | About 4000kgs |
| Size | About 6m x 1.0m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 610mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 55mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 4kw |
| Hydraulic unit motor power: 2.2kw | |
| Electric voltage | According to customer’s requirement |
Contact Person: Alfred
Tel: +8618121549786
