2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine

2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine
2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine 2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine 2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine 2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine

Large Image :  2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine

Product Details:
Place of Origin: China
Brand Name: LBM
Certification: certificate of china
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 30-45
Payment Terms: L/C, D/A, D/P, T/T, Western Union

2018 new Type CNC Control Roll Forming Machine Drainage use PLC Control Metal Gutter Roll Forming Machine

Description
Material: Cr12 Steel, Coated With Chrome, Quenched Roller Station: 18 Stations
Color: Blue
High Light:

gutter making machine

,

half round gutter machine

1. Description of Gutter Roll Forming Machine:



LBM is producing the high quality steel gutter roll forming machines and export to India, Vietnam, Indonesia, Thailand, Egypt, etc.



Steel gutter roll forming machine is used for the production of the metal gutters, which are widely used in the modern villas and multiple raises buildings.



gutter machine is the special equipment for continuous rolling and cold-forming on steel sheet. It adopts coiling steel sheet as the raw material, decoiling the coil, continuous rolling and cold-forming, automatically cut to the size and output the finished panel.



The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective gutter roll forming machine.





2. Technical Details of Gutter Roll Forming Machine



No. Gutter Roll Forming Machine
1 Suitable material Color steel sheet ,galvanized steel sheet, aluminium sheet
2 Width of material 530 mm or customized
6 Thickness of material 0.4-0.6mm, customized
2 Working speed 8-10m/min, can be 20m/min

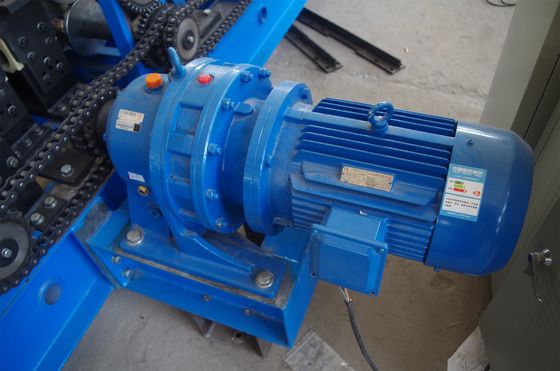

3 Main Motor power 4Kw with cycloidal reducer
4 Hydraulic station power 4Kw
5 Electrical control system PLC control system
7 Shaft diameter 65mm
8 Roller station 18 stations
10 Dimension 8800x1150x1510mm
11 Weight Approx 3.6T
12 Voltage 380V 3phase 50HZ or as the customer's requirements
13 Material of roller 45# forged steel plated with hard chrome, quenched
14 Material of cutting Cr12 mould steel with quenched treatment
15 Working time Can be 24 hours
16 Workers 1-2 only



3. Main Components of Gutter Roll Forming Machine



No Name Quantity
1 Decoiler 1set
2 Main Machine Feeding Device 1set
Roll Forming 1set
Hydraulic System 1set
3 Electric Control System 1set
4 Supporter 1set





4. After Sale Service FAQ



Q:What kind of warranty do Lebron-Machinery’s gutter machine provide?

A:Except for the consumables,the whole machine has one year limited warranty.



Q:How to acquire for service support?

A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services including: before-sale technical counseling, field installation, operate technical training, application solution training and troubleshooting support, etc. You can gain service support from our distributors in your region.



Q: After buying Lebron-Machinery’s equipment, is there technician in charge of supporting on site installation?

A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange experienced technicians to support for the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, LBM will authorize them to send experienced engineers to support for the installation and collaboration when the machine arrives. Except the contract made other agreement for the installation.



Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?

A: Lebron-Machinery will provide 7 days’ free field training. The training place can be in Lebron-Machinery company or in places designated by customer where installation take place, this can all be predetermined by clients in the contract.
