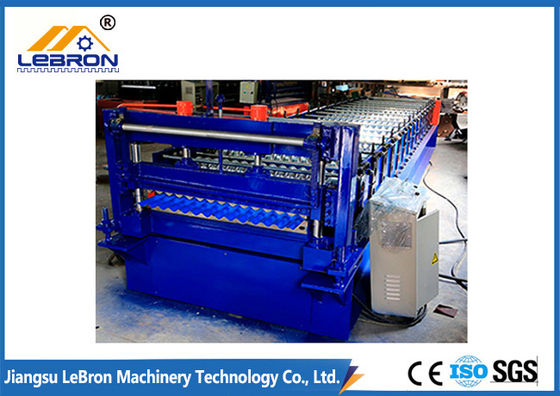

Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device

Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device
Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device

Large Image :  Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: LBM
Certification: ISO9001: 2008
Model Number: LBM-CSM-003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export sea worthy packing with each machine fixed and protected in the container
Delivery Time: 30-40days
Payment Terms: L/C, D/P, D/A, T/T, Western Union
Supply Ability: 25 Sets per Month

Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device

Description
Roller Station: 22 Stations Roller Material: No.45 Steel, Coated With Chromed Treatment
Cutter Materia: CR12 Mould Steel, With Quenched Treatment Weight: About 6000 Kgs
Main Motor Power:: 5.5kw Control: PLC System
High Light:

roofing corrugated sheet roll forming machine

,

corrugated roof sheet making machine

Hydraulic Cut Corrugated Sheet Roll Forming Machine Full Automatic Servo Guiding Device



1. Technical Parameters:



No. Item Specification
1 Can Formed Material PPGI,GI,AI
2 Equipment operation Automatic
3 Voltage 380V 60Hz 3Phase or as your requirement
4 Thickness of sheet (mm) 0.3-0.8mm
5 Material width(mm) As your requirement
6 Cover Width of the sheet after formed as your drawing
7 The size of the roll forming machine 6000mmx1600mmx1400mm
8 Speed 8-15m/min
9 Diameter of shaft 80mm
10 Weight of the Machine 5500KGS
11 Material of rollers C45 steel quenched and chromed
12 Motor brand Siemens or Guomao
13 PLC Siemens or Delta or Mitsubushi
14 Total power (kw) 9.5kw
15 Power of hydraulic system 5.5kw
16 Power of main molding core 4kw





2. Advantage:



- Characteristics of double - layer press tile machine

- double - layer press tile machine production of color steel tile appearance of beautiful, even paint patterns, high strength, durable.

- double - layer press tile machine components include feed into the platform, the pressure machine, computer control systems, hydraulic pumping station system, automatic molding after the cutting system.

- In order to meet the needs of our customers, the newly developed double - layer press tile machine can combine the two models perfectly, with reasonable structure, beautiful appearance, saving floor space, simple operation and suitable for customers with small construction area.

- Like the 840-900 double-layer pressure tile machine production roof, wall panel color steel tile press machine basic parameters: Dimensions: 63000 * 1200 * 1500mm, forming pass: 11, the machine weight: 3.9 tons, production Mode: Automatic length production, just one person can guarantee the production operation of the entire double - layer press tile machineof normal operation, production size: production size control in the 0.3-0.8mm or less, of course, can also customize the thick steel plate rolling equipment.123

- double - layer press tile machine is the metal plate of color steel plate by a number of pre-arranged roller roll cold rolling production of color steel tile pressure-type machine, which produces the use of color steel tile board is to build all kinds of plants, activities Room and so on the roof or the wall metal decoration tile, the popular spot stresses, is constructs the steel structure housing construction.

- General color steel tile machine table has the following major components, the first part is: color steel volume on the rack or hydraulic decoiler, ordinary color steel volume on the rack is manually single cantilever rack, is With the rotation of the machine roller driven on the rack on the color steel coil to achieve feeding, for 5 tons of the following coil, hydraulic decoiler is suitable for large tonnage coil feeding, is the use of hydraulic automatic Material program, you can set the feeding speed of open-book machine and press the rolling speed of the same machine in order to achieve the purpose of uniform feeding. The second part is the feed table, that is, there is a feed plate into the board, you can support the weight of the coil to help press the tile machine feed more smoothly. The third part is the pressure of the host, is rolling the color plate, the color plate rolling into our pre-set plate size specifications shape. The fourth part is part of the hydraulic pump station, control the production and shearing of tile machine. The fifth part is the cut part, according to the computer to set a good length, reach a certain length after the automatic plate. The sixth part is the computer control system part, the entire machine can automatically the good movement, relies on this computer control system in the programming procedure to control.





3. Our service



1). Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.



2). After-Sale Service

a. 12 months warranty is provided.

b. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.

c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.





4. Corruaged roof roll forming machine flow chart



New blue color corrugated roof sheet roll forming machine / corrugated roof roll forming machine





5. Picture



Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device 1

Main Power 5.5kW Corrugated Sheet Forming Machine PLC System Servo Guiding Device 2
