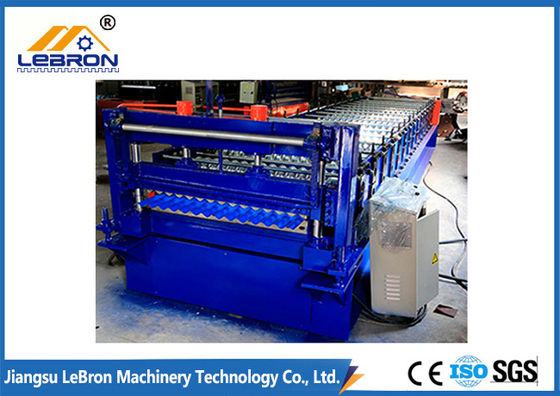

22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine

22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine
22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine 22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine 22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine 22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine

Large Image :  22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: LBM
Certification: ISO9001: 2008
Model Number: LBM-CSM-009
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Export sea worthy packing with each machine fixed and protected in the container
Delivery Time: 30-40days
Payment Terms: L/C, D/P, D/A, T/T, Western Union
Supply Ability: 25 Sets per Month

22 Stations Corrugated Sheet Roll Forming Machine , Full Automatic Corrugated Roofing Machine

Description
Roller Station: 22 Stations Roller Material: No.45 Steel, Coated With Chromed Treatment
Cutter Materia: CR12 Mould Steel, With Quenched Treatment Weight: About 6000 Kgs
Control:: PLC System Voltage:: 380V/50Hz/3ph
High Light:

corrugated roof roll forming machine

,

corrugated roof sheet making machine

PLC Control Corrugated Sheet Roll Forming Machine Full Automatic Hydraulic Cutting



1. Technical Data





Item NO



Description



Offered specification

1.1 Rolling speed 8-12m/min(not include cutting time)
1.2 Rolling thickness 0.5mm
1.3 Raw material Color painted coils, galvanized sheet
1.4 Main Motor 7.5KW
1.6 Dimension About 7500×1600×1200(mm)
1.7 Roller stations

About 20 stations



1.8 Roller material 45#forge steel, coated with chrome
1.9 Shaft diameter 76mm
1.10 Transmission By chain 1.2 inch
1.11 Material of chain 45# forged steel with frequency quenching, 12A
1.12 Material of cutting Cr12Mov with quench HRC58-62°
1.13 Tolerance 10m+-1.5mm
1.14 Hydraulic station 4kw
1.15 Control panel PLC:Delta or according to your requirement to adjust,Encoder:Omron,Electric parts:Schneider b





2. Machine list



No Name quantity
1 5 tons passive de-coiler 1 set
2 Feeding with guide 1 set
3 Main roll forming machine 1 set
4 Control box 1 unit
5 Hydraulic station 1 unit
6 Passive Out tables 2 units
7 Spare parts 1 package
8 Safety cover 1 set





3.Other components



3.1. Un-coiler

5 tons passive decoiler

Coil inner Diameter: 460-520mm

Max out diameter of the coil: 1500mm

Max Coil Width: 1250mm




3.2. Cutting

(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.

(2) Material of blade: CR12 with heat treatment

(3) Length measuring: Automatically

(4) The cutting thickness: 0.25- 0.8mm

(5) Hydraulic Station Power: 4 KW



3.3. Out tables

It adopts welded steel and supported roller to transmit the products.

Size:4000*1350*1000mm




3.4. Control Box



(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)

(2) length & quantity measurement automatically;

(3) length & quantity controlled by PLC

(4) Length inaccuracy can be amended easily.

(5) Control panel: Button-type switch and touch screen

(6) Unit of length: millimeter (switched on the control panel)



4. Our service



1). Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.



2). After-Sale Service

a. 12 months warranty is provided.

b. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.

c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.





6. Picture
