Product Details:
|
| Material: | Galvanized Steel Or Prepainted Steel Strips | Width: | 300mm Max |
|---|---|---|---|
| Thickness: | 0.6-1.2mm | Roll Stations: | 18 Stations |
| Forming Speed: | 0-12 M/min | Main Power: | 5.5 Kw |
| Hydraulic Power: | 3 Kw | Voltage: | 380V/3ph/50HZ |
| High Light: | rolling shutter slats roll forming machine,garage door roll forming machine |
||

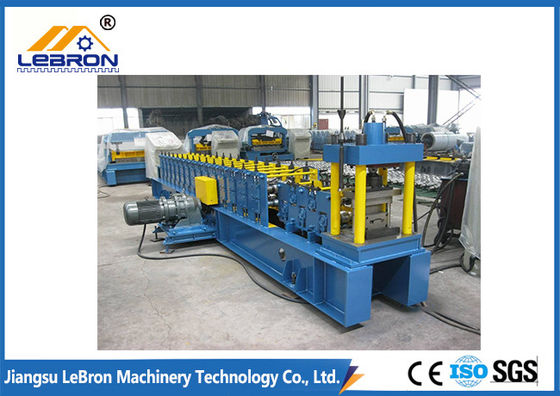

Galvanized Steel Door Shutter Roll Forming Machine Full Automatic Long Service
1. Description of Shutter Door Roll Forming Machine
A steel rolling shutter door slat roll forming machine has been designed and built because of the needs for the production of steel roller shutter doors. The slats can be made out of galvanized steel strips, prepainted steel strips and some occasions alloy aluminum strips as well. This roll forming machine is technically capable to produce roller shutter slats with any lengths available and effective widths customizable from metal with thickness 0.6-1.2mm (some customers request heavy duty rolling shutter slats up to 2mm thickness).
A steel rolling shutter slat roll forming machine consists a manual decoiler, a roll former, transmission system, a punching tool is optional for punching slots on some types of steel roller shutter slats, a cutting tool (both a hydraulic cutter and a fly-saw cutter is available), a PLC control cabinet, a hydraulic oil pump will be equipment for hydraulic cutting tool and runout tables.
2. Main technical parameters
| No. | Item | Description |
| 1 | Material | Galvanized Steel or Prepainted Steel strips |
| 2 | Material width | 300mm Max |
| 3 | Thickness of Material | 0.6-1.2mm |
| 4 | Roll Stations | 18 Stations |
| 5 | Forming Speed | 0-12 m/min |
| 6 | Material of Roller | 45# steel coated with hard chrome |
| 7 | Dia. Of Shafts | 70mm |
| 8 | Transmission | by chain-brackets |
| 9 | Main Power | 5.5 KW |
| 10 | Cutting | Hydraulic cutting |
| 11 | Hydraulic Power | 3KW |
| 12 | Material of Cutting Blade | Cr12 MOV Steel |
| 13 | Tolerance of Cutting Length | +/-2mm |
| 14 | Electricity | 380V/3ph/50HZ |
| 15 | Control system | Panasonic PLC, Omron encoder, Inverter |
| 16 | Size of Console | 700x1000mmx300mm |
3. Major Components
| No. | Name | Quantity |
| 1 | 5 tons Manual De-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | PLC Control Cabinet | 1 unit |
| 4 | Hydraulic Station | 1 unit |
| 5 | Receive Tables | 2 units |
4. FAQ
Q1. What is your advantage?
A1: We have over 10 years‘ experience in roll forming machines production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers specifications, using top brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address.we have rich experience in transporting.
Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, we will pick you up.
2). Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
5. Advantages:
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 3 years maintenance and whole life technical support
