|Main Power:||5.5KW||Hydraulic Power:||3KW|
|Suitale Thcikness:||0.8-1.2mm||Roller Station:||14 Stations|
1.2mm Shutter Door Roll Forming Machine,
5.5KW Shutter Door Roll Forming Machine,
Cycloidal reducer Shutter Door Roll Former

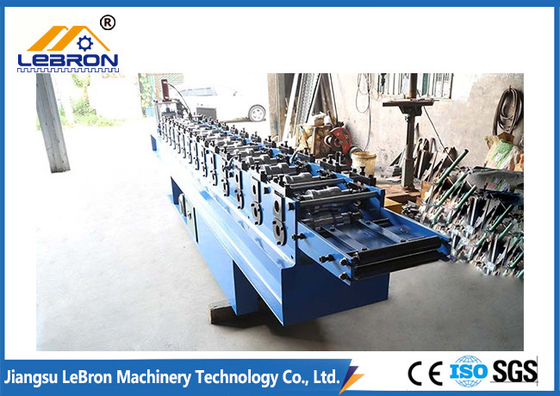

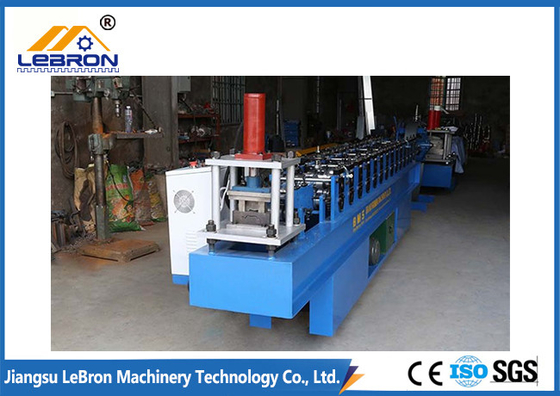

Easy Operate High Production Capacity Fully Automatic Shutter Door Roll Forming Machine
1. Description of shutter door roll forming machine:
Our Shutter Door Slat Roll Forming Machine is customized, we can design and produce a rolling shutter door slat roll forming machine according to your outline drawing. Here I am attaching a profile drawing of our rolling door for your reference, you can choose what you want and then tell me, and we will produce the machine according to the profile drawing you choose.
For the rolling door manufacturing machine, it has many parts:
1. Unwind the coil.
2. Feed the material to the punching machine (it is possible to make the shutter sliding cover have holes).
3. Roll forming parts, for our machine, the forming speed is 0-30m/min, adjustable. Usually, we will manufacture a shutter door forming machine with a gear drive, which will make the machine have strong moving power.
4. Punch. This part will be used with the cutting blade. When cutting, the machine will punch holes together.

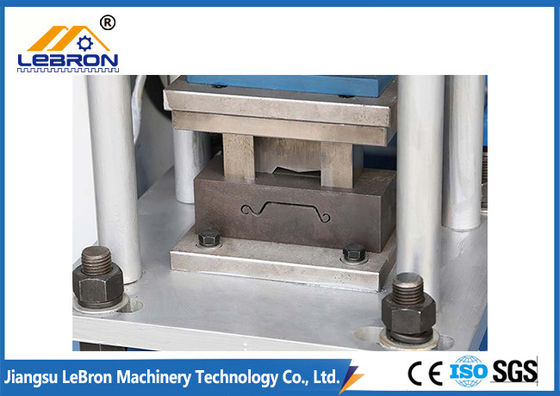

5. Cutting part. We have two cutters for you to choose from, one is a flying saw and the other is a hydraulic cutter.
2. Technical details of shutter door roll forming machine:
|1.||Suitable material||Color steel sheet, galvanized steel sheet, aluminum sheet|
|2.||Installation Dimension||12000X1700X1500 (L*W*H)|
|3.||Main motor power||5.5KW with Cycloidal reducer|
|4.||Hydraulic station power||3KW|
|5.||Hydraulic oil pump||40#|
|6.||Thickness of material||0.8mm~1.2mm|
|7.||Diameter of Shaft||Φ70mm|
|8.||Material expands width||760mm|
|9.||Electric tension||380V 3phase 50HZ or as the customer's requirements|
|10.||Material of roller||High grade 45# forged steel plated with hard chrome plating|
|12.||Processing speed||8-12m/min(glazed tile is 2-3m/min)|
|13.||Processing precision within||1.00mm (depending on design)|
|14.||Material of cutting blade||Cr12 mold steel with quenched treatment|
|15.||Kind of drive||1.0 inch chain|
|16.||Roller station||14 Rollers|
|17.||Roller material||high grade 45#steel; Cr12 quenching|
|18.||Leak frame load-bearing||4.6T|
3. Main components of shutter door roll forming machine
|Feeding Device||1 Set|
|Roll Forming Unit||1 Set|
|Post Cutting Unit||1 Set|
|Hydraulic Station||1 Set|
|Electric Control Cabinet||1 Set|
|Receiving Table||1 Set|
4. Our Advantages
1). We are a factory with over 12 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached International Inspection Standards;
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer with over 11 years of experience.
2. Q: If I am new in this field. How could I understand the machine very well?
A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.
3. Q: I have no Whatsapp or Skype, how could I contact with you
A: Send one email to me (firstname.lastname@example.org). Leave your contact information for me. I will contact you. It is free.
4. Q: How should I do if I would like to order my machine
A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then
5. Q: Can you use other brands of spare parts for me if I want?
A: Yes. We can.
