Product Details:
|
Main Power: | 5.5KW | Hydraulic Power: | 3KW |
---|---|---|---|
Suitale Thcikness: | 0.8-1.2mm | Roller Station: | 14 Stations |
Speed: | 12~15m/min | Weight: | About 4.6Tons |
High Light: | 3KW Shutter Door Slat Machine,Shutter Door Slat Machine Fully Automatic,Shutter Door Slat Machine 15m/min |

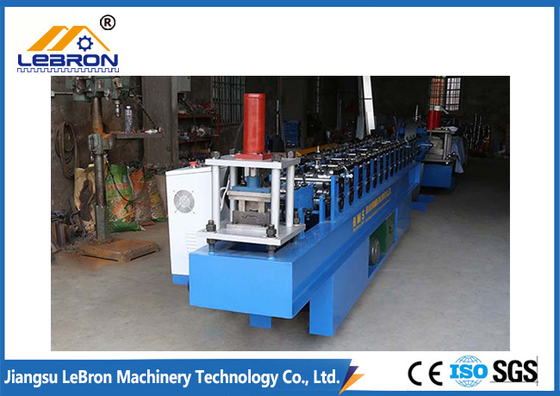

High Quality Fully Automatic Shutter Door Roll Forming Machine Shutter Door Slat Machine
1. Description of shutter door roll forming machine:
Our Shutter Door Slat Roll Forming Machine is customized, we can design and produce a rolling shutter door slat roll forming machine according to your outline drawing. Here I am attaching a profile drawing of our rolling door for your reference, you can choose what you want and then tell me, and we will produce the machine according to the profile drawing you choose.
For the rolling door manufacturing machine, it has many parts:
1. Unwind the coil.
2. Feed the material to the punching machine (it is possible to make the shutter sliding cover have holes).

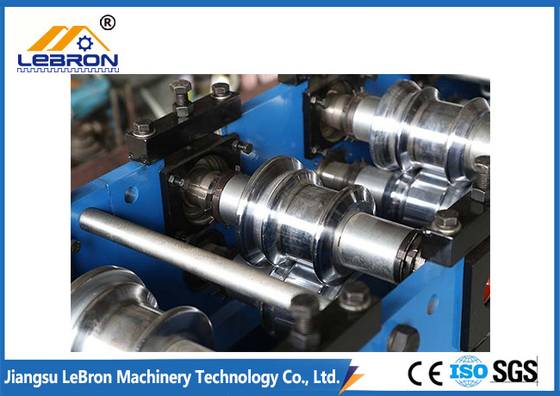

3. Roll forming parts, for our machine, the forming speed is 0-30m/min, adjustable. Usually, we will manufacture a shutter door forming machine with a gear drive, which will make the machine have strong moving power.
4. Punch. This part will be used with the cutting blade. When cutting, the machine will punch holes together.
5. Cutting part. We have two cutters for you to choose from, one is a flying saw and the other is a hydraulic cutter.
2. Technical details of shutter door roll forming machine:
No. | Item | Description |
1. | Suitable material | Color steel sheet, galvanized steel sheet, aluminum sheet |
2. | Installation Dimension | 12000X1700X1500 (L*W*H) |
3. | Main motor power | 5.5KW with Cycloidal reducer |
4. | Hydraulic station power | 3KW |
5. | Hydraulic oil pump | 40# |
6. | Thickness of material | 0.8mm~1.2mm |
7. | Diameter of Shaft | Φ70mm |
8. | Material expands width | 760mm |
9. | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
10. | Material of roller | High grade 45# forged steel plated with hard chrome plating |
11. | Controlling system | PLC |
12. | Processing speed | 8-12m/min(glazed tile is 2-3m/min) |
13. | Processing precision within | 1.00mm (depending on design) |
14. | Material of cutting blade | Cr12 mold steel with quenched treatment |
15. | Kind of drive | 1.0 inch chain |
16. | Roller station | 14 Rollers |
17. | Roller material | high grade 45#steel; Cr12 quenching |
18. | Leak frame load-bearing | 4.6T |
3. Main components of shutter door roll forming machine
Decoiler | 1 Set |
Feeding Device | 1 Set |

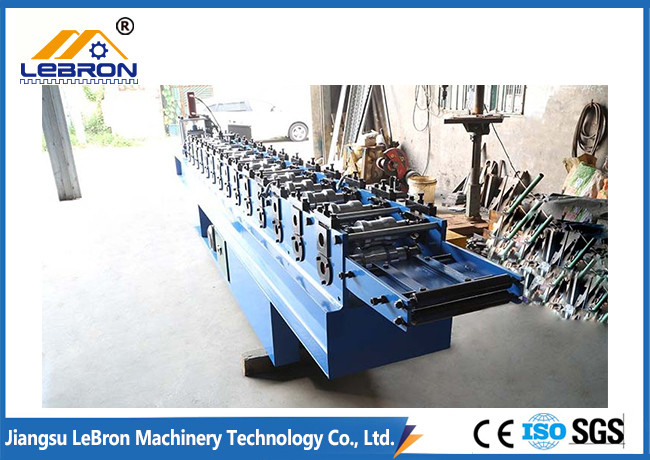

Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |

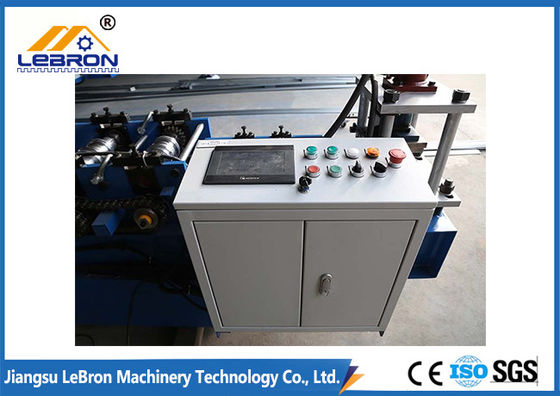

Electric Control Cabinet | 1 Set |
Receiving Table | 1 Set |
4. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
C. Training
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
5. FAQ:
Q1. What is your advantage?
A1: We have over 12 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.
Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top-brand components.
Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.
Q5. How do visit your company?
A5: 1). Fly to Wuxi airport, and we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
