High Speed Door Frame Roll Forming Machine Durable Fully Automatic

High Speed Door Frame Roll Forming Machine Durable Fully Automatic
High Speed Door Frame Roll Forming Machine Durable Fully Automatic
High Speed Door Frame Roll Forming Machine Durable Fully Automatic High Speed Door Frame Roll Forming Machine Durable Fully Automatic High Speed Door Frame Roll Forming Machine Durable Fully Automatic High Speed Door Frame Roll Forming Machine Durable Fully Automatic High Speed Door Frame Roll Forming Machine Durable Fully Automatic

Large Image :  High Speed Door Frame Roll Forming Machine Durable Fully Automatic

Product Details:
Place of Origin: Wuxi, Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008
Model Number: Door Frame Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD10000~20000 per Set
Packaging Details: Standard Export Packing
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 35 Sets per Month

High Speed Door Frame Roll Forming Machine Durable Fully Automatic

Description
Main Power: 7.5KW Size: 7.5*1.2*1.0m
Weight: Approx. 8tons Speed: 20-25m/min
Roller: 45# Steel, Coated With Hard Chrome Roller Station: 18 Stations
High Light:

Door Frame Roll Forming Machine Durable

,

Door Frame Roll Forming Machine 7.5*1.2*1.0m

,

18Stations Door Frame Roll Forming Machine

High Quality High Speed Durable Fully Automatic Door Frame Roll Forming Machine

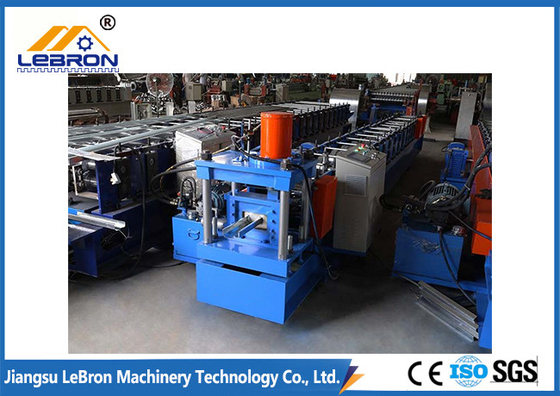

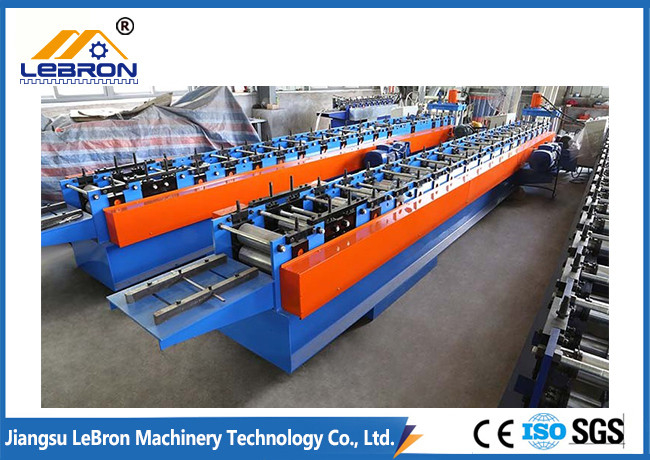

1. Description of Door Frame Roll Forming Machine



The door frame forming machine is a roll forming machine used in the steel plate cold forming industry. It can continuously shape the steel plate through an automatic press according to the customer's requirements and cut flies to a certain length.



The machine consists of a decoiler, feeding device, leveling device, cold-rolling forming, hydraulic cutting, receiving system, electrical control system, and hydraulic system. It has the advantages of high production efficiency, a high degree of automation, and low labor intensity.



Lebron-Machinery is manufacturing high-quality Door Frame Roll Forming Machines, and most of the machines are exported to: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.





2. Technical Parameters of Door Frame Roll Forming Machine



Weight About 6000kgs
Size About 7.5m*1.2m*1.0m (L x W x H)
Suitable Material Galvanized steel strip
Thickness 0.8~1.2mm
Coil width 240mm
Yield strength 235Mpa
Rollers station 18 Stations
Roller Shaft Diameter 75 mm
Roll Forming Speed 20-25m/min
Production Speed Approx.15m/min
Roller Material 45# steel, coated with chrome, quenched
Cutter material Cr12 mold steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main power: 7.5 KW
  Hydraulic power: 4 KW
Electric voltage 380V 50Hz 3 Phase (as per local requirement)





3. Main components of Door Frame Roll Forming Machine



Name

Quantity

Uncoiler

1set

Coil sheet guiding device

1set

Main roll forming system

1set

Punching device

1set

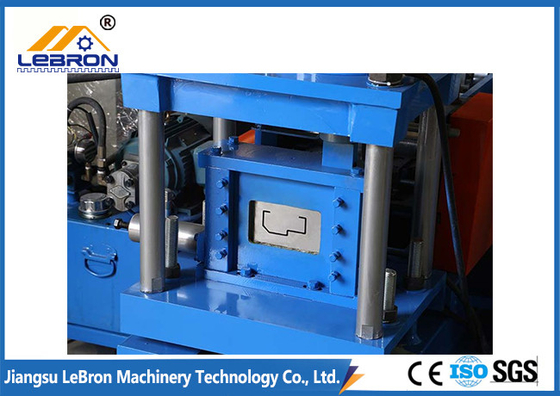

Cutting device

1set

Hydraulic station

1set

PLC control system

1set

Support table

1set





4. Our Service



1). Factory directly-sell price. This will surely save you costs.

2). From buying to installation to use, we have professional teams to help you. We can save you time, and make your operation easier.

3). Long-time Warranty. 18 months warranty. During this period, all the accessories are free. If the machinery has a nonrepairable quality problem, we accept the replacement or return.

4). Rich experience in Logistics and Shipping. We can not only guarantee the machine’s safe and full during transportation but also save lots of unnecessary costs for you.





5. FAQ



1. Q: Are you a manufacturer?

A: Yes, we are a manufacturer with over 11 years of experience.



2. Q: If I am new in this field. How could I understand the machine very well?

A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.



3. Q: I have no Whatsapp and Skype, how could I contact with you

A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.



4. Q: How should I do if I would like to order my machine

A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then



5. Q: Can you use other brands of spare parts for me if I want?

A: Yes. We can.
