Metal Glazed Tile Roll Forming Machine 5.5Kw Fully Automatic 6m / Min

Certification
China Jiangsu Lebron Machinery Technology Co., Ltd. certification
China Jiangsu Lebron Machinery Technology Co., Ltd. certification
Nice factory. Nice service!!!!

—— Nick

Lebron-Machinery is a very good company!

—— Kadasanwan

I'm Online Chat Now

Metal Glazed Tile Roll Forming Machine 5.5Kw Fully Automatic 6m / Min

Metal Glazed Tile Roll Forming Machine 5.5Kw Fully Automatic 6m / Min
Metal Glazed Tile Roll Forming Machine 5.5Kw Fully Automatic 6m / Min

Large Image :  Metal Glazed Tile Roll Forming Machine 5.5Kw Fully Automatic 6m / Min

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO Certificate
Model Number: YX25-162-810
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10000~30000 Per Set
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30-40 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Suitable Material: Color Steel Coil, Galvanized Steel Coil Thickness: 0.5-0.8mm
Roller Stations: 16 Stations Speed: Approx 6m/min
Main Power: 5.5Kw Hydraulic Power: 5.5Kw
High Light:

Metal Glazed Tile Roll Forming Machine

,

Glazed Tile Roll Forming Machine 5.5Kw

,

6m/min Glazed Tile Roll Forming Machine

Factory Directly Sale Fully Automatic Metal Glazed Tile Roll Forming Machine





1. Description of Glazed Tile Roll Forming Machine:



The glazed tile roll forming machine uses galvanized steel sheets or color steel sheets or aluminum sheets of different colors as raw materials. The glazed tile roll forming machine has no production length limit. Multiple sets of different data can be set on the computer controller according to the construction requirements. After pressing "Confirm", the equipment will automatically produce finished products of different lengths according to the data set by the computer. The surface of the finished product produced by the glazed tile roll forming machine is beautiful, smooth, and free of scratches, which is convenient for construction and installation.

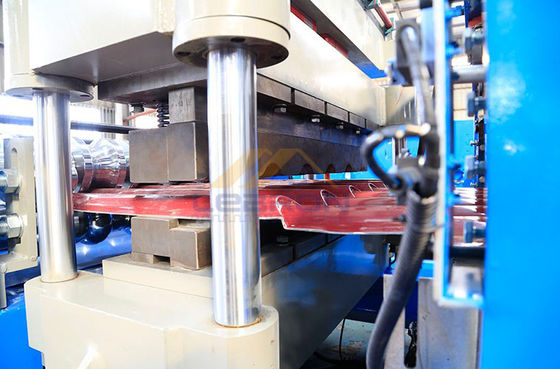

The production process of the glazed tile pressing machine is as follows: the colored steel sheet enters the roll forming unit, and then goes to the forming part after roll forming, and is pressed into equidistant sections, and the cutter is responsible for the fixed-length cutting. The control part includes a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.





2. Main Technical Parameters



No.

Main parameter of glazed tile machine

1.

Suitable to process

Color steel sheet, galvanized steel sheet, aluminum sheet

2.

Width of the plate

1000mm

3.

The thickness of the plate

0.5-0.8mm

4.

Decoiler

Manual, can load 5 tons of raw material

5.

Rollers for forming

16 Rows

6.

Diameter of the roller

80mm

7.

Rolling material

45#Steel Chrome Plated

8.

Main motor power

5.5kw

9.

Productivity

6-8m/min

10.

Cutting method

Hydraulic mold cutting

11.

Material of the cutting blade

Cr12

12.

Hydraulic cutting power

5.5kw

13.

Processing precision

Within 1.00mm

14.

Control system

Delta PLC control

16.

The main structure of the machine

300 H steel

17.

Weight

5T

18.

Dimensions

6.5*1.5*1.3m

19.

Voltage

380V 50Hz 3phases

20.

Certificate

CE/ISO9001

21.

Custom

According to the customer's requirement





3. Main Components



Name

Quantity

Uncoiler

1set

Coil sheet guiding device

1set

Main roll forming system

1set

Cutting device

1set

Hydraulic station

1set

PLC control system

1set

Support table

1set





4. Our Advantages



1). Factory directly-sell price. This will surely save you costs.

2). From buying to installation to use, we have professional teams to help you. We can save your time, and make your operation easier.

3). Long-time Warranty. 18 months warranty. During this period, all the accessories are free. If the machinery has a nonrepairable quality problem, we accept the replacement or return.

4). Rich experience in Logistics and Shipping. We can not only guarantee the machine’s safe and full during the transportation but also save lots of unnecessary costs for you.







5. Our Service



A. Foreign debugging

If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day



B. Guarantee period

The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).



C. Training

During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.





6. FAQ:



1). Q: Are you a manufacturer, or trading company?

A: We are a manufacturer, and we have built up our company since 2007.



2). Q: Where is your factory located?

A: Our factory address is: No. 551, Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China



3). Q: How can I get to your factory?

A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.



4). Q: If I will need to stay at your place for a few days, is that possible to book the hotel for me?

A: It’s always my pleasure, a hotel booking service is available.
