Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed

Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed
Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed
Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed

Large Image :  Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO Certificate
Model Number: YX25-162-810
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10000~30000 Per Set
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30-40 days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per Month

Durable Glazed Tile Roll Forming Machine 5.5Kw Automatic High Speed

Description
Suitable Material: Color Steel Coil, Galvanized Steel Coil Thickness: 0.5-0.8mm
Roller Stations: 16 Stations Speed: Approx 6m/min
Main Power: 5.5Kw Hydraulic Power: 5.5Kw
High Light:

Automatic Durable Glazed Tile Forming Machine

,

High Speed 5.5Kw Tile Forming Machine

,

Color Steel Coil Tile Forming Machine

Durable High-Speed High Capacity Glazed Tile Roll Forming Machine Automatic





1. Description of Glazed Tile Roll Forming Machine:

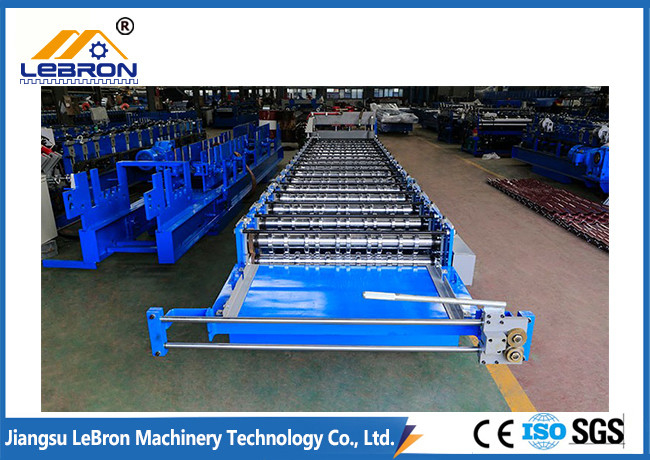

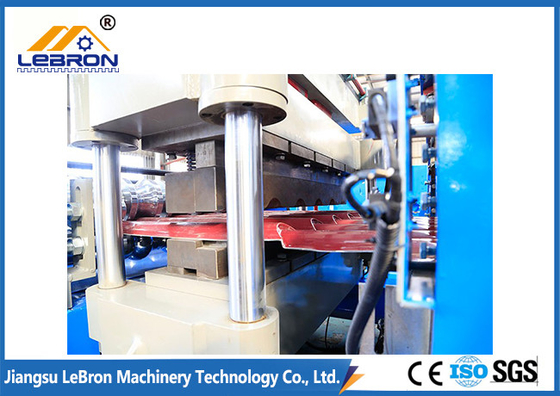

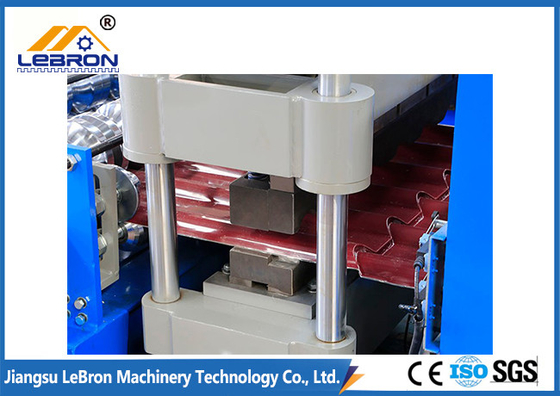

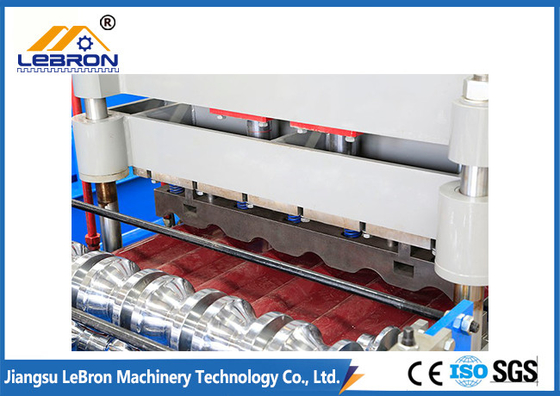

The glazed tile roll forming machine is divided into three parts: roller forming part, pressing part, and cutter part. The roll forming part of the glazed tile roll forming machine is driven by the motor, and the chain drives the rollers to rotate. The pressing part of the glazed tile roll forming machine is that the hydraulic cylinder drives the mold to move up and down, which can press the color steel into many sections, which are similar to glazed tiles. The cutter part is driven by a hydraulic cylinder to move the cutter up and down, which can cut off the colored steel tiles.



The production process of the glazed tile pressing machine is as follows: the colored steel sheet enters the roll forming unit, and then goes to the forming part after roll forming, and is pressed into equidistant sections, and the cutter is responsible for the fixed-length cutting. The control part includes a frequency converter drive motor, a hydraulic station motor, two hydraulic solenoid valves for pressing, and two hydraulic solenoid valves for cutters.



LBM factory is manufacturing high-quality storage rack roll forming machines and exports them to foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.





2. Main Technical Parameters



No. Main parameter of glazed tile machine
1. Suitable to process Color steel sheet, galvanized steel sheet, aluminum sheet
2. Width of the plate 1000mm
3. The thickness of the plate 0.5-0.8mm
4. Decoiler Manual, can load 5 tons of raw material
5. Rollers for forming 16 Rows
6. Diameter of the roller 80mm
7. Rolling material 45#Steel Chrome Plated
8. Main motor power 5.5kw
9. Productivity 6-8m/min
10. Cutting method Hydraulic mold cutting
11. Material of the cutting blade Cr12
12. Hydraulic cutting power 5.5kw
13. Processing precision Within 1.00mm
14. Control system Delta PLC control
16. Main structure of the machine 300 H steel
17. Weight 5T
18. Dimensions 6.5*1.5*1.3m
19. Voltage 380V 50Hz 3phases
20. Certificate CE/ISO9001
21. Custom According to the customer's requirement







3. Main Components



Name Quantity
Uncoiler 1set
Coil sheet guiding device 1set
Main roll forming system 1set
Cutting device 1set
Hydraulic station 1set
PLC control system 1set
Support table 1set





4. Our Service



Installation service



After the machine arrives at the destination, the seller will send the technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist in the installation work.



The installation period is around 5 days. The buyer should have been prepared for the steel sheet, and foundation position of the machine before the seller’s technician's departure.



The buyer should arrange the accommodation, food, and traffic in the destination



Training period: 2 days. (we can supply training on the operation spot if the buyer needs)



Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. The inspection standard is based on the technical standard signed by both parties and our company standard.





5. FAQ:



1). Q: Are you a manufacturer, or trading company?

A: We are a manufacturer, and we have built up our company since 2007.



2). Q: Where is your factory located?

A: Our factory address is: No. 551, Zhenze West Road, Huazhuang Street, Binhu District, Wuxi City, Jiangsu, China



3). Q: How can I get to your factory?

A: Our factory is near Shanghai Airport, we can pick you up at the airport. Or you can by plane direct to Wuxi airport. We can pick you up.



4). Q: If I will need to stay at your place for a few days, is that possible to book the hotel for me?

A: It’s always my pleasure, a hotel booking service is available.
