|Suitable Material:||Color Steel Coil, Galvanized Steel Coil||Thickness:||0.5-0.8mm|
|Roller Stations:||16 Stations||Speed:||Approx 6m/min|
|Main Power:||5.5Kw||Hydraulic Power:||5.5Kw|
0.6mm Glazed Tile Roll Forming Machine,
16Rows Glazed Tile Forming Machine,
galvanized steel Glazed Tile Forming Machine
High Quality Fully Automatic High Capacity Glazed Tile Roll Forming Machine
1. Description of Glazed Tile Roll Forming Machine:

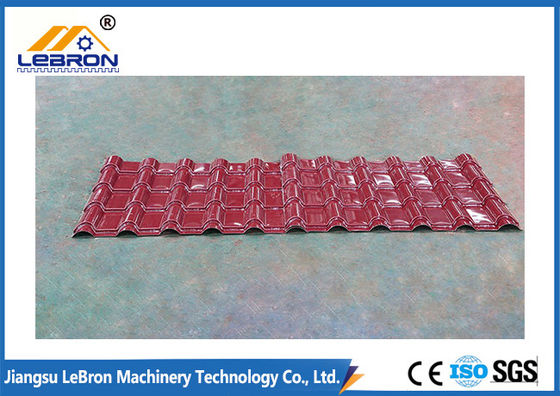

Color steel glazed tile is made by using a color steel plate as the primary plate, after several processes, such as Rolling, Molding, Cutting, etc. becomes the final plate. It’s colorful and elegant.
The glazed tile roll forming machine uses galvanized steel sheets or color steel sheets or aluminum sheets of different colors as raw materials. The glazed tile roll forming machine has no production length limit. Multiple sets of different data can be set on the computer controller according to the construction requirements. After pressing "Confirm", the equipment will automatically produce finished products of different lengths according to the data set by the computer.
The surface of the finished product produced by the glazed tile roll forming machine is beautiful, smooth, and free of scratches, which is convenient for construction and installation.
2. Main Technical Parameters
|No.||Main parameter of glazed tile machine|
|1.||Suitable to process||Color steel sheet, galvanized steel sheet, aluminum sheet|
|2.||Width of the plate||1000mm|
|3.||The thickness of the plate||0.5-0.8mm|
|4.||Decoiler||Manual, can load 5 tons of raw material|
|5.||Rollers for forming||16 Rows|
|6.||Diameter of the roller||80mm|
|7.||Rolling material||45#Steel Chrome Plated|
|8.||Main motor power||5.5kw|
|10.||Cutting method||Hydraulic mold cutting|
|11.||Material of the cutting blade||Cr12|
|12.||Hydraulic cutting power||5.5kw|
|13.||Processing precision||Within 1.00mm|
|14.||Control system||Delta PLC control|
|16.||Main structure of the machine||300 H steel|
|19.||Voltage||380V 50Hz 3phases|
|21.||Custom||According to the customer's requirement|
3. Main Components
|Coil sheet guiding device||1set|
|Main roll forming system||1set|
|PLC control system||1set|
4. Our Advantages
Our factory has more than 11 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
5. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, non-standard safety items, testing material and etc.
