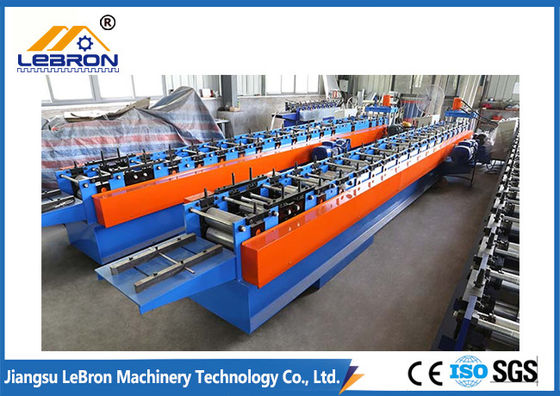

High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min

High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min
High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min
High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min

Large Image :  High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min

Product Details:
Place of Origin: Wuxi, Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008
Model Number: Door Frame Roll Forming Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD10000~20000 per Set
Packaging Details: Standard Export Packing
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 35 Sets per Month

High Capacity Steel Door Frame Roll Forming Machine 60HZ Mitsubishi 15m/Min

Description
Main Power: 7.5KW Size: 7.5*1.2*1.0m
Weight: Approx. 8tons Speed: 20-25m/min
Roller: 45# Steel, Coated With Hard Chrome Roller Station: 18 Stations
High Light:

60HZ Door Frame Roll Forming Machine

,

Mitsubishi Door Frame Roll Forming Machine

,

Door Frame Roll Forming Machine 15m/min

High-Speed High Capacity High-Quality Steel Door Frame Roll Forming Machine





1. Description of Door Frame Roll Forming Machine



The door frame forming machine is a roll forming machine used in the steel plate cold forming industry. It can continuously shape the steel plate through an automatic press according to the customer's requirements and cut flies to a certain length.



A door frame roll forming machine generally consists of a decoiler (a Hydraulic Decoiler is optional ), the main roll forming machine, a transmission system, a cutting tool, a hydraulic system, a hydraulic oil pump, a PLC control cabinet, and run-out tables



Lebron-Machinery is manufacturing high-quality door frame machines, and they are mostly exported to foreign countries, such as Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.





2. Technical Parameters of Door Frame Roll Forming Machine



Suitable material Galvanized steel strip
Main motor power 7.5KW with Cycloidal reducer
Hydraulic station power 4KW
Hydraulic oil 36#
Thickness of material 2-3mm
Diameter of the principal axis Φ70mm
Material expands width 200mm-420mm
Electric tension 380V 3phase 60HZ
Material of roller CGr15 bearing steel HR58-60
Rolling galvanization thickness 0.05mm
Processing speed 15-20m/min
Processing precision within 10m+/-1.00mm
Material of cutting blade Cr12 mold steel with quenched treatment
Kind of drive 1.5-inch chain link bearing model 6210
Roller station 18 Rollers
Dimension 8.5m*0.9m*1.3m
Weight 5.5Ton
Screen 5.7-inch Taida screen
PLC brand
Mitsubishi





4. Main components of Door Frame Roll Forming Machine



Name Quantity
Uncoiler 1set
Coil sheet guiding device 1set
Main roll forming system 1set
Punching device 1set
Cutting device 1set
Hydraulic station 1set
PLC control system 1set
Support table 1set





4. Our Advantages:



1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;



2). We have our own powerful research and development team



3). We have more than 15 technicians.



4). 5 engineers with more than 20 years of experience



5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;



6). Our machines have reached the International Inspection Standards;





5. FAQ



Q1. What is your advantage?

A1: We have over 12 years of experience in roll-forming machine production. Experienced engineers and workers will be helpful for quality control.


Q2. Do you have after-sales support?
A2: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.


Q3. Do you sell only standard machines?
A3: No, most of our machines are built according to customers' specifications, using top brand components.

Q4. Can you be responsible for transport?
A5: Yes, please tell me the destination port or address. We have rich experience in transporting.



Q5. How to visit your company?
A5: 1). Fly to Wuxi airport, and we will pick you up.
2). Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao railway station to Wuxi railway station, then we can pick you up.
