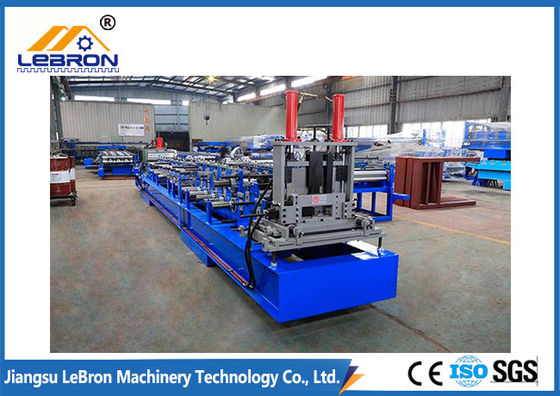

380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency

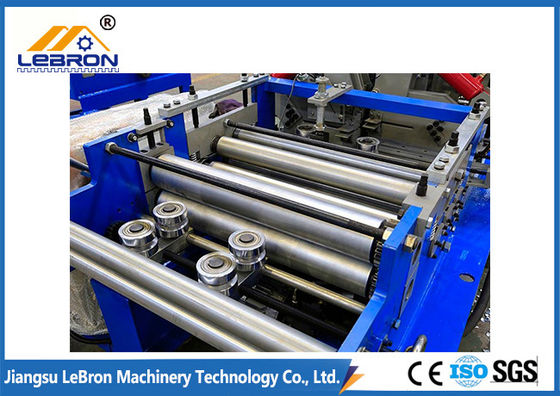

380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency
380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency

Large Image :  380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency

Product Details:
Place of Origin: Jiangsu, China
Brand Name: Lebron-Machinery
Certification: ISO 9001: 2008
Model Number: C80-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD22000~40000 per Set (Negotiate)
Packaging Details: Standard Export Packing with each machine tied and protected in the container
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month
Detailed Product Description
Main Power: 22kw Voltage: 380V/50Hz/3 Ph (Can Custom)
Hydraulic Power: 7.5Kw Thickness : 1.0~3.0mm
Roller station: 18 Stations PLC: Siemens
High Light:

PLC Siemens Purlin Roll Forming Machine

,

380V CZ Purlin Roll Forming Machine

,

CZ Purlin 7.5Kw Roll Forming Machine

Advanced C Purlin Roll Forming Machine CZ Purlin Roll Forming Machine High Efficiency





1. Description of CZ purlin roll forming machine



The fully automatic CZ steel integrated machine is also called C/Z interchangeable roll forming machine. It is a high-automatic purlin forming equipment controlled by a PLC computer, which can realize the interchangeable production of C/Z two types and various specifications of purlins in a short time. In the production process, the computer is automatically controlled, and there is no need to replace the forming roller when changing specifications, which changes the history of using C and Z to process two different types of purlins, saving a lot of investment cost and site space for users.



CZ interchangeable purlin roll forming machine product highlights:



1). The C-type purlins produced have good straightness, good compressive, and bending resistance

2). The Z-shaped purlins produced can be reversely lapped and installed, and the installation strength of the connection point is increased

3). The automatic electronic control system is equipped with an error reporting device to ensure the safety and stability of the production line

4). The drive adopts a deceleration motor plus frequency conversion control, speed control, fixed-length, accurate and reliable positioning

5). Two different profiles of CZ can be rolled, which saves the user's purchase cost and site space

6). The conversion of two types of profiles can be realized without changing the forming roller, with high speed and high efficiency.







2. Technical Parameters of CZ Purlin Roll Forming Machine



No. Item Description
1 Main Power 18.5 KW
2 Drive Model Chain
3 Machine Frame The machine frame and structural parts are made of national standard 350H steel, reducing the stress after welding
4 Roller Material No.45 Steel, Finishing-machining. Coated with hard chrome, Chrome thickness: 0.05mm. Quench heat-treatment
5 Roller Shafts No.45 Steel. Finishing-machining. Diameter: φ80 mm
6 Cutter Blade Cr12MoV steel. Finishing-machining. Quenched heat-treatment. HRC 58-62 degrees. Wire-electrode Cutting. Finish-grinding
7 Roller Station 20 Stations
8 Roll Forming Speed 15~20m/min
9 Suitable Material Galvanized Steel Coil, Cold Rolled Coil
10 Suitable Thickness 1.5-3.0mm
11 Out-put Length Controlled by PLC and according to the user’s demand
12 Structure Design The width changes by PLC control.
13 Machine Size About 8.0m*1.5m*1.0m
14 Machine Weight Around 12 Tons







3. Main components of C Purlin Roll Forming Machine



No Name Quantity Remarks
1 Decoiler 1set Up to customer
2 Main machine Pre-cutting device 1set Up to customer
Feeding device 1set
Roll forming system 1set
Post cutting device 1set
Hydraulic system 1set
3 Electric control system 1set
4 Supporter/Automatic Stacker 1set Up to customer







4. Our Advantages


1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;



2). We have our own powerful research and development team



3). We have more than 15 technicians.



4). 5 engineers with more than 20 years of experience



5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;



6). Our machines have reached the International Inspection Standards;







5. FAQ:



1. Q: Are you a manufacturer?

A: Yes, we are a manufacturer with over 11 years of experience.



2. Q: If I am new in this field. How could I understand the machine very well?

A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.



3. Q: I have no Whatsapp and Skype, how could I contact with you

A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.



4. Q: How should I do if I would like to order my machine

A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then



5. Q: Can you use other brands of spare parts for me if I want.

A: Yes. We can.





380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency 0





380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency 1





380V C Z Purlin Roll Forming Machine 7.5Kw PLC Siemens High Efficiency 2
