|Main Power:||5.5KW||Hydraulic Power:||4KW|
|Shaft:||No.45 Steel Dia 57mm||Roller Station:||14 Stations|
CSA Shutter Door Roll Forming Machine,
CSA rolling shutter bottom machine,
15m/min rolling shutter bottom machine

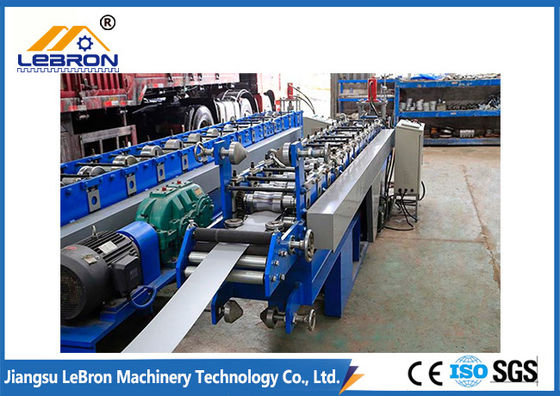

81 Model Shutter Door Roll Forming Machine Rolling Shutter Door Machine Full Automatic
1. Description of shutter door roll forming machine:
The rolling door manufacturing machine is a machine for manufacturing shutter slats. The thickness of our machine can be 0.4-0.6mm, and the shape will be designed according to your requirements.
The rolling door is separated from the wall by the function of the wall. The wall is composed of curtain panels, seat plates, guide rails, bearings, reels, boxes, control boxes, rolling door machines, stoppers, doors, manual quick release switches, and safety devices. It is generally installed on the wall partition part that is not convenient to use. For commercial facades, garages, shopping malls, hospitals, factories and mines, and other public places or residential rolling doors. Especially in large openings, where it is not convenient to install ground doors, it has a convenient and quick opening effect.
For the rolling door manufacturing machine, it has many parts:
1. Unwind the coil.
2. Feed the material to the punching machine (it is possible to make the shutter sliding cover have holes).
3. Roll forming parts, for our machine, the forming speed is 0-30m/min, adjustable. Usually, we will manufacture a shutter door forming machine with a gear drive, which will make the machine have strong moving power.
4. Punch. This part will be used with the cutting blade. When cutting, the machine will punch holes together.

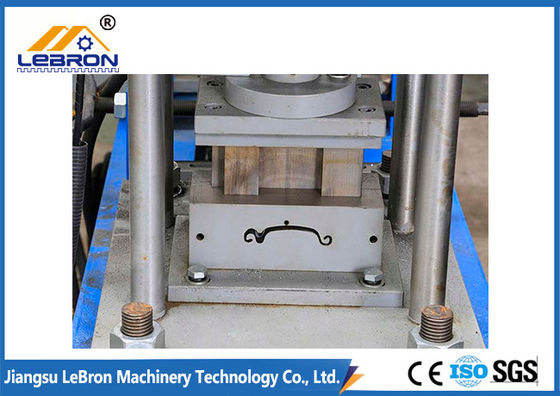

5. Cutting part. We have two cutters for you to choose from, one is a flying saw and the other is a hydraulic cutter.
2. Technical details of shutter door roll forming machine:
|Size||About 6m x 1.6m x 1.5m (length x width x height)|
|Color||Main color: light blue|
|Warning color: yellow|
|Suitable Raw Material|
|Material||Galvanized Steel Coils|
|Main Technical Parameters|
|Quantity of forming rollers stations||19|
|The diameter of forming rollers shafts||57mm|
|Roll Forming Speed||12-15m/min|
|Forming rollers material||No.45 steel, coated with a chromed treatment|
|Cutter material||Cr12 mold steel, with quenched treatment|
|Controlling system||PLC and Converter|
|Electric Power requirement||Main motor power: 7.5kw|
|Hydraulic unit motor power: 4kw|
|Electric voltage||According to customer’s requirement|
3. Main components of shutter door roll forming machine
|Feeding Device||1 Set|
|Roll Forming Unit||1 Set|
|Post Cutting Unit||1 Set|
|Hydraulic Station||1 Set|
|Electric Control Cabinet||1 Set|
|Receiving Table||1 Set|
