Welded Structural Steel 18mm C Purlin Roll Forming Machine

C80-300 Purlin Roll Forming Machine

C Purlin Roll Forming Machine Description

C Channel Roll Forming Machine is an equipment that produces C shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

C Purlin Roll Forming Machine Technical parameters

Decoiler: manual decoiler;

Capacity of decoiler: 5 TONS;

ID. of decoiler: 480-520mm;

OD. of decoiler: 1250mm;

Raw material: Q235 Galvanized steel coil or Cold rolled steel;

Yield strength of raw materials: 235MPA-345MPA;

Material thickness: 2-3.2mm;

Forming stations: 13-15 stations;

Rolling stands structure: conjoint type;

Machine Frame stand: Welded structural steel;

Thickmess of Fame Steel: 18mm;

Roll forming speed: 0-12m/min (not including punching and cutting);

Material of Roller: Gcr15 bearing steel;

Shaft Material: High grade 45# steel;

Diameter of shafts: 80mm;

Motor Power: 15 KW;

Hydraulic punching: Stop to punch;

Material of punching dies: Cr12MoV steel;

Cutter: hydraulic cutter and stop to cut;

Material of cutting dies: Cr12 steel;

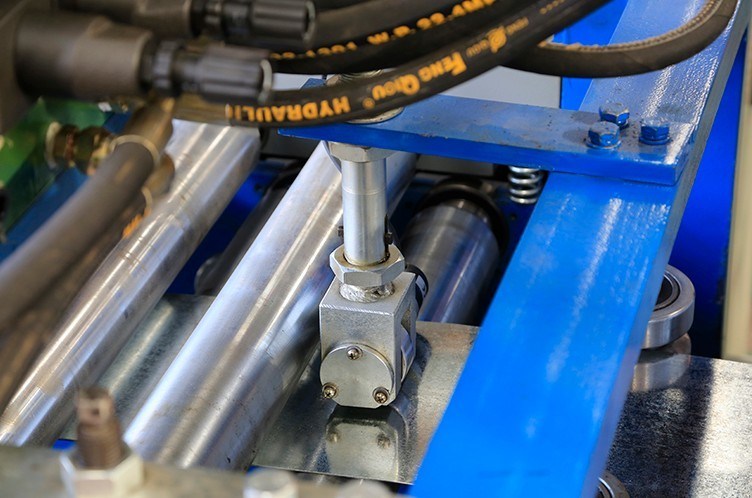

C Purlin Roll Forming Machine Pictures

After Sale Service

A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day

B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).

C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.

D. Lifetime services

Life time services to every customer.
