|Size:||Approx 4900mm*1000mm*1500mm||Weight:||About 4.5 Ton|
|Color:||Orange, Green, Black, Blue (can Be Custom)||Main Unit Power:||7.5Kw|
metal framing machine,
steel framing equipment

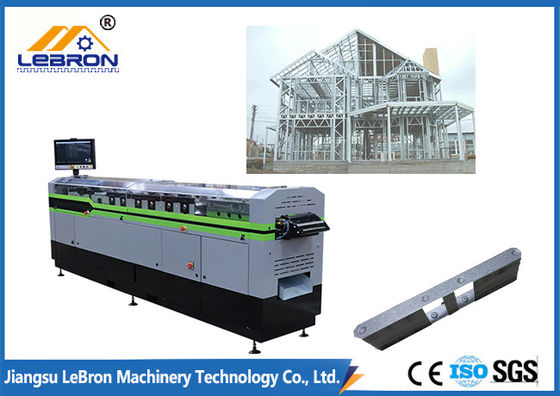

Full Automatic White Color 5m Light Gauge Steel Framing Machines Fast Speed Mode
1. Description of Light Gauge Steel Framing Machine
Light-gauge Steel framing systems consist of structural frames fabricated using cold formed steel sections. They can be used throughout a structure, including load-bearing exterior walls, non-load bearing interior walls, floor joists, curtain walls and roof trusses.
Because of the strength advantage produced by this bending process, steel framing material has a strength-to-weight ratio that is very favorable when compared to most other materials. The gauge or thickness of sheet steel ranges from 0.6mm to 1.8mm. By convention the higher the gauge numbers the thinner the steel. The more lightweight non load-bearing interior walls of residential structures are usually made of 0.6mm-gauge steel, while the exterior load-bearing steel studs are usually built from stronger 1.2mm or 1.6mm gauge steel.
To protect steel from rusting, steel is zinc galvanized. This protection is necessary both during storage, construction and while in use to avoid damage and loss of strength due to rusting. Because of that, this system is not a traditional building type in the Chinese circumstances.
Cold formed steel section are lightweight but high tensile and also galvanized (Z-275gsm / 550Mpa)
Their benefits include:
Fast and clean construction
Robust structural performance.
Enhanced thermal performance (reference required).
Sustainable construction (reference required).
2. Major Technical Parameters of Light Gauge Steel Framing Machine
|Major Technical Parameters of Light Gauge Steel Framing Machine|
|Suitable Material||G300-G550 zinc plated, aluminum-zinc plated coil|
|Thickness of Suitable Material||0.7-1.2mm|
|The maximum product capacity||2800m/h|
|Normal production capacity||300-700m/h|
|Main unit power||7.5Kw|
Dimple hole, chamfer cut, web notch, lip cut,
Service hole, swage, shear, bolt hole
|Weight||About 4.5 Ton|
|Main Color||Orange, Green, Black, Blue (can be custom)|
3. Major Characteristics of Light Gauge Steel Framing Machine
|1||Windows system touch panel. Quick importing NC instructions Via network or USB interface.|
|2||Visual work process monitoring|
|3||Vertex BD Software|
|4||German Bosch Rexroth hydraulic system. Quick loading and unloading mould design|
|5||Built-in maintenance free inkjet printer|
4. After-sale Service
We provide 24-hour online service for our customers. Phone: +86 15821208506
a.The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
Contact Person: Alfred
