Machine Size: | About 4.5m*1.2m*1.5m (L*W*H) | Weight: | About 6 Tons |
---|---|---|---|
Roller Stations: | 18 Stations | Roller Material: | Gcr15, Quench HRC58-62 Plated Chrome |
Forming Speed: | 12-15m/min; Adjustable | Motor Power: | 15Kw |
High Light: | steel door frame manufacturing machines,steel door frame making machines |

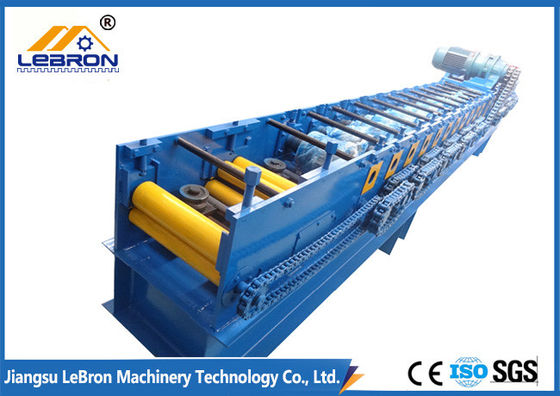

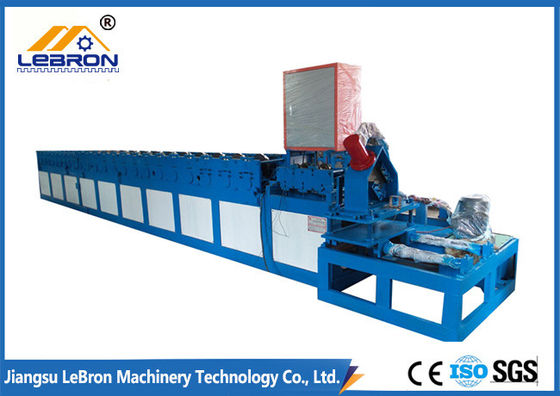

Servo Guiding Device Door Frame Cold Roll Forming Machine Automatic PLC Control
1. Technical parameters of door frame roll forming machine
No. | Item | Description |
1 | Suitable Plate Material | Thickness: 1.5-2.0mm, Galvanized steel or blank steel |
2 | Working Speed | 12-15 m/min |
3 | Roller quantity | 18 rollers |
4 | Material of Roller | Gcr15, Quench HRC58-62 Plated Chrome |
5 | Material of Shaft | 45# Advanced Steel (Dia: 76mm), thermal refining |
6 | Driven system | gear box drive |
7 | Main Power with reducer | 7.5KW |
8 | Cutting model: | Hydraulic Cutting Cr12mov |
9 | Material of Cutting blade | Cr12Mov, Quench HRC58-62 |
10 | Hydraulic Station Power | 7.5KW |
11 | Operation system | Controlled by industry computer-PLC system. |
12 | PLC brand | Siemens with Japan English and Chinese Language |
13 | Touch Screen | Siemens Japan |
14 | Encoder | Omron, Japan |
15 | Electric parts | Schneider |
2. Technical process:
The production line are mainly constituted by material entry frame,roll forming machine,automatic shearing mechanism ,hydraulic system,computer control system that adopts imported PLC,high precision length counting system and so on.
Work flow:
Uncoiling the sheet→sheet guiding→roll forming machine→step forming mechanism→measure length→automatic cutting→panel to the support
3. Control desk
This automation software technology should allow wider access to the source code so that can define and adjust their parameters according to needs of present and future production. | |
Voltage, Frequency, Phase | 380 V, 50 Hz, 3Phase |
Automatic length measurement | |
Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved | |
Length inaccuracy can be amended easily | |
Control panel | Button-type switch and touch screen |
Unit of length | millimeter (switched on the control panel) |
Language | English/and Chinese |
PLC brand | Panasonic |
Frequency converter brand | Yaskawa |
Touch screen | Taiwan Weinview |
quantity | 1 |
3. Packaging & Shipping
Packaging :
1. Tighten to container with steel wire rope and welded machine with container by angel iron
2. Main forming machine and un-coiler is naked (If you need we can also packed with water-proof plastic)
3. PLC contral system and motor pump are packed with water proof paper
Shipping :
1. One 20" container
2. One 40"container
4. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
5. Our service
Door frame roll forming machine Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
6. Picture
