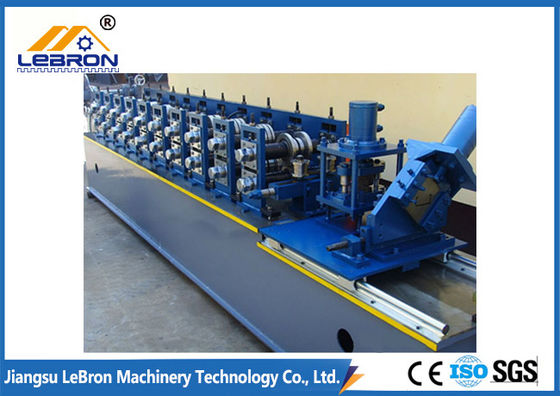

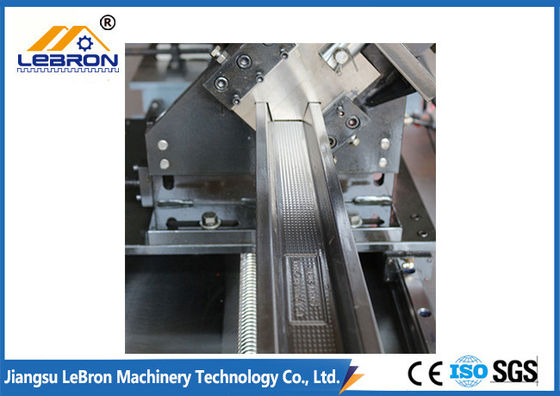

PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power

PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power
PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power
PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power

Large Image :  PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: LBM
Certification: ISO 9001: 2008
Model Number: LBM-DFM-005
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30-40days
Payment Terms: L/C, D/A, D/P, T/T, Western Union,, MoneyGram
Supply Ability: 25 Sets per Month

PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power

Description
Weight: About 6 Tons Roller Stations: 18 Stations
Roller Material: Gcr15, Quench HRC58-62 Plated Chrome Shaft Material: 45# Steel, Thermal Refining
Forming Speed: 12-15m/min; Adjustable Motor Power: 15Kw
High Light:

steel door frame roll forming machine

,

steel door frame making machines

Hydraulic Cut Door Frame Cold Roll Forming Machine Automatic Control Speed 12-15m/Min





1. Main parameters



No Name Description Mark
1. Machine name Hydraulic Cut Door Frame Cold Roll Forming Machine Automatic Control Speed 12-15m/Min
2. Roller stations 15
3. Diameter of shaft 75mm
4. Cutter type hydraulic automatic rtype
5. roller material 45#steel with 0.05mm chrome
6. Blade material CR12 steel
7. Delivery time 35days





2. FAQ



1. Q: Are you manufacturer?

A:Yes, we are manufacture with 21 years experience.



2. Q: How should I do if I would like to order my machine

A: Send me your design drawing if you have.

Or tell me your design idea. I arrange my engineer to drawing it for your confirmation.



3. Q: What details of the machine you should get from me.

A: I will confirm all details with you, such as the voltage in your city.



4. Q: I am new in this field. How could i understand the machine very well

A: Why not contact me whatsapp: 008613131749193 I promise you that you will be professional after you get from me. It is true thing.



5. Q: I receive a lot of quotations, they are big range, How could i choose?

A: I have many easy ways to solve it. Fox example, I can teach you how to find the Traders out. Just contact me. It is free for contacting with me.



6. Q: Can you give me one suggestion for ordering the machine.

A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.



7. Q: I have not whatsapp and skype, how could I contact with you

A: Send me one inquiry in the end of this page. Leave your contact information for me. I will contact you.It is free.



3. Main components of door frame roll forming machine



Manual Decoiler Max Width: 1250mm
Inner Diameter: 500mm
Outer Diameter: 1200mm
Max Weight Capacity: 5T

Roll Forming Raw Material: Colored steel or galvanized steel
Material Thickness: 1.5-2mm
Working Speed: 12-15m/min; Adjustable
Rollers: 18 rollers ( based on drawing )
Material for Rollers: GCr15, polished, quenched HRC55-60
Motor Power: 15 Kw
Roller Diameter: 76mm
Transmission Type: Chain Transmission
Appearance Size: About 4500mm*1200mm * 1500mm
Total Weight: About 6T

Hydraulic Cutting Cutting Type: Hydraulic, automatic cutting
Blade Material: Cr12 with polished, quenched HRC 60-62
Power: 3KW

Control System Electrical Control: PLC Frequency Control System,touch screen
Voltage: 380V/50Hz/3Ph(or custom)
Length Error: ±1mm

Output Table It is simple and used to load finished product
Length: 4m ( or custom)





4. Door frame roll forming machine layout



PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power 0





5. Door frame sketch



PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power 1





6. Our service



Door frame roll forming machine Install and Training:



If buyers come to our factory to inspect, the training to install and operate is provided face to face.

If not, manual and video is provided to show how to install and operate.



After-sale Service:



We provide 12-hour online service for our customers. Phone: +86 15821208506

a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.

When technique men go to the buyer's place to debug the machines, the buyer should pay the

expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.

b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.





7. Delivery



PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power 2

PLC Control Steel Door Frame Machinery 32Mpa Yield Strength 7.5kW Main Motor Power 3
