Product Details:
|
Weight: | About 3500 Kgs | Size: | About 6m*1.6m*1.5m |
---|---|---|---|
Forming Rollers Material: | No.45 Steel, Coated With Chromed Treatment | Controlling System: | PLC And Converter |
Main Motor Power: | 3Kw | Warranty Period: | 18 Months |
High Light: | rolling shutter slats roll forming machine,garage door roll forming machine |

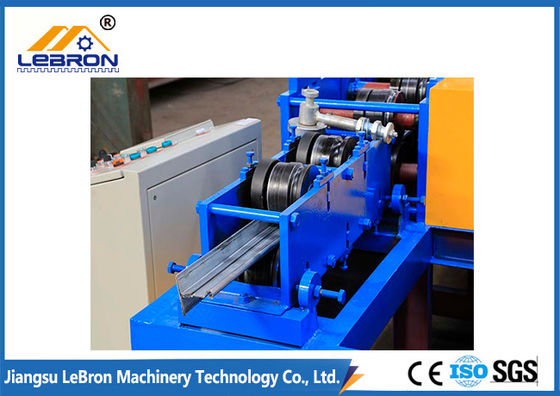

High hydraulic cut Shutter Door Roll Forming Machine full automatic made in China
1. Description of door shutter roll forming machine:
For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.4mm, the shape will be design by your demand.
LBM is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.
2. Technical details of door shutter roll forming machine:
Machine Specifications | |
Weight | About 3500kgs |
Size | About 6m x 1.6m x 1.5m (length x width x height) |
Color | Main color: blue |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.3-0.6mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 12-14 |
Diameter of forming rollers shafts | 60mm |
Roll Forming Speed | 15-20m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 3kw |
Hydraulic unit motor power: 3kw | |
Electric voltage | According to customer’s requirement |
3. Main components of door shutter roll forming machine
Decoiler | 1 Set |
Guiding Equipment | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
PLC Control System | 1 Set |
Reveiving Table | 1 Set |
4. Production Flows:
Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)
5. Advantages:
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 22 sets advanced CNC production lines on site
· Passionate Team
· Installation engineers can reach your factory within 6 days
· 3 years maintenance and whole life technical support
6. Application:
This machine is widely used in the production of the door shutters.
