PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china

PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china
PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china

Large Image :  PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china

Product Details:
Place of Origin: CHINA
Brand Name: LBM
Certification: certificate of origin
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 30-40
Payment Terms: L/C, D/A, D/P, T/T, Western Union

PLC Control Automatic Door Shutter Roll Forming Machine 2018 New type made in china

Description
Material: CR12 Mold Steel, With Quenched Treatmen Color: Blue
Roller Stations: 16
High Light:

rolling shutter slats roll forming machine

,

garage door roll forming machine

1. Description of door shutter roll forming machine:



For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.4mm, the shape will be design by your demand.



LBM is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.



Grey color high hydraulic cut type door shutter roll forming machine full automatic 2018 new design





2. Technical details of door shutter roll forming machine:





Machine Specifications
Weight About 3500kgs
Size About 6m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.6mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement







3. Main components of door shutter roll forming machine

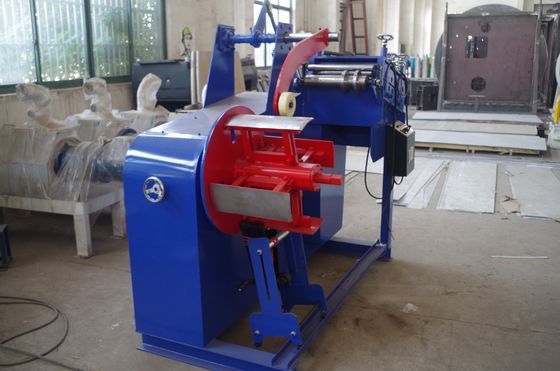

Decoiler 1 Set
Guiding Equipment 1 Set

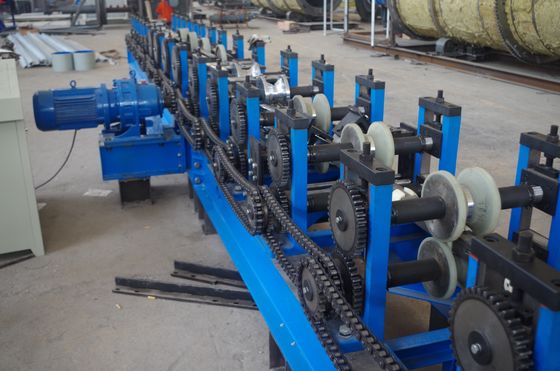

Roll Forming Unit 1 Set
Post Cutting Unit 1 Set
Hydraulic Station 1 Set
PLC Control System 1 Set
Reveiving Table 1 Set





Grey color high hydraulic cut type door shutter roll forming machine full automatic 2018 new design



4. Production Flows:



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)





5. Advantages:



· Germany COPRA software design



· 5 engineers with more than 20 years experience



· 30 professional technician



· 22 sets advanced CNC production lines on site



· Passionate Team



· Installation engineers can reach your factory within 6 days



· 3 years maintenance and whole life technical support





6. Application:



This machine is widely used in the production of the door shutters.



Grey color high hydraulic cut type door shutter roll forming machine full automatic 2018 new design
