|Size:||About 10 Tons||Weight:||About 10 Tons|
|Roller Shaft Diameter:||80mm||Roll Forming Speed:||12-24m/min|
|Cutter Material:||Cr12 Steel With Hard Chrome, Quenched||Main Power:||11Kw|
c&z purlin forming machine,
z purlin making machine
1. Description of C purlin roll forming machine:
C,Z,U shape purlin. Uses the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
LBM factory is manufacturing high quality C shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.
|1.||Configurations||Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.|
|2.||Control System||PLC Inverter Encoder Touch Screen|
|3.||Main Frame||400mm H-Beam|
|4.||Total Power||22 kw|
|5.||Power Supply||380V, 50Hz, 3-Phase|
|7.||Roll Station||18 stands|
|8.||Roller Shaft Diameter||80mm|
|12.||Cutter Standard||GCr12 steel with hard chrome, quenched|
|13.||Roller Standard||Gcr15# steel with hard chrome, quenched|
|14.||Overall Size||About 8500×1000×1400mm|
|15.||Total Weight||About 10T|
According to customer's requirements

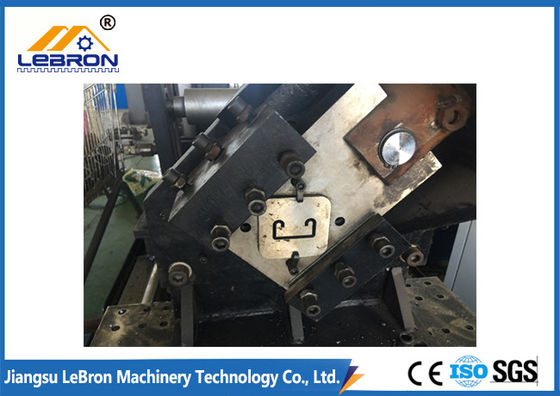

1). Cutting Sysytem
Material Of the Cutting: Cr12Mov with quench heat treatment. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system. Easy quick change C size without change moulds.
2). Roller System
Material of the Roller: High grade Gcr15 forged steel
Roller station: 18 rows
Thickness of feeding material: 1.5-3.0mm
3). Computer Control Cabinet
Programmable setting of profile length and quantity. Computed mode has two modes: automatic and manual one.
Language: English, Chinese, Spanish and Russia
The system is easy to operate and use.
Note: Through this motor to replace the different models of production size range of 80-300mm. Set the size you need, it will change automaticly.
4). Hydraulic System
Hydraulic Oil: 46# hydraulic oil
Working pressure: 12-16 Mpa adjustable
Solenoid value: 3 groups
Color: Bule (or as customer's requirement)
5). Manual Uncoiler
Loading Capacity: 5 Ton
Inner Diameter: 500-508mm
Steel Coil Width: 600mm
6). Receiving Table:
Main framework adopts welded steel and supported roller , used or transmit and collect the finished products
