Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft

Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft
Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft

Large Image :  Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft

Product Details:
Place of Origin: China
Brand Name: LBM
Certification: ISO 9001:2008
Model Number: LBM-CPR-MODEL 01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: 30-40
Payment Terms: L/C, D/A, D/P, T/T, Western Union

Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft

Description
Size: About 8.5m*1.0m×1.4m Rollers Station: 18 Stands
Roller Shaft Diameter: 80mm Roll Forming Speed: 12-24m/min
Roller Material: GCr15 Steel With Hard Chrome, Quenched Cutter Material: Cr12 Steel With Hard Chrome, Quenched
Highlight:

c channel roll forming machine

,

z purlin making machine

2018 New Type Automatic CNC Control High Speed C Purlin Roll Forming Machine at factory direct sell price



1. Description of C purlin roll forming machine:



C,Z,U shape purlin. Uses the steel strip as the raw material, by the processes such as Leveling, Rolling, Punching, standard length Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.



LBM factory is manufacturing high quality C shape purlin roll forming machines, and exported to the foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.



2.Technical parameters of c purlin roll forming machine

1. Configurations Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
2. Control System PLC Inverter Encoder Touch Screen
3. Main Frame 400mm H-Beam
4. Total Power 22 kw
5. Power Supply 380V, 50Hz, 3-Phase
6. Forming Speed 12-24m/min
7. Roll Station 18 stands
8. Roller Shaft Diameter 80mm
9. Effective Width 80-300mm
10. Feeding Thickness 1.5-3.0mm
11. Backboard Thickness 20mm
12. Cutter Standard GCr12 steel with hard chrome, quenched
13. Roller Standard Gcr15# steel with hard chrome, quenched
14. Overall Size About 8500×1000×1400mm
15. Total Weight About 10T
16. Custom

According to customer's requirements



2. C purlin roll forming machine



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 0















Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 1



3. C purlin roll forming machine flow charts:

Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 2



4. Detailed Technology

1). Cutting Sysytem



Material Of the Cutting: Cr12Mov with quench heat treatment. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system. Easy quick change C size without change moulds.



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 3



2). Roller System



Material of the Roller: High grade Gcr15 forged steel



Roller station: 18 rows



Thickness of feeding material: 1.5-3.0mm



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 4





Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 5





3). Computer Control Cabinet



Programmable setting of profile length and quantity. Computed mode has two modes: automatic and manual one.



Language: English, Chinese, Spanish and Russia



The system is easy to operate and use.



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 6



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 7



Note: Through this motor to replace the different models of production size range of 80-300mm. Set the size you need, it will change automaticly.





4). Hydraulic System



Power:  22kw



Hydraulic Oil: 46# hydraulic oil



Working pressure: 12-16 Mpa adjustable



Solenoid value: 3 groups



Color: Bule (or as customer's requirement)



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 8





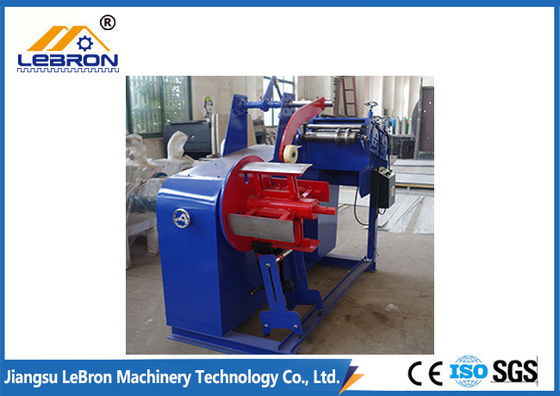

5). Manual Uncoiler



Loading Capacity: 5 Ton



Inner Diameter: 500-508mm



Steel Coil Width: 600mm



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 9







6). Receiving Table:



Main framework adopts welded steel and supported roller , used or transmit and collect the finished products



Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 10





6. LBM International:

Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 11





Easy Operation C Z Purlin Roll Forming Machine , C Channel Rollers 80mm Roller Shaft 12
