8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System

8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System
8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System 8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System 8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System

Large Image :  8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LBM
Certification: ISO 9001: 2008
Model Number: LBM-CPM-Model 03
Suitable material: Steel coil, sheet and strip
Material thickness: 0.4-1.5mm
Cover width: 100-300mm
Forming stand: 18
Forming speed: 12-15m/min
Cutting type: Roll-formed and length-set cutting
Main motor power: 22Kw
Control system: Mitsubishi PLC and converter
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Delivery Time: 30-40
Payment Terms: L/C, D/A, D/P, T/T, Western Union

8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System

Description
High Light:

c&z purlin forming machine

,

z purlin making machine

PLC system 8 tons C purlin roll forming machine / steel channel roll forming machine





1. Description of c purlin roll forming machine



This c purlin roll forming machine is for steel sheet cold-form industries. It can form the steel sheet according to customer’s requirement continuously, automatically cut to length. The equipment adopts PLC control, AC frequency and adjusting the speed technology. And it has many advantages, just like high forming speed, low noise, stable transmission, easy operation, good appearance and so on.





2. Main technical parameters of c purlin roll forming machine



Main Technical Parameters
Item Parameters Notes





Suitable Material







Type Steel Sheet
Thickness(mm) 0.4--1.5
Yield stress 235Mpa
Product Specifications Cover width 100~300 Detail as the client's drawing
Length Any Length





Power Requirement

Type 380V/3PH/50HZ
Main Motor Power(KW) 22 Depend on actual design

Hydraulic Power(KW) 7.5 Depend on actual design
Forming Speed(m/min) 12-15 Not include the time of punching and cutting
Forming Stand 18 Depend on actual design
Type of Cutting Roll-formed and length-set cutting
Control System Mitsubishi PLC and converter
Total Weight(T) 8 Depend on actual design





3. C purlin roll forming machine



8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System 0





4. Main components of channel roll forming machine



Roll forming machine 1 set
Hydraulic cutter 1 set
Electrical control system 1 set
Hydraulic system 1 set
Normal run out table 3 PC 1m*1m

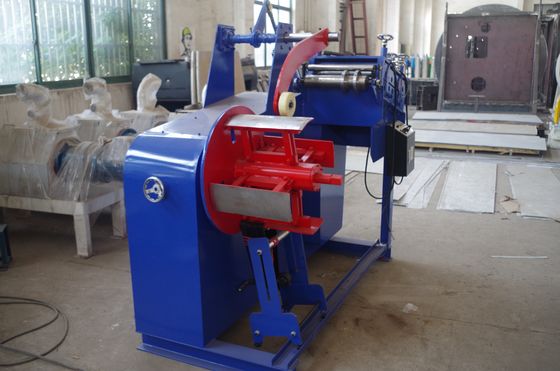

Manual de-coiler 1 set Max. loading 5 T





5. C purlin roll forming machine flow chart



8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System 1







6. Our service



1). Presale Service

We assist customers in well understanding the product information like features, functions and applications and so on. As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.



2). After-Sale Service

a. 18 months warranty is provided.



b. Customers can send photos or samples for our confirmation once the parts are damaged within the  warranty period. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.



c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks.



8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System 2





7. Delivery



8 Tons C Z Purlin Roll Forming Machine / Steel C Channel Bending Machine PLC System 3
