Product Details:
|
Weight: | About 5000 Kgs | Quantity Of Forming Rollers Stations: | 20-22 Rollers |
---|---|---|---|
Roll Forming Speed: | 8-12m/min | Cutting model:: | Hydraulic Mould Cutting |
Controlling System:: | PLC And Converter | Motor Of Roll Forming Machine: | 5.5 Kw |
High Light: | gutter downspout machine,downspout elbow machine |

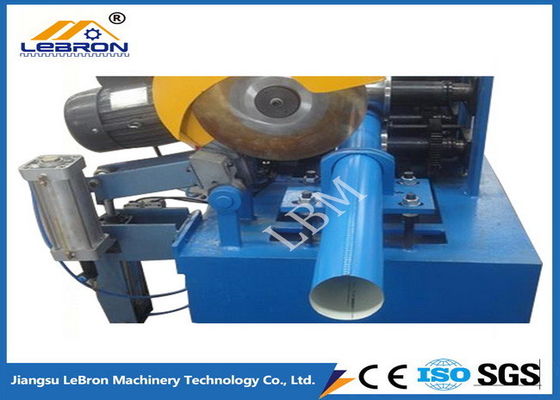

1. Description of downspout roll forming machine:
Metal downspout is made by using the color steel or GGPI coils roll-pressing and end-closing, then use the special equipment hit-to-bend and necking. Metal drainage system has the excellent weather fastness. It has the advantages such as simple design, easy installation, safe and durable, elegant. It is widely used in the modern villas and multiple raises buildings. LBM is producing the high quality downspout roll forming machines and export to India, Bangladesh, Vietnam, Turkey, etc.
2. Downspout roll forming machine technical details:
Machine Specifications | |
Weight | About 5000kgs |
Size | About 11m x 1.2m x 1m (L x W x H) |
Color | Main color: blue |
Warning color: yellow | |
Suitable Raw Material | |
Material | Galvanized Steel Coils |
Thickness | 0.5-0.8mm |
Coil width | 325mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 20-22 |
Diameter of forming rollers shafts | 60mm |
Roll Forming Speed | 8-12m/min |
Forming rollers material | No.45 steel, coated with chromed treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Motor of roll forming machine: 5.5kw |
Motor of sawing cutter: 3kw | |
Motor of elbow machine: 1.5kw | |
Electric voltage | According to customer’s requirement |
3. Production Flow:
5. Mian componets of downspout roll forming machine:
Decoiler | 1set |
Guiding Equipment | 1set |
Roll Forming Equipment | 1set |
Post Cut Equipment | 1set |
Hydraulic Station | 1set |
PLC Control System | 1set |
Supporter Table |
1set |
6. Our Advantages:
1). Germany COPRA software design
2). 5 engineers with more than 20 years experience
3). 30 professional technician
4). 22 sets advanced CNC production lines on site
5). Installation engineers can reach your factory within 6 days
6). 3 years maintenance and whole life technical support
8. Our service
Install and Training:
If buyers come to our factory to inspect, the training to install and operate is provided face to face.
If not, manual and video is provided to show how to install and operate.
After-sale Service:
We provide 12-hour online service for our customers. Phone: +86 15821208506
a .The seller will debug the machines freely in China, and the traffic expense in China of the technique people will be paid by the seller.
When technique men go to the buyer's place to debug the machines, the buyer should pay the
expense of accommodation, and round-trip tickets for the seller’s men. and pay the technician USD60 per day.
b. If the buyer sends people to receive the training of the operation given by the seller, during the training period, the seller should pay the expense of accommodation, and traffic for the buyer's men.
