glazed roof tile roll forming machine,
roof tile manufacturing machine

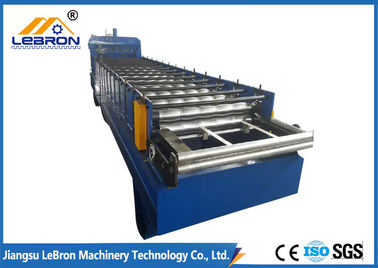

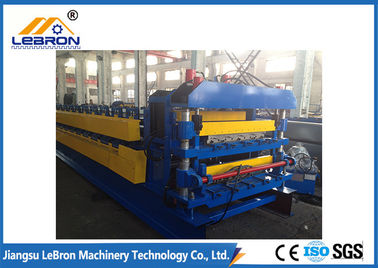

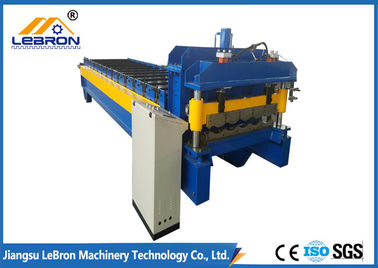

Service long time2018 new type color steel glazed tile roll forming machine PLC control automatic made in china Blue
1. Description of glazed tile roll forming machine
Color steel glazed tile is made by using color steel plate as the primary plate, by several processes, such as Rolling, Molding, Cutting, etc. become the final plate.
LBM factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.
2. Main parameter of glazed tile roll forming machine
|NO||Main parameter of glazed tile machine|
|1.||Suitable material||Color steel sheet ,galvanized steel sheet, aluminium sheet|
|2.||Width of the plate||1200/1000mm|
|3.||Thickness of the plate||0.3-0.8mm|
|4.||Decoiler||Manual one, can load 5 tons raw material|
|5.||Rollers for forming||16 rows|
|6.||Diameter of the roller||80mm|
|7.||Rolling material||45#Steel Chrome Plated|
|8.||Main motor power||5.5kw|
|10.||Cutting method||Hydraulic mould cutting|
|11.||Material of the cutting blade||Cr12|
|12.||Hydraulic cutting power||5.5kw|
|13.||Processing precision||Within 1.00mm|
|14.||Control system||Delta PLC control|
|16.||Main structure of the machine||300 H steel|
|19.||Voltage||380V 50Hz 3phases|
|21.||Custom||According to customer's requirement|
3. Main components of glazed tile roll forming machine
|Coil sheet guiding device||1 Set|
|Main roll forming system||1 Set|
|Cutting device||1 Set|
|Hydraulic station||1 Set|
|PLC control system||1 Set|
|Support table||1 Set|
4. Flow chart of glazed tile roll forming machine
Glazed tiles for a wide range of applications: villas, residential buildings, flat to slope, stations, public facilities, landscape rooms and other light steel roof, cast-in-place concrete structure roof, wood roof. Product color can be customized according to your needs, so as to meet the needs of customers and the style of housing to ensure the quality of the roof at the same time to do beautiful and generous.
6. Our service
1). Presale Service
We assist customers in well understanding the product information like features, functions and applications and so on.
As for the detailed procuring information or drawings, our professionals will first conduct a careful examination and then recommend the most suitable machines or devise proper schemes for customers. We also provide free samples if necessary.
2). After-Sale Service
a. 18 months warranty is provided.
b. Customers can send photos or samples for our confirmation once the parts are damaged within the one year warranty. If the parts are not damaged by wrong operation, we will reply to customers within 48 hours and provide free parts for replacement. Besides, for the parts out of commission and beyond the warranty, we only charge for the basic costs of parts.
c. We regularly follow up the service condition of products, and timely analyze and copy with the feedbacks. As for the disputes, we will figure out effective actions to reach mutual satisfaction.
