Product Details:
|
| Suitable Material: | GI, GL Coil | Forming Station: | 22 Stations |
|---|---|---|---|
| Forming Speed: | 12~15m/min | Roller Material: | 45# Steel. Quenched. 0.05mm Hard Chrome Coated |
| Main Power: | 5.5 Kw | Voltage: | 380V/50Hz/3ph |
| High Light: | automatic rolling shutter machine,garage door roll forming machine |
||

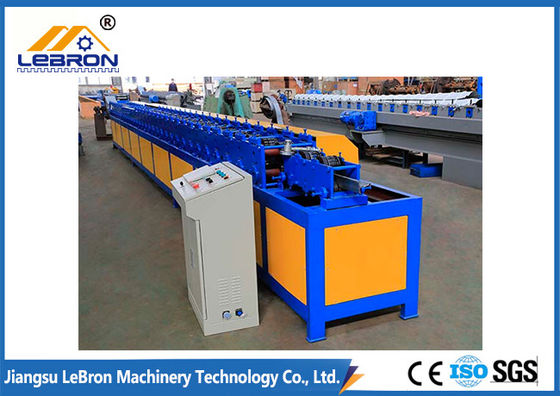

PLC Control Full Automatic Rolling Shutter Door T Profile Machine GI and GL material
1.Product Description
| steel profile Window Door Frame Make Machines Roll Forming Machine | Model | Shibo-1040/1035 |
| Forming size | 5000mm*1600mm*1400mm | |
| Weight | 4.5 T | |
| Host big frame structure | Frame welded | |
| Roll station | top:13row lower:15row | |
| Axial material | 45# steel | |
| Out diameter of shaft | Φ75 | |
| Roller materials | 45# steel hard chromium plating | |
| Drive | By chain | |
| Sprocket chain | 25.4mm | |
| Main power | 4kw | |
| Working speed | 8-10 m/min | |
| Material thickness | 0.3-0.8mm | |
| Made board | 16mm | |
| Feeding width | 1200mm |
2. Advantage:
- This EU type of light gauge steel roll forming machine line include 3 tons of manual decoiler, roll forming host, PLC control system, hydraulic cutting system and output table
- The manual decoiler is free for each machine, it can hold 3 tons of strips, and normally the space between manual decoiler and the machine is 3 meters.
- Feeding table has 1 row of roller to make the strip flat, and the roll forming host can produce the light keels as per customer's request.
3. Main Components and features of the Rolling Shutter Door T Profile Machine
Decoilers: The decoiler range is one of the largest and most powerful in the world. So we offering ranges from light, mechanically-operated options all the way up to a completely motorised decoiler with a quick charge integrated system which has a capacity of up to 15 tonnes.
Plate end welding: This system allows plate ends to be welded quickly and automatically, reducing waste and downtime.
Intermediate punching and forming station: Can incorporate several intermediate stations for punching, forming or marking. The different options available are endless. Starting with a single punching or forming unit right the way through to a multi-tool CNC press.
Vertical plate stock: This system eliminates the need for a traditional roll-forming pit. Allowing the plate to accumulate, ready for the forming process.
CNC control: Our user-friendly CNC touch screen display enables full control of the automatic line in a synchronised and also in a autonomous way.
Versatility, diversity and production optimization: Depending on the customer’s needs, our roll forming lines can be equipped with several different, interchangeable systems to easily meet specific requirements. Quick cassette changes along with adjustable tooling to produce a variety of bespoke profiles with different dimensions make both efficient and versatile.
Cut-to-lenght: There is also an option to equip our roll-forming machines with stationary or high speed cut-to-length systems.
Offload systems: To increase the efficacy of the roll forming, an automatic offload system can be incorporated to stack products on pallets or fill stillages.
When deliver the roll forming machines, main body of the machine is packaged with plastic film. We can provide two kinds of loading: Factory Loading and Port of Loading. You can choose the way you like. We also provide accessories for free, in case that it's difficult to find the accessoris in your place. Our aim: Help you is help ourselves.
Q1:If our country's voltage is different from yours, how to solve that?
A1:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2:We bought your steel profile Window Door Frame Make Machines Roll Forming Machine, but we couldn't install and debug it?
A2:Don't worry about that, when finished the machine, we will send you the manual book which show how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3:About the after service, what you can serve?
A3:All the machines are two years guaranteed, life maintenance. We can send the technician abroard, but you should pay the round-trip cost.
6. Our Service
Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.
Delivery: 60 days after receipt of advance payment
Service: we sent technician to your country to fix the machine.
The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 100USD/day.
Warranty: 12 months limited warranty
During warranty, parts are free but buyer pay for the shipping fee
Period of validity: 30 days
