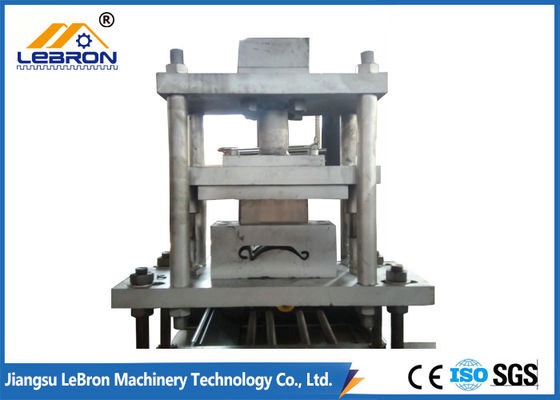

Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine

Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine
Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine

Large Image :  Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: LBM
Certification: ISO 9001: 2008
Model Number: LBM-SDM-009
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export sea-worthy packing with each machine tied and protected in the container (40gp')
Delivery Time: 25-30 days
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30 sets per month

Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine

Description
Weight: About 3500 Kgs Roller Stations: 12-14 Stations
Roll Forming Speed: 15-20m/min Forming Rollers Material: No.45 Steel, Coated With Chromed Treatment
Main Motor Power: 3Kw Installation: Technicians Can Go To Your Place To Make The Installation
High Light:

automatic rolling shutter machine

,

garage door roll forming machine

Hydraulic Cutting Device Door Shutter Roll Forming Machine Automatic Control



1. Description of door shutter roll forming machine:



For the rolling shutter strip making machine, it is a machine will make shutter door slats, Our machine can do thickness for 0.3-1.4mm, the shape will be design by your demand.



LBM is manufacturing high quality guardrail roll forming machines, and regularly exported to Turkey, Indonesia, Philippines, Malaysia, India, Angola, etc.



2. Technical details of door shutter roll forming machine:



Machine Specifications
Weight About 3500kgs
Size About 6m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.6mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement






3. Main components of door shutter roll forming machine



Decoiler / Uncoiler 1 Unit
Feeding Guide 1 Unit
Main Roll Forming Machine 1 Unit
Heating Device 1 Unit
PU Injection Foaming Machine 1 Unit
Pneumatic Tracking Punching 1 Unit
Servo Flying-saw Cutting 1 Unit
PLC Electrical Control Board 1 Unit
Run out Support Table 1 Unit





4. Production Flows:



Uncoiling the sheet---Infeed guiding--Roll forming---Rectifying the straightness---Measure length---Cutting the panel--panels to the supporter (option: automatic stacker)





5. Advantages:



· Germany COPRA software design



· 5 engineers with more than 20 years experience



· 30 professional technician



· 22 sets advanced CNC production lines on site



· Passionate Team



· Installation engineers can reach your factory within 6 days



· 3 years maintenance and whole life technical support



6. PLC Control System



1. Adopts PLC control technology, frequency adjust speed technology, realize the automatic production.

2. Provide good man and machine screen, which can set the batches, plate length, and quantity.

3. Operation type: Touching screen + Button

4. Using encoder to calculate the number and measuring the length

5. Electrical control: PLC frequency control system with touch screen



7. Application:



This machine is widely used in the production of the door shutters.



Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine 0

Hydraulic Cutting Shutter Door Machine , Automatic Control Rolling Shutter Making Machine 1
