Product Details:
|
| Suitable Material: | Color Steel Sheet ,galvanized Steel Sheet, Aluminium Sheet | Material Width: | 340mm |
|---|---|---|---|
| Sheet Thickness: | 0.3-0.8mm | Rollers quantity: | 18 Rows |
| Rolling material: | 45# Steel Chrome Plated | Shaft Diameter: | 80mm |
| Cutting model: | Hydraulic Mould Cutting | Forming Speed: | 10-16m/min |
| Decoiler Capacity: | 5T | ||
| High Light: | glazed tile making machine,roof tile manufacturing machine |
||

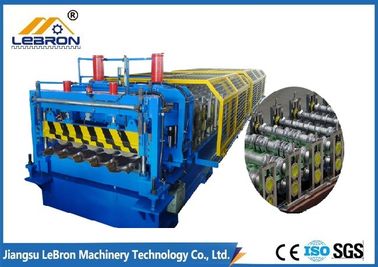

CNC Control System Color Steel Glazed Tile Roll Forming Machine with 45# High Grade Color Steel
1. Description of glazed tile roll forming machine
Color steel glazed tile is made by using color steel plate as the primary plate, by several processes, such as Rolling, Molding, Cutting, etc. become the final plate.
LBM factory is manufacturing high quality storage rack roll forming machines, and exported to the foreign countries such as India, Malaysia, Indonesia, Vietnam, Thailand, Russia, Syria, Saudi Arabia, Singapore, etc.
2. Main parameter of glazed tile roll forming machine
| NO | Main parameter of glazed tile machine | |
| 1. | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2. | Width of the plate | 340mm |
| 3. | Thickness of the plate | 0.3-0.8mm |
| 4. | Decoiler | Manual one, can load 5 tons raw material |
| 5. | Rollers for forming | 18 rows |
| 6. | Diameter of the roller | 80mm |
| 7. | Rolling material | 45#Steel Chrome Plated |
| 8. | Main motor power | 5.5kw |
| 9. | Productivity | 10-16m/min |
| 10. | Cutting method | Hydraulic mould cutting |
| 11. | Material of the cutting blade | Cr12 |
| 12. | Hydraulic cutting power | 5.5kw |
| 13. | Processing precision | Within 1.00mm |
| 14. | Control system | Delta PLC control |
| 16. | Main structure of the machine | 300 H steel |
| 17. | Weight | 5T |
| 18. | Dimensions | 6.5*1.5*1.3m |
| 19. | Voltage | 380V 50Hz 3phases |
| 20. | Certificate | CE/ISO9001 |
| 21. | Custom | According to customer's requirement |
3. Main components of glazed tile roll forming machine
| Name | Quantity |

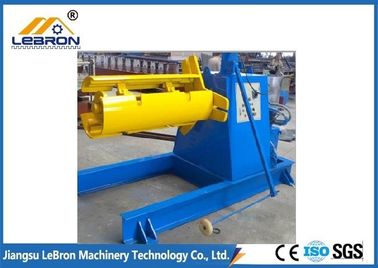

| Uncoiler | 1 Set |
| Coil sheet guiding device | 1 Set |
| Main roll forming system | 1 Set |
| Cutting device | 1 Set |
| Hydraulic station | 1 Set |
| PLC control system | 1 Set |
| Support table | 1 Set |
4. Flow chart of glazed tile roll forming machine
5. Application
Glazed tiles for a wide range of applications: villas, residential buildings, flat to slope, stations, public facilities, landscape rooms and other light steel roof, cast-in-place concrete structure roof, wood roof. Product color can be customized according to your needs, so as to meet the needs of customers and the style of housing to ensure the quality of the roof at the same time to do beautiful and generous.
6. Our service
1. Product quality control and delivery time is strictly controlled;
2. Direct manufacturing factory offering competitive price;
3. All the inquiries will be replied within 12 hours;
4. OEM & ODM service are available;
5. Providing first-class after-sales services to the customers.
7. Foreign buyers
8. Delivery
