Product Details:
Payment & Shipping Terms:
|
Size: | 6500*800*1100mm (Legth*Width*Height) | Weight: | About 3.5T |
---|---|---|---|
Color: | Blue And Yellow, Custom | Forming Roller Station Quantity: | 16 Rolls |
Forming Roller Shaft Diameter: | 60mm | Roll Forming Speed: | 10-15m/min |
Warranty Period: | 18 Months | Installation: | Our Technicians Can Be Available To Installation At Your Location |
Value-add Service: | Free Accessories Can Be Offered To You During The Warranty Period | Tile Width: | 500mm |
High Light: | glazed roof tile roll forming machine,roof tile manufacturing machine |

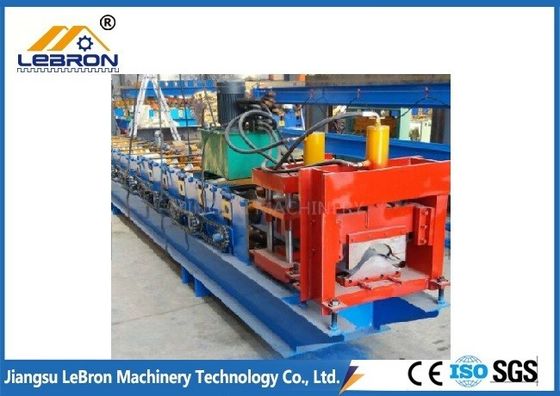

1. Description of Ridge Cap Roll Forming Machine
There are different roof flashing roll forming machines based on different technical requirements on the final products, however, in the market people most of time use three kinds of roof ridge cap roll forming machines. Roof ridge caps with pressed STEPs, Roof ridge cap without steps, and V shaped roof flashing without STEPs. It has to be pointed out that a Roof ridge caps without STEPS sometimes can be used both as roof ridge caps and as roof valley flashings. In addition, there is a similar machine, Glazed Tile Roll Forming Machine.
LBM factory is manufacturing high quality metal profiles roll forming machines. The roll forming machines mostly exported to Australia, India, Singapore, Iran, Croatia, South Africa, Saudi Arabia, Russia, Indonesia, Malaysia, Thailand, etc.
2. Main Technical details of Ridge Cap Roll Forming Machine
Suitable Raw Material | |
Material | GI and GL coils |
Thickness | 0.3~0.5mm |
Coil width | 333mm |
Yield Strength | 235Mpa |
Main Technical Parameters | |
Quantity of forming rollers stations | 14 |
Diameter of forming rollers shafts | 60mm |
Roll Forming Speed | 0~10/min |
Forming rollers material | No.45 steel, with quenched treatment |
Cutter material | CR12 mould steel, with quenched treatment |
Controlling system | PLC and Converter |
Electric Power requirement | Main motor power: 5.5kw |
Electric voltage | According to customer’s requirement |
3. Main components of Radge Cap Roll Forming Machine
Main Components | |
Decoiler (manual and automatic for options) | 1 set |
Guiding device | 1 set |
Roll Forming system | 1 set |
PLC control box | 1 set |
Hydraulic unit | 1 set |
Runout tables | 2 sets |
4. Our Advantages:
Design | Germany COPRA software design |
Engineer | 5 engineers with more than 20 years experience |
Technician | 30 professional technician |
Facility | 22 sets advanced CNC production lines on site |
Team | Passionate Team |
Service | Installation engineers can reach your factory within 6 days |
Warranty | 3 years maintenance and whole life technical support |
After service | 24 hours professional service team |
