1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output

1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output
1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output 1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output 1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output 1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output

Large Image :  1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output

Product Details:

Place of Origin: Wuxi City, Jiangsu Province, China
Brand Name: Lebron
Certification: ISO 9001:2008
Model Number: C Section Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: USD2000~40000 per Set
Packaging Details: Standard Export Packing with each machine fixed and protected in the container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Name: C Section Roll Forming Machine Capacity Of Decoiler: 5 TONS;
ID. Of Decoiler: 480-520mm OD. Of Decoiler: 1250mm
Material Thickness: 2-3.2mm Forming Stations: 13-15 Stations
High Light:

3.2mm C Z Purlin Roll Forming Machine

,

1250mm C Z Purlin Roll Forming Machine

,

1250mm purlin forming machine

Operation and Maintenance :
1. If you need to adjust the machine, please firstly stop the machine before carrying out relevant operations.
2. Chain wheel, bearing and speed reducer of two / three / waves high road way guard rail roll forming machine should be lubricated regularly.
3. The forming roller should be kept clean.
4. With high performance in operation, two / three / waves high road way guard rail roll forming machine generates little noise.



1. Description of c purlin roll forming machine

C purlin roll forming machine is an equipment that produces C shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.



The main components of a c sectional channel roll forming machine include a manual decoiler (3TONs capacity), a feeding guide for materials of different sizes, a leveling device, a front hydraulic punching for holes or slots on flanges, roll forming part, a rear hydraulic punching for holes or slots on web, a hydraulic cutting for cut to length, a PLC control cabinet, and and a hydraulic oil pump.



2. Technical Parameters of C purlin roll forming machine

No. Item Description
1 Raw material width Below 600mm
2 Roll forming speed 15-20m/min
3 Raw material thickness 1.0-3.0mm
4 Type Galvanized Strip
5 Main power 7.5Kw*2
8 Pre-Punch 1 station
9 Main roller stations 16 steps
10 Roller material Gcr15, quenching and tempering
11 Main roller material 45# steel, quenching and tempering, Diameter: 85mm
12 Length Tolerance ±1.5mm
13 Material of cutting Cr12Mov, quench HRC 58-62℃
14 Frequency inverte Panasonic PLC
15 Control system PLC controlling length, encoder is OMRON brand
16 Transmission typ 1.5 single row chain drive
17 Dimension (L*W*H) 8.5m*1.2m*1.2m
18 Voltage 380V,50Hz, 3 phase



3. Main components of C purlin roll forming machine

No. Name Qty
1 Decoiler 1 Set
2 Guider device 1 Set
3 Roll forming unit 1 Set
4 Cutting System 1 Set
5 Punching device 1 Set
6 Output Table 1 Set
7 Control System(PLC) 1 Set
8 Hydraulic station 1 Set




C Purlin Sizes:

No. D(mm) B(mm) L(mm) T(mm) Coil width (mm)
1 100 50 15 1-3 210
2 120 50 20 1-3 240
3 140 50 20 1-3 260
4 140 60 20 1-3 280
5 150 50 20 1-3 270
6 160 60 20 1-3 300
7 180 60 20 1-3 320
8 180 70 20 1-3 340
9 200 65 20 1-3 350
10 200 70 20 1-3 360
11 220 70 20 1-3 380
12 220 80 20 1-3 400
13 240 70 20 1-3 400
14 240 80 20 1-3 420
15 250 80 20 1-3 430
16 300 70 20 1-3 460
17 300 80 20 1-3 480





4. Application:

The c purlin which was produced by C purlin roll forming machine can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

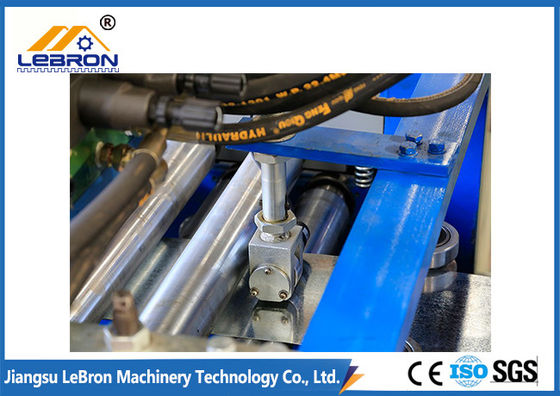

1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output 0





1250mm OD 3.2mm C Z Purlin Roll Forming Machine 20m/Min Output 1
