Product Details:
|
| Main Power: | 7.5KW | Size: | 7.5*1.2*1.0m |
|---|---|---|---|
| Weight: | Approx. 8tons | Speed: | 20-25m/min |
| Roller: | 45# Steel, Coated With Hard Chrome | Roller Station: | 18 Stations |
| High Light: | quenched treatment Door Roll Forming Machine,200mm Door Roll Forming Machine,420mm Door Roll Forming Machine |
||

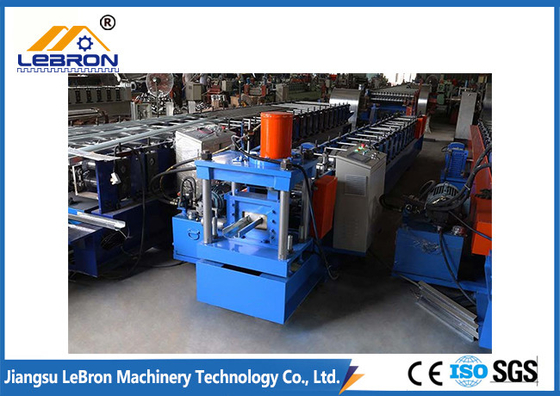

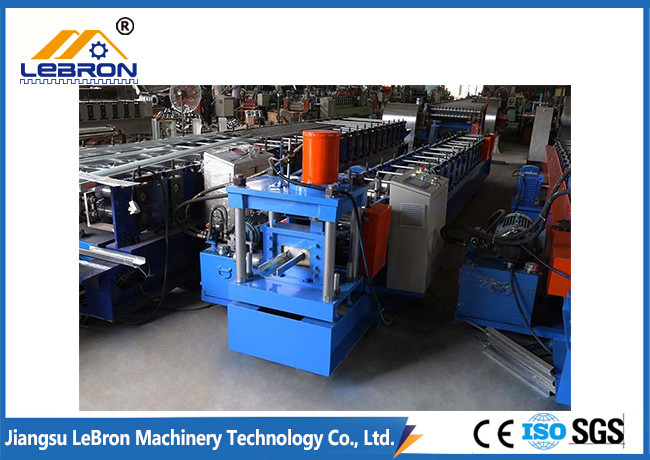

Fully Automatic Door Frame Roll Forming Machine High Efficiency Long Service Time
1. Description of Door Frame Roll Forming Machine

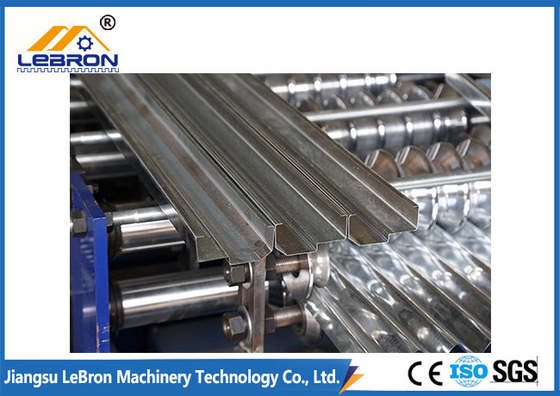

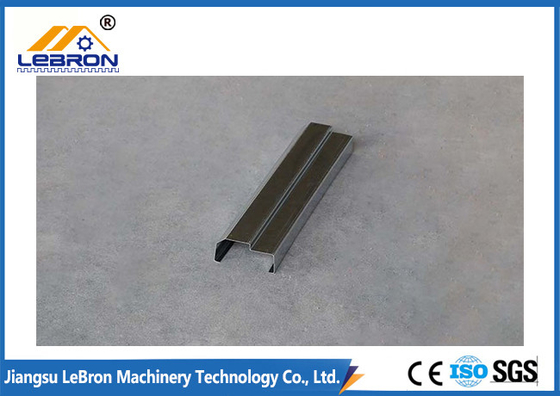

This Door Frame Roll Forming machine can produce various kinds of Roll Formed Aluminum & GI Steel Door or Window frames.
A door frame roll forming machine generally consists of a decoiler (a Hydraulic Decoiler is optional), a main roll forming unit, a transmission system, a cutting tool, a hydraulic system, a hydraulic oil pump, a PLC control cabinet, and run-out tables
The punching also can be designed according to your needs. the door frame surface will be very smooth and beautiful without any scratches on the surface.
Lebron-Machinery is manufacturing high-quality door frame machines, and they are mostly exported to foreign countries, such as India, Angola, Ethiopia, Ghana, Zambia, Brazil, Argentina, Thailand, Philippines, Pakistan, Russia, etc.
2. Technical Parameters of Door Frame Roll Forming Machine
| Suitable material | Galvanized steel strip |
| Main motor power | 7.5KW with Cycloidal reducer |
| Hydraulic station power | 4KW |
| Hydraulic oil | 36# |
| Thickness of material | 0.8-1.5mm |
| Diameter of the principal axis | Φ70mm |
| Material expands width | 200mm-420mm |
| Electric tension | 380V 3phase 60HZ |

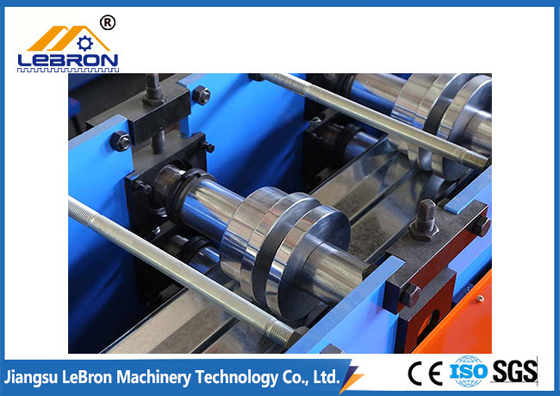

| Material of roller | GCr15 bearing steel HR58-60 |
| Rolling galvanization thickness | 0.05mm |
| Processing speed | 15-20m/min |
| Processing precision within | 10m+/-1.00mm |
| Material of cutting blade | Cr12 mold steel with quenched treatment |
| Kind of drive | 1.5-inch chain link bearing model 6210 |
| Roller station | 18 Rollers |
| Dimension | 8.5m*0.9m*1.3m |
| Weight | 5.5Ton |
| Screen | 5.7-inch Taida screen |
| PLC brand | Mitsubishi |
3. Main components of Door Frame Roll Forming Machine
|
Name |
Quantity |
|
Uncoiler |
1set |
|
Coil sheet guiding device |
1set |
|

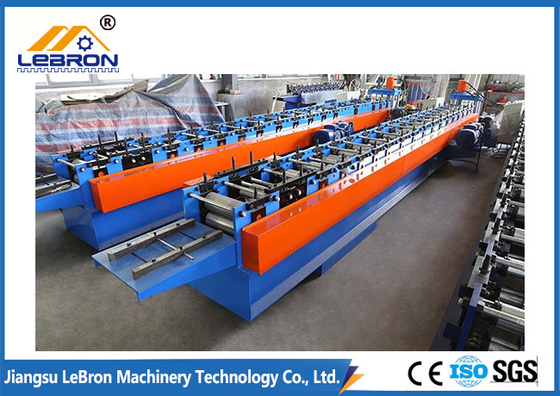

Main roll forming system |
1set |
|
Punching device |
1set |
|
Cutting device |
1set |
|
Hydraulic station |
1set |
|
PLC control system |
1set |
|
Support table |
1set |
4. Our Advantages
1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached International Inspection Standards;
5. FAQ
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer with over 11 years of experience.
2. Q: If I am new in this field. How could I understand the machine very well?
A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.
3. Q: I have no Whatsapp and Skype, how could I contact with you
A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.
4. Q: How should I do if I would like to order my machine
A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then
5. Q: Can you use other brands of spare parts for me if I want?
A: Yes. We can.
