Product Details:
|
| Main Power: | 7.5Kw | Hydraulic Power: | 4 Kw |
|---|---|---|---|
| Speed: | 12-15m/min | Roller Station: | 16 Stations |
| Size: | 9000mm*1500mm*1200mm | Weight: | 7-8 Tons |
| High Light: | 9000*1500*1200 Downspout Forming Machine,Downspout Forming Machine Fully Automatic,Downspout Forming Machine 15m/min |
||
Long Service Time High Quality Downspout Forming Machine Fully Automatic
1. Downspout Roll Forming Machine Description
The downspout is specially used to collect rainwater on the roof and is a pipe used to drain the water from the roof to the ground. The downpipe is actually a piping system used to organize drainage in the drainage organization of the roof. The rainwater on the roof enters the downpipe through the rainwater collection port on the roof and then is discharged from the downpipe.

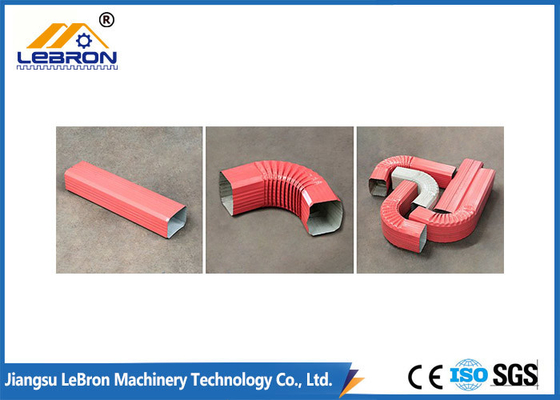

The metal downspout is made by using the color steel or GGPI coils roll-pressing and end-closing, then using the special equipment hit-to-bend and necking. The metal drainage system has excellent weather fastness. It has the advantages such as simple design, easy installation, safe and durability, and elegance. It is widely used in modern villas and multiple raises buildings.

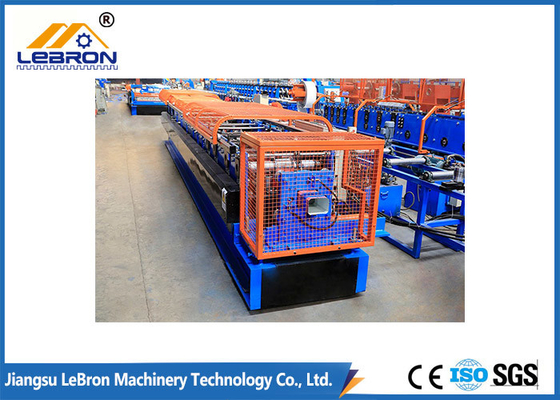

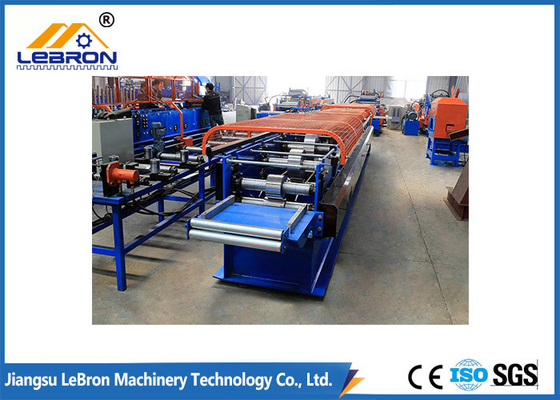

A downspout roll forming machine, known as a rainwater downpipe roll forming machine as well, has been designed for making square or round (circle or rectangular) rainwater pipes. And the downspout has many different names, waterspout, downpipe, drain spout, and roof drain pipe, etc.
Lebron-Machinery is manufacturing high-quality Downspout Roll Forming Machines, and most of the machines are exported to Australia, the UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Downspout Roll Forming Machine Technical Details
| Machine Specifications | |
| Weight | About 7000kgs |
| Size | About 9m x 1.5m x 1.2m (L x W x H) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.4-0.6mm |
| Coil width | 325mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations |
22 stations for square pipe 16 stations for round pipes |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 12-15m/min. (not including cutting) |

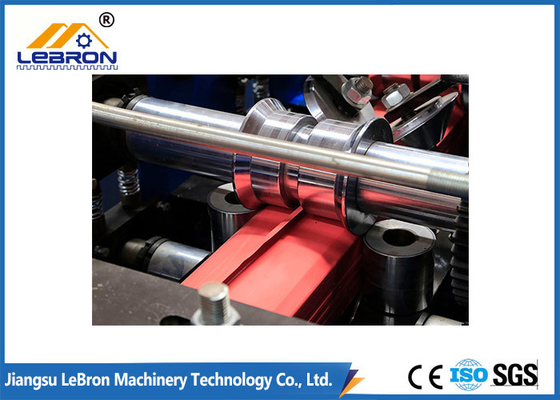

| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | The motor of the roll forming machine: 7.5kw |
| The motor of sawing cutter: 3kw | |
| Hydraulic Power: 4.0kw | |
| Electric voltage | According to the customer’s requirement |
3. Our Advantages
Our factory has more than 14 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole-life technical support
4. FAQ
Q: How to maintain it?
A: If used frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.
Q: Can you make the machine according to my design or phototype?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In normal maintenance, the service life is at least 10 years.
