Product Details:
|
| Main Power: | 18.5 Kw | Hydraulic Power: | 7.5Kw |
|---|---|---|---|
| Material: | Galvanized Steel Coil | Thickness : | 1.5~3.5mm |
| Roller Station: | 18 Stations | Speed: | Approx. 20m/min |
| Size: | Approx. 10.0m*1.5m*1.2m | Weight: | 10 Tons |

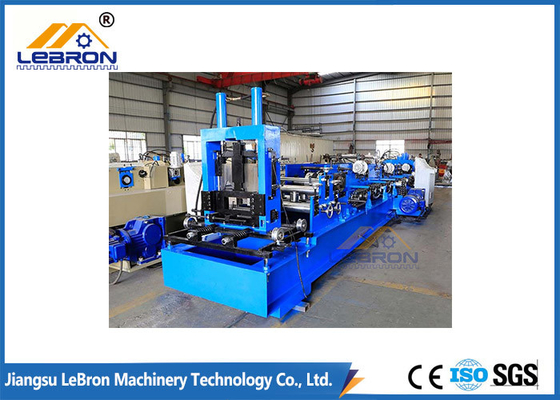

Easy Operate Easy Maintain Stable Fully Automatic C Purlin Roll Forming Machine
1. Description of CZ purlin roll forming machine

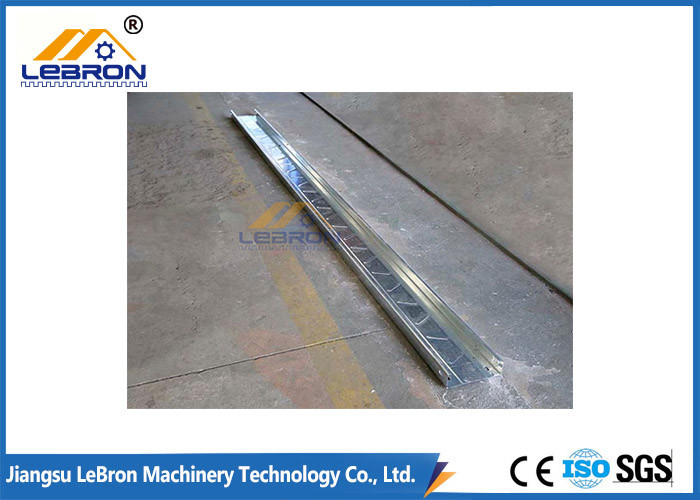

The c purlin which was produced by the C purlin roll forming machine can be used for the significant stress structure of large and middle-sized industrial constructions and civilian constructions. The roof load-bearing and wall panel support the plants, warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.
C purlin roll forming machine is equipment that produces C-shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending, and cutting.

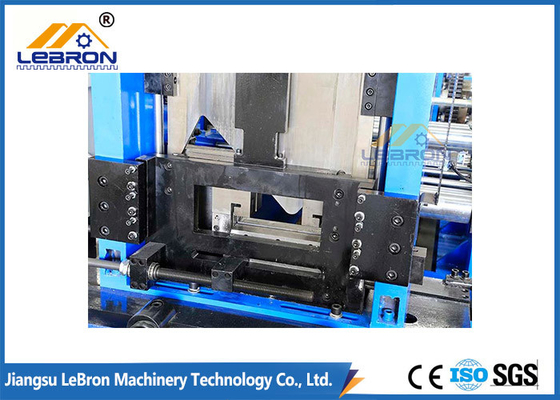

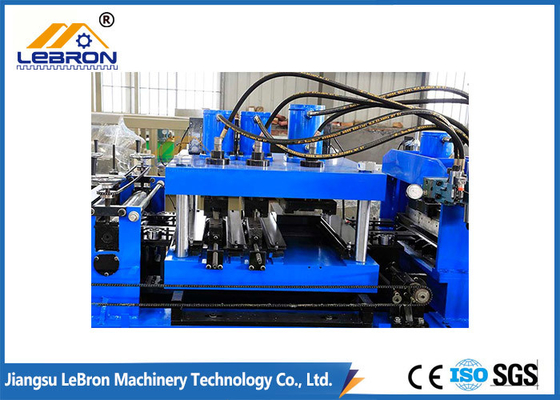

The main components of a c-sectional channel roll forming machine include a manual decoiler (3-Ton capacity), a feeding guide for materials of different sizes, a leveling device, a front hydraulic punching for holes or slots on flanges, a roll forming part, a rear hydraulic punching for holes or slots on the web, a hydraulic cutting for a cut to length, a PLC control cabinet, and a hydraulic oil pump.
LBM factory manufactures high-quality C purlin roll forming machines and exports them to foreign countries such as Australia, India, Uzbekistan, Indonesia, Croatia, Thailand, etc.
2. Technical Parameters of CZ Purlin Roll Forming Machine
| No. | Item | Description |
| 1 | Production Speed | Approx. 20m/min |
| 2 | Thickness | 1.5-3.5mm |
| 3 | Material | Q195~Q235 Cold Rolled Steel Coil, Galvanized Steel Coil |
| 4 | Main Power | 18.5Kw |
| 5 | Hydraulic Power | 7.5Kw |
| 6 | Flattening | 9 Steps |
| 7 | Pre-Punching Device | 1 Station |
| 8 | Roller Station | 18 Stations |
| 9 | Roller Material | GCr15, quenching and tempering |
| 10 | Shaft Material | 45# steel, Quenching and Tempering |
| 11 | Shaft Diameter | 95mm |
| 12 | Tolerance | 3m±1.5mm |
| 13 | Material of cutting | Cr12MoV Steel. Quench. HRC 58-62℃ |
| 14 | PLC | Siemens |
| 15 | Frequency inverter | Yaskawa |
| 16 | Encoder | Omron |
| 17 | Transmission type | Gear Chain |
| 18 | Dimension (L*W*H) | 10m*1.5m*1.2m |
| 19 | Weight | Approx 10 Tons |
| 20 | Voltage | 380V/50Hz/3Ph (can custom) |
3. Main Components of CZ Purlin Roll Forming Machine
|
No. |
Name |
Quantity |
Remark |
|
1 |
5Tmanual decoiler |
1 |
As one complete part |
|
2 |
Guiding device |
1 |
|
|
3 |
Pre-cutter |
1 |
|
|
4 |
Forming system |
1 |
|
|
5 |
Transmission system |
1 |
|
|
6 |
Hydraulic guillotine |
2 |
|
|
7 |
Support table |
2 |
|
|
8 |
Hydraulic station |
1 |
|
|
9 |
Control box |
1 |
|
|
10 |
Spare parts and tools |
1 |
As attaching list |
4. Our Advantages
Our factory has more than 14 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole life technical support
5. FAQ:
Q: How to maintain it?
A: If used frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.
Q: Can you make the machine according to my design or phototype?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In normal maintenance, the service life is at least 10 years.
