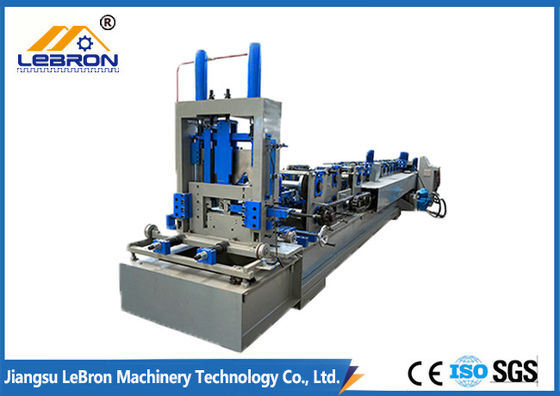

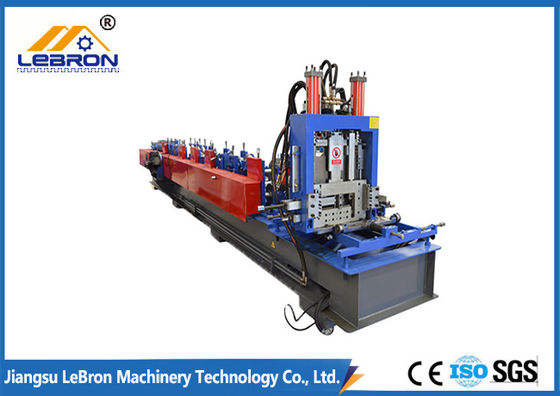

Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability

Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability
Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability

Large Image :  Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability

Product Details:
Place of Origin: Jiangsu, China
Brand Name: LBM
Certification: ISO 9001: 2008
Model Number: LBM-CPM-001
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Export Sea-Worthy Packing with each machine tied and protected in the container
Delivery Time: 30-40 days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Month

Main Power 15kW C Z Purlin Roll Forming Machine Fast Change High Durability

Description
Main Power: 15 Kw Thickness: 1.5~3.0mm
Roller Station: 16 Stations Forming Speed: 8~12m/min (including The Punching And Cutting)
Roller: GCr15 Steel. Quenched. Hardness: 58~62 HRC Shaft: Cr40 Steel, Tempering And Quenching
High Light:

c channel roll forming machine

,

z purlin making machine

Main Power 15 Kw Automatic Control CZ Purlin Roll Forming Machine Fast Change Durable





1. Description of CZ Purlin Roll Forming Machine



Due to the birth of semi-automatic c/z purlin roll forming machines, the changing time is greatly improved. However, this machine cannot make both C and Z shaped section channels. People still need two machines for the manufacturing of C and Z steel purlins.



Investment on two roll forming machines (C Purlin Roll Forming Machine & Z Purlin Roll Forming Machine) is not the ideal solution to contractors or distributiors. As a result, our genius roll forming engineers have pictured out a new type roll forming machine image in their mind.



Finally, a c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.



The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine







2. Technical Parameters of CZ Purlin Roll Forming Machine



No. Item Description
1 Suitable Material GI, GL, PPGI, PPGL Coil
2 Suitable Thickness 1.5~3.0mm
3 Roller Station 16 stations
4 Forming Speed 8~12m/min (including the punching and cutting)
5 Roller Material GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC
6 Main Power 15 Kw
7 Shaft Material Cr40 steel, Tempering and Quenching
8 Shaft Diameter 70mm
9 Cutting Hydraulic Cutting
10 Blade Material C12MoV, Quenched
11 Hydraulic Station Power 7.5 Kw
12 Drive Type Single row Chain Drive
13 Machine Size 10500mmx900mmx1500mm (L*W*H)
14 Machine Weight Approx 8 tons
15 Machine Frame 48mm Thick Plate
16 PLC Control System Panasonic
17 Frequency converter Yaskawa
18 Encoder Omron
19 Servo motor Yaskawa
20 Other Electrical Components Schneider





3. Main Components of CZ Purlin Roll Forming Machine



No. Name Quantity
1 Uncoiler 1set
2 Coil sheet guiding device 1set
3 Main roll forming system 1set
4 Punching device 1set
5 Cutting device 1set
6 Hydraulic station 1set
7 PLC control system 1set
8 Support table 1set





4. After Sale Service



A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day



B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).



C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.



D. Lifetime services

Life time services to every customer.
