Product Details:
|
| Main Power: | 7.5Kw | Hydraulic Power: | 4 Kw |
|---|---|---|---|
| Speed: | 12-15m/min | Roller Station: | 16 Stations |
| Size: | 9000mm*1500mm*1200mm | Weight: | 7 Tons |
| High Light: | Durable Automatic Downspout Forming Machine,7.5Kw Downspout Forming Machine,15m/min Downspout Forming Machine |
||

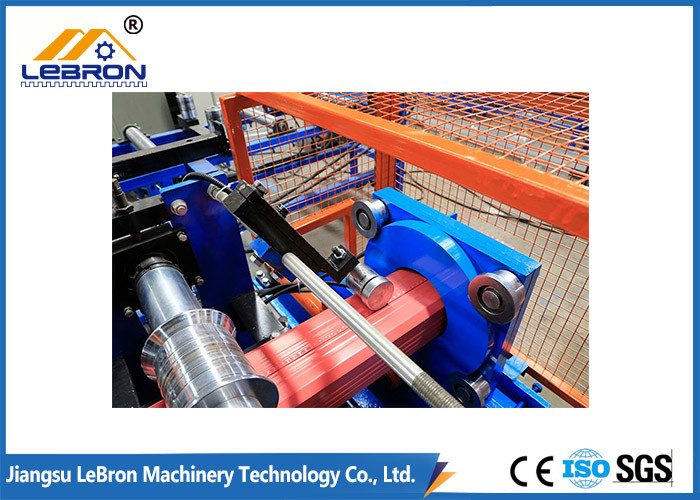

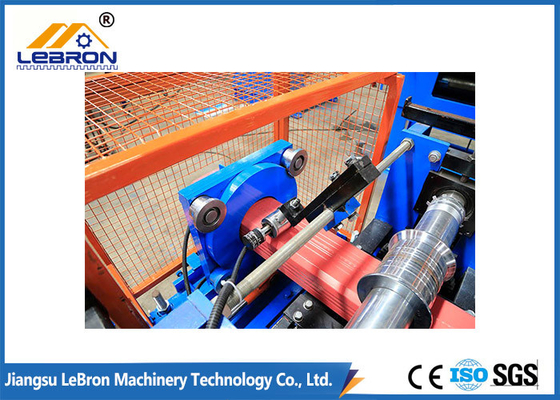

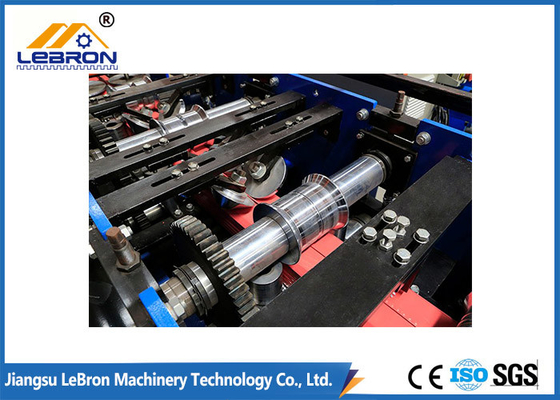

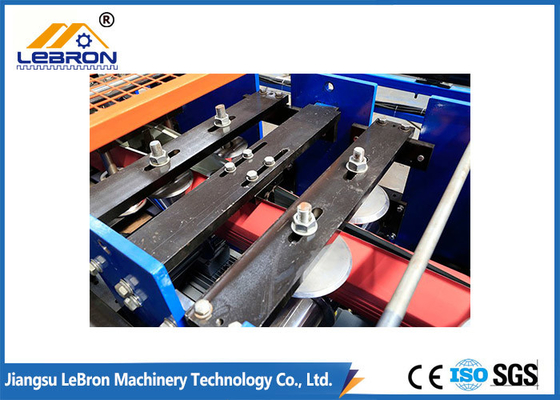

High Speed Durable Fully Automatic Downspout Forming Machine High Capacity
1. Downspout Roll Forming Machine Description
In the market, there are two types of downspouts: square or rectangular downspouts and circle or round downspouts. The round or circle downspouts are straight from the rooftop to the ground, and the square or rectangular waterspout usually has a curved pipe or an elbow downpipe as a turn at the down end of the straight pipe.
This Downspout Roll Forming Machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, and automatically cut to length.
The equipment adopts PLC control, AC frequency, and adjusting the speed technology, and it realizes the continuous automatic production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
Lebron-Machinery is manufacturing high-quality Downspout Roll Forming Machines, and most of the machines are exported to Australia, the UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Downspout Roll Forming Machine Technical Details
| Machine Specifications | |
| Weight | About 7000kgs |
| Size | About 9m x 1.5m x 1.2m (L x W x H) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.4-0.6mm |
| Coil width | 325mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations |
22 stations for square pipe 16 stations for round pipes |
| Diameter of forming rollers shafts | 70mm |
| Roll Forming Speed | 12-15m/min. (not including cutting) |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | Cr12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | The motor of the roll forming machine: 7.5kw |
| The motor of sawing cutter: 3kw | |
| Hydraulic Power: 4.0kw | |
| Electric voltage | According to the customer’s requirement |
3. Main Components
| No. | Name | Quantity |
| 1 | Uncoiler | 1set |
| 2 | Guiding and Leveling Device | 1set |
| 3 | Main Roll Forming System | 1set |
| 4 | Hydraulic Cutting Device | 1set |
| 5 | Hydraulic Station | 1set |
| 6 | Electric Control Cabinet | 1set |
| 7 | Receiving Table | 1set |
4. Our Advantages
1). Factory directly-sell price. This will surely save you costs.
2). From buying to installation to use, we have professional teams to help you. We can save you time, and make your operation easier.
3). Long-time Warranty. 18 months warranty. During this period, all the accessories are free. If the machinery has a nonrepairable quality problem, we accept the replacement or return.
4). Rich experience in Logistics and Shipping. We can not only guarantee the machine’s safe and full during transportation but also save lots of unnecessary costs for you.
5. FAQ
Q: How to visit our company:
A: 1). Fly to Wuxi Airport directly;
2). By fast train From Shanghai Hongqiao station to Wuxi station, then we can pick up you at our factory.
Q: What should I provide if I want to customize the machine?
A: You need to provide the profile drawing, material, thickness, voltage, and your special requirements. Then, our technology team will analyze and offer you a suitable technical proposal.
3. Q: What is the Warranty?
A: 12 months
4. Q: What can you do if the machine is broken?
A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new free parts to replace the broken parts. You need to pay the cost of the machine that exceeds the warranty period. we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.
5. Q: If need a technician to the workshop to debug and teach, how to do it?
A: We can send technicians to your country to install the machine. The buyer should bear the expenses including visa, round trip ticket, and suitable accommodation, also the buyer should pay a salary of 100 USD/day.
