Product Details:
|
| Main Power: | 7.5KW | Size: | 7.5*1.2*1.0m |
|---|---|---|---|
| Weight: | Approx. 8tons | Speed: | 20-25m/min |
| Roller: | 45# Steel, Coated With Hard Chrome | Roller Station: | 18 Stations |
| High Light: | PLC Door Frame Roll Forming Machine,Door Frame Roll Forming Machine 7.5KW,235Mpa Door Roll Forming Machine |
||
Long Time Service Time High Speed Fully Automatic Door Frame Roll Forming Machine
1. Description of Door Frame Roll Forming Machine

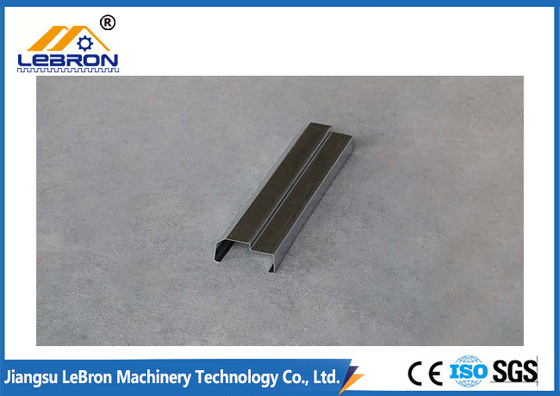

This Door Frame Roll Forming machine can produce various kinds of Roll Formed Aluminum & GI Steel Door or Window frames.

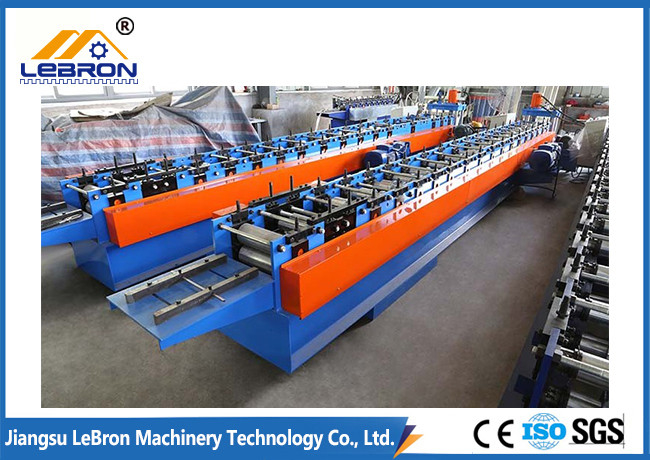

This Door Frame Roll Forming Machine generally consists of a decoiler (a Hydraulic Decoiler is optional), a main roll forming unit, a transmission system, a cutting tool, a hydraulic system, a hydraulic oil pump, a PLC control cabinet, and run-out tables
The punching also can be designed according to your needs. the door frame surface will be very smooth and beautiful without any scratches on the surface.
Lebron-Machinery is manufacturing high-quality door frame machines, and they are mostly exported to foreign countries, such as India, Angola, Ethiopia, Ghana, Zambia, Brazil, Argentina, Thailand, Philippines, Pakistan, Russia, etc.
2. Technical Parameters of Door Frame Roll Forming Machine
| Weight | About 6000kgs |
| Size | About 7.5m*1.2m*1.0m (L x W x H) |
| Suitable Material | Galvanized steel strip |
| Thickness | 0.8~1.2mm |
| Coil width | 240mm |
| Yield strength | 235Mpa |
| Rollers station | 18 Stations |
| Roller Shaft Diameter | 75 mm |
| Roll Forming Speed | 20-25m/min |
| Production Speed | Approx.15m/min |

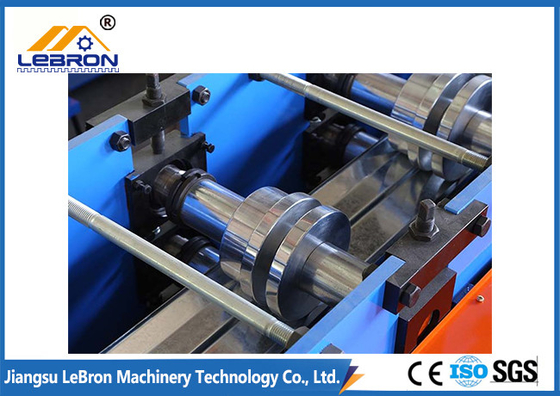

| Roller Material | 45# steel, coated with chrome, quenched |

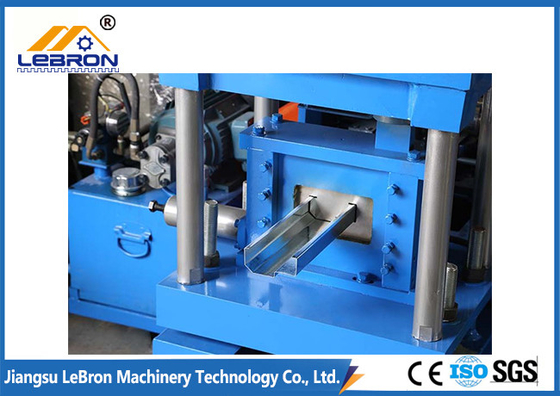

| Cutter material | Cr12 mold steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric power requirement | Main power: 7.5 KW |
| Hydraulic power: 4 KW | |
| Electric voltage | 380V 50Hz 3 Phase (as per local requirement) |
3. Main components of Door Frame Roll Forming Machine
|
Name |
Quantity |
|
Uncoiler |
1set |
|
Coil sheet guiding device |
1set |
|
Main roll forming system |
1set |
|
Punching device |
1set |
|
Cutting device |
1set |
|
Hydraulic station |
1set |
|
PLC control system |
1set |
|
Support table |
1set |
4. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
C. Training
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.
5. FAQ
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer with over 11 years of experience.
2. Q: If I am new in this field. How could I understand the machine very well?
A: We have a very professional sales team and technology team. We will provide you the detailed introductions by photos, videos, and technical proposals. If you have any questions, we can reply to you in the shortest time.
3. Q: I have no Whatsapp and Skype, how could I contact with you
A: Send one email to me (alfred@lebron-machinery.com). Leave your contact information for me. I will contact you. It is free.
4. Q: How should I do if I would like to order my machine
A: Send us your design drawing if you have any. Or tell us your design idea. we arrange for our engineers to make the drawing for your confirmation first. After every technical detail is confirmed, meantime, we reach an agreement on the price, delivery time, after-sales service, etc. We can sign a contract then
5. Q: Can you use other brands of spare parts for me if I want?
A: Yes. We can.
