Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine

Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine
Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine

Large Image :  Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine

Product Details:

Place of Origin: Wuxi City, Jiangsu Province, China
Brand Name: Lebron
Certification: ISO 9001:2008
Model Number: C Z Purlin Roll Forming Machine

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: USD2000~40000 per Set
Packaging Details: Standard Export Packing with each machine fixed and protected in the container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Name: C Z Purlin Roll Forming Machine Suitable Material: GI, GL, PPGI, PPGL Coil, Q235 Coil
Suitable Thickness: 1.5~3.0mm Shaft Diameter: 70mm
Main Motor Power: 15 Kw Drive Type: Single Row Chain Drive
High Light:

Q235 c z purlin forming machine

,

3.0mm c&z purlin forming machine

Automatic CZ Purlin Roll Forming Machine



C Z Purlin Roll Forming Machine Description



A c/z purlin interchangeable roll forming machine has been designed to produce both C and Z steel purlins with any sizes available.



The profile change including cutting dies for C to Z takes at most 30 minutes (just clutches taken out, a 180° turning on some rolling tools and clutches inserted in) and size change needs at most 5 minutes (just input the required distance through the touch screen on PLC control cabinet ). So much efficiency has been improved by this quick-change c/z steel purlin roll forming machine



C Z Purlin Roll Forming Machine Technical parameters



No. Item Description
1 Suitable Material GI, GL, PPGI, PPGL Coil, Q235 Coil
2 Suitable Thickness 1.5~3.0mm
3 Roller Station 16 stations
4 Forming Speed 8~12m/min (including the punching and cutting)
5 Roller Material GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC
6 Main Motor Power 15 Kw
7 Shaft Material Cr40 steel, Tempering and Quenching
8 Shaft Diameter 70mm
9 Cutting Hydraulic Cutting
10 Blade Material C12MoV, Quenched
11 Hydraulic Station Power 7.5 Kw
12 Drive Type Single row Chain Drive
13 Machine Size 10500mmx900mmx1500mm (L*W*H)
14 Machine Weight Approx 8 tons
15 Machine Frame 48mm Thick Plate
16 PLC Control System Panasonic
17 Frequency converter Yaskawa
18 Encoder Omron
19 Servo motor Yaskawa
20 Other Electrical Components Schneider

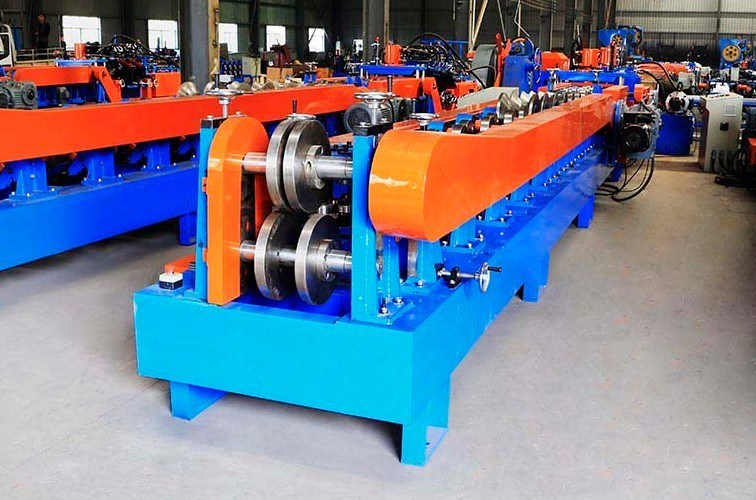

C Z Purlin Roll Forming Machine Pictures





Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine 0

Metal Profile Quick Change 1.5mm C Z Purlin Roll Forming Machine 1



After Sale Service



A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day



B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t forced by human are excluded).



C. Training

During installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personnel request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.



D. Lifetime services

Life time services to every customer.
