|Main Power:||15 Kw||Hydraulic Power:||7.5Kw|
|Material:||Galvanized Steel Coil||Thickness :||1.0~3.0mm|
|Roller station:||18 Stations||Speed:||16~20m/min|
|Size:||Approx. 10m*1.5m*1.8m||Weight:||10 Tons|
Hydraulic Cutting CZ Purlin Roll Former,
15kw CZ Purlin Roll Forming Machine,
CZ Purlin Roll Former 12m/min
High Capacity Long Service Time Fully Automatic CZ Purlin Roll Forming Machine

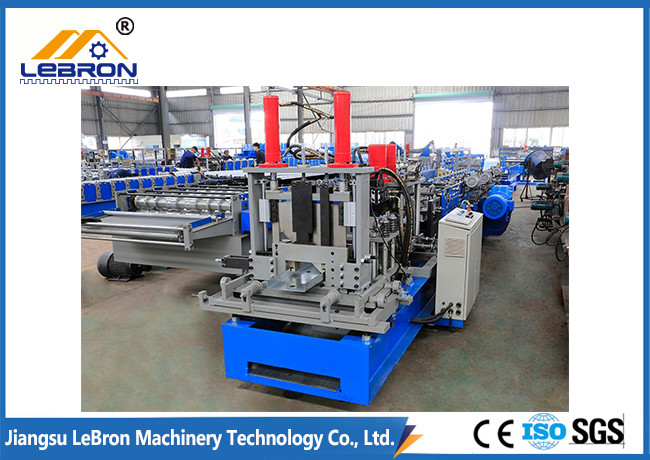

1. Description of CZ purlin roll forming machine
CZ Interchangeable Purlin Roll Forming Machine is a Purlin equipment that combines C-type purlin and Z-type purlin. It is a highly automated purlin roll-forming machine. Through PLC system control, It can realize the interchangeable production of C/Z type and specification purlins in a short time.
Advantages of CZ Interchangeable Purlin Roll Forming Machine:
1). The produced C-type purlins have good straightness and good compression and bending resistance;
2). The produced Z-type purlins can be installed in reverse lap to increase the installation strength of the connection points;
3). The electrical automatic control system is equipped with an error-reporting device to ensure the safety and stability of the production line;
4). The transmission adopts a deceleration motor plus frequency conversion control, speed control, accurate and reliable length positioning;
5). Two different configuration files of CZ can be rolled, saving the user's purchase cost and floor space;
6). The conversion of the two profiles can be realized without changing the forming roller, with high speed and high efficiency.
Lebron-Machinery is manufacturing high-quality Door Frame Roll Forming Machines, and most of the machines are exported to Australia, the UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore, Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique, Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
2. Technical Parameters of CZ Purlin Roll Forming Machine
|1||Suitable Material||GI, GL, PPGI, PPGL Coil, Q235 Coil|
|3||Roller Station||16 stations|
|4||Forming Speed||8~12m/min (including the punching and cutting)|
|5||Roller Material||GCr15 Bearing Steel. Quenched. Hardness: 58~62 HRC|
|6||Main Motor Power||15 KW|
|7||Shaft Material||Cr40 steel, Tempering, and Quenching|
|10||Blade Material||C12MoV, Quenched|
|11||Hydraulic Station Power||7.5 KW|
|12||Drive Type||Single row Chain Drive|
|13||Machine Size||10500mmx900mmx1500mm (L*W*H)|
|14||Machine Weight||Approx 8 tons|
|15||Machine Frame||48mm Thick Plate|
|16||PLC Control System||Panasonic|
|20||Other Electrical Components||Schneider|
3. Main components of CZ Purlin Roll Forming Machine
|1||5Tmanual decoiler||1||As one complete part|
|10||Spare parts and tools||1||As attaching list|
4. Our Service
A. Foreign debugging
If you need it, we will arrange for our professional engineers to help you install and debug the machines well. The buyer should pay $100 per day
B. Guarantee period
The warranty will be a maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charge, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by humans are excluded).
During the installation and adjustment of the equipment, our engineers shall provide the training to the buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, non-standard safety items, testing material and etc.
Q: How to visit our company:
A: 1). Fly to Wuxi Airport directly;
2). By fast train From Shanghai Hongqiao station to Wuxi station, then we can pick up you at our factory.
Q: What should I provide if I want to customize the machine?
A: You need to provide the profile drawing, material, thickness, voltage, and your special requirements. Then, our technology team will analyze and offer you a suitable technical proposal.
3. Q: What is the Warranty?
A: 12 months
4. Q: What can you do if the machine is broken?
A: Our machine's warranty period is 12 months, if the broken parts can't repair, we will send new free parts to replace the broken parts. You need to pay the cost of the machine that exceeds the warranty period. we can negotiate to solve the problem, and we supply technical support for the whole life of the equipment.
5. Q: If need a technician to the workshop to debug and teach, how to do it?
A: We can send technicians to your country to install the machine. The buyer should bear the expenses including visa, round trip ticket, and suitable accommodation, also the buyer should pay a salary of 100 USD/day.
