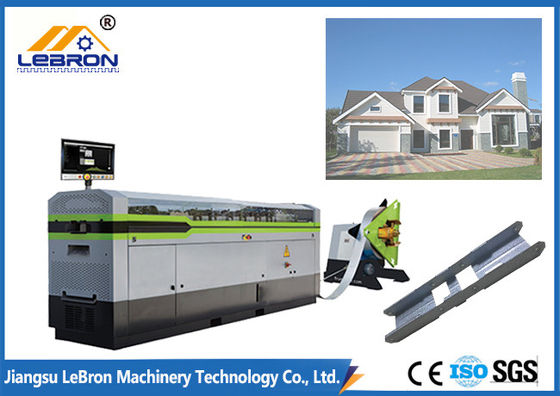

5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity

5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity
5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity 5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity 5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity 5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity

Large Image :  5000mm Length Light Gauge Steel Framing Machines 300-700m/h Production Capacity

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO9001: 2008
Model Number: LBM-LGS-013
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month
Detailed Product Description
Weight: About 4.5 Tons Size: About 5m*1.0m*1.5m
Color: Blue, Orange, Green, Black (can Be Custom) Main Unit Power: 7.5Kw
Hydraulic Station: 5.5Kw Voltage: 380V/50Hz/3phase
High Light:

metal framing machine

,

steel framing equipment

5000 mm Length Green Light Gauge Steel Framing Machines Full Automatic Mode





Light-gauge steel Construction is made by a Light Gauge Steel Framing Machine where sheets of steel are passed through a series of roll forming dies to create there desired shade. The desired strength is achieved by a combination of the thickness or gauge of the steel utilized as well as the shape of the member. The various bends in the member's cross-section add to the stiffness and ultimate strength of the piece.



The building system characteristics would be summarized as follows:



The light construction residential house’s frame is assembled from cold formed steel profiles. In the gaps between the elements of the frame heat insulation material is placed and the frame is supplied with surface layers made of various materials, forming a layered structure.



Generally, the elements of the frame structure are constructed of C and U profiles with a dry, assembly style building technology. Numerous steel fasteners, stiffeners and other complementary profiles are connected to the basic elements of the structure.



The applied materials filling the gaps between the elements of the frame not only perform heat insulation, but also meet acoustical requirements and they are an efficient fire protection tool. With the application of efficient heat insulation materials a good level of fire protection and an excellent heat and sound insulation can be achieved.



The inside cover is mostly made by plasterboard. Composite layers by wood as basic material (e.g. OSB) are preferably used as outside wall board cover and floor slabs. With this, we can exploit the advantage of high strength, which provides stiffening function.



Steel construction components can be pre-measured and precut to exact specifications. On-site adjustments are generally not required.



Steel components generate minimal waste and all light-gauge steel construction materials are 100% recyclable.





2. Major Technical Parameters of Light Gauge Steel Framing Machine



Major Technical Parameters of Light Gauge Steel Framing Machine
Material G300-G550 zinc coated coil, aluminum-zinc coated coil
Thickness 0.75-1.2mm
Width 182mm
Maximum line velocity Approx 2800m/h
Normal production capacity 300-700 m/h
Main unit power 7.5Kw
Voltage 380V/50Hz/3phase
Hydraulic station 5.5Kw
Total power 14.5Kw
Main unit remote control Standard mode
Punching dies

Dimple hole, chamfer cut, web notch, lip cut,

Service hole, swage, shear, bolt hole

Dimple accuracy +/-0.5mm
Inkjet printer Standard (custom according to buyer’s requirement)
Machine size About 5m*1.0m*1.5m
Weight About 4.5 Tons
Color Blue, Orange, Green, Black (can be custom)





3. Major Components of Light Gauge Steel Framing Machine



No. Item
1 One set of Roll Forming Machine
2 One set of 1.5T Hydraulic Uncoiler
3 One set of Automatic Punching Device
4 One set of Hydraulic Motor System
5 One set of IPC Computer Controlling System with Product Software
6 One set of Hydraulic Post-cutter
7 One set of Automatic Printing Device
8 One set of Vertex BD Design Software
9 One set of Run Out Table





4. After-sale service



A. Foreign debugging

If you need, we will arrange our professional engineers to help you install and debug the machines well. Buyer should pay $60 per day



B. Guarantee period

The warranty will be maintenance, maintain in the guarantee period of 18 months starting from delivery. Because of the quality of equipment during the guarantee period, we will provide the parts free of charges, which is in the conditions of correct operation. (Natural disasters or factors which can’t be forced by human are excluded).



C. Training

During the installation and adjustment of the equipment, our engineers shall provide the training to

buyer’s personal request to operate and maintain the equipment. Including foundation construction, electrical works, hydraulic oil, safe operation, and non-standard safety items, testing material and etc.



D. Lifetime services

Lifetime services to every customer.
