Product Details:
|
| Machine Size: | 4.5m X 0.9m X 1.500m | Weight: | Approx. 3000Kg |
|---|---|---|---|
| Thickness: | 0.6~1.6mm | Roller: | 10 Stations |
| Speed 1: | 500m/h~900m/h (Walls Frame) | Speed 2: | 300m/h To 500m/h (Floor Roof Truss) |
| Drive System: | SERVO Driven High Speed System | De-Coiler: | 1500 Kg (3000lb) Powered Coil Feeding System |
| High Light: | metal framing machine,steel framing equipment |
||

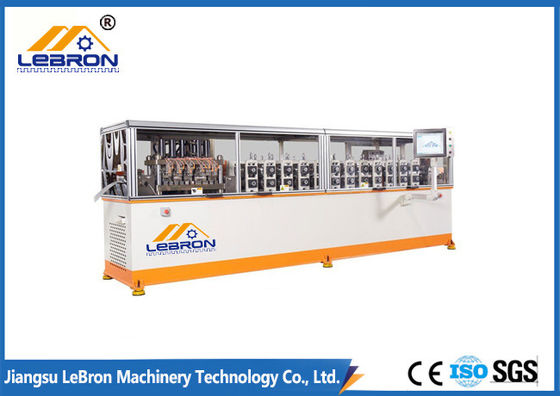

Steel structure pre-engineered building use light gauge steel framing machine
1. Description of Light Gauge Steel Framing Machine
Light Gauge Steel Framing Machine is perfect for the high-volume production of preassembled residential and commercial steel building solutions. It can produce rafters, trusses, and complete wall panels, as well as steel framing for a wide variety of building designs.
Every piece is accurately formed, cut, punched, dimpled and individually labeled, ready for screw-together assembly. By integrating our advanced manufacturing equipment with our innovative design and detailing software, we have achieved a building system that is automated in the most intelligent way.
2. Major Technical Details of Light Gauge Steel Framing Machine
| Profiles |
76mm x 41mm x 13mm 89mm x 41mm x 13mm 92mm x 41mm x 13mm 152mm x 41mm x13mm |
| Material Thickness: | 25 gauge to 16 gauge (0.6mm to 1.6mm) |
| Roll Forming: | 10 Stations, Auto-Gauging |
| Frame Truss Punch Tools: |
PinnacleTRUSS punch Truss Index hole punch Flange bolt hole punch Service hole punch Left-right lip notch punch Web notch punch Truss end cut punch Flange dimple hole punch Shear cut End crimp punch Auto swage |
| Standard Production Speed (Output): |
Walls Frames: 500m/h to 900m/h Floor Roof Truss: 300m/h to 500m/h |
| Main Drive System: | SERVO Driven High-Speed System |
| Machine Size | 4500mm x 900mm x 1500mm (L * W * H) |
| Weight (Approximate): | 3000 kg |
| Profile Receiving System: | Fully Automatic Receiving Stacking System Fully Integrated with Machine Production Batch and Speed |
| Powered De-Coiler: | 1500 kg (3000lb) Powered Coil Feeding System |
3. Application:
1). Interior and Exterior Walls
Using our precision software and manufacturing equipment, we can design and manufacture load-bearing walls, both interior and exterior, straight and square, according to spec. When designing your project, the additional backing can be added to the drawings wherever needed for cabinetry, appliances, etc.
Our steel wall studs provide ample bearing and attachment surface for brick, stone and all types of siding. Drywall can be installed directly to the studs and our steel is available in 18 gauge, 20 gauge, and 22 gauge steel. These thicknesses meet or exceed building requirements for both load bearing and non-load bearing walls.
2). Roof Trusses
We can produce roof trusses in a fraction of the time it takes to design them using traditional materials. With our pre-engineered trusses, longer clear-span capabilities can be achieved. By simply inputting the correct loadings and wind speeds for the desired building zone, our design software can produce a fully-engineered product, ready for manufacturing. After the designing of the trusses, drawings will be sent to a certified engineer for approval.
3). Joists
The high strength-to-weight ratio of steel provides strong loading capacity and maximum spanning capabilities. They can be used with all types of traditional flooring materials, such as plywood, OSB, concrete filled steel decking, or one of the many varieties of fibre-reinforced cement board. The open web floor joist system is ideal for running plumbing and electrical services.
