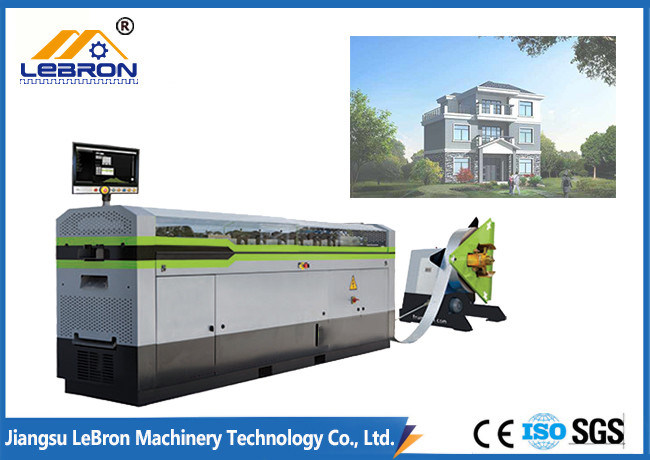

14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame

14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame
14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame 14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame 14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame 14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame

Large Image :  14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame

Product Details:
Place of Origin: Wuxi City, Jiangsu
Brand Name: Lebron-Machinery
Certification: ISO9001: 2008
Model Number: LBM-LGS-008
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Standard export packing with each machine fixed and protected in the container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 25 Sets per Month
Detailed Product Description
Suitable Material: G300-G550 Zinc Plated, Aluminum-zinc Plated Coil Material Thickness: 0.7-1.2mm
Max Production Speed: 2800m/h Normal Production Speed: 300-700m/h
Main Unit Power: 7.5Kw Voltage: 380V/50Hz/3phase
High Light:

metal framing machine

,

steel framing equipment

14.5 Kw total power light gauge steel framing machines and lgs framing machine





1. Steel is widely used in the construction of multi-storey buildings.



Over the years, various improved systems have been developed for use in landed properties. An economical light gauge steel frame system is increasingly being used in America, Europe, Australia, and New Zealand.



This light gauge steel frame is developed through a cold-formed process without the use of heat. This process enables steel manufacturers to produce light-weight but high tensile steel sheets. The sheet surface is coated with a zinc alloy that completely covers the steel surface and seals it from the corrosive action of its environment. This results in buildings that are more solid, rigid, stronger, durable and easier to build.



As such, the light gauge steel frame system is an attractive alternative for use in landed properties. This is particularly in view of concerns on the depletion of timber resources and low productivities associated with reinforced concrete construction.



Light Gauge Steel Framing Machine is for producing the studs and tracks which are used in light gauge steel structure buildings. The studs and tracks which are produced by the Light Gauge Steel Framing Machine are light. The building steel structure can be quickly built without normal heavy tools and equipment. Every component can be easily carried by hand. The main tool is a light, hand-held screw gun. Because the steel is strong, LGS structures are lighter than wood framed structures of equivalent strength.







2. Major technical parameters of F1-C89 equipment basic parameters



F1-C89 equipment basic parameters
Suitable Material G300-G550 zinc plated, aluminum-zinc plated coil
Material Thickness 0.7-1.2mm
Max Production Speed 2800m/h
Normal production speed 300-700m/h
Main Unit Power 7.5Kw
Voltage 380V/50Hz/3phase
Hydraulic Power 5.5Kw
Total power 14.5Kw
Hydraulic cylinder volume 120L
Main unit remote control Standard mode
Punching dies

Dimple hole, chamfer cut, web notch, lip cut,

Service hole, swage, shear, bolt hole

Dimple accuracy +/-0.5mm
Ink jet printer Standard
Size 4.5m*1.0m*1.5m
Weight Approx 4000kg
Main Color Blue, Orange, Green, Black (can be custom)
Uncoiler Power: 1.5kw, loading weight:2000kg, Automatic







3. Main components of the LGS Framing Machine Line



No. Item Quantity (Set)
1 Main Roll Forming Machine 1
2 1.5T Hydraulic Uncoiler 1
3 Automatic Punching Device 1
4 Hydraulic Motor System 1
5 IPC Computer Controlling System with Product Software 1
6 Hydraulic Post-cutter 1
7 Automatic Printing Device 1
8 Vertex BD Design Software 1
9 Run Out Table 1
10 Tools 1
11 Operation Manual 1







4. Quality assurance



1. The company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, we all operating a whole strict process control system. The running of the quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by the company. Quality system realizes whole screw and whole procedure control completely.



2. Quality assurance procedure for important out-source parts.


a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.
b. After evaluation, select qualified suppliers as business partners.
c. Purchasing according to plan, purchase contract, quality requirement, technical standard, and inspection standard.



3. Receiving inspection on site either in supplier or our company with related technicians.



14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame 0







14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame 1







14.5kW Total Power Steel Framing Machine High Accuracy For LGS Frame 2
