Product Details:
|
Main Power: | 5.5KW | Hydraulic Power: | 3KW |
---|---|---|---|
Suitale Thcikness: | 0.8-1.2mm | Roller Station: | 14 Stations |
Speed: | 12~15m/min | Weight: | About 4.6Tons |
High Light: | galvanized Shutter Door Roll Former,15m/min Shutter Door Roll Forming Machine,1.2mm Shutter Door Roll Former |

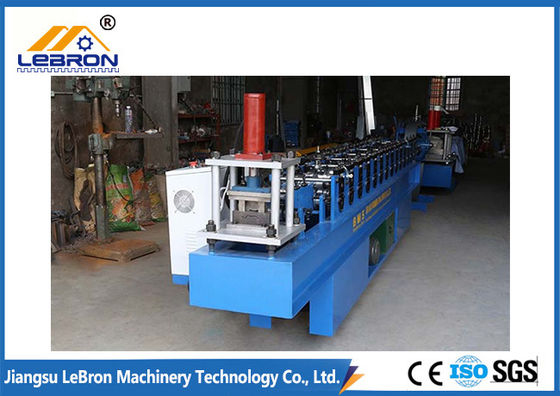

High Speed High Efficiency Fully Automatic Shutter Door Roll Forming Machine
1. Description of shutter door roll forming machine:
Our Shutter Door Slat Roll Forming Machine is customized, we can design and produce a rolling shutter door slat roll forming machine according to your outline drawing. Here I am attaching a profile drawing of our rolling door for your reference, you can choose what you want and then tell me, and we will produce the machine according to the profile drawing you choose.
For the rolling door manufacturing machine, it has many parts:
1. Unwind the coil.
2. Feed the material to the punching machine (it is possible to make the shutter sliding cover have holes).
3. Roll forming parts, for our machine, the forming speed is 0-30m/min, adjustable. Usually, we will manufacture a shutter door forming machine with a gear drive, which will make the machine have strong moving power.
4. Punch. This part will be used with the cutting blade. When cutting, the machine will punch holes together.

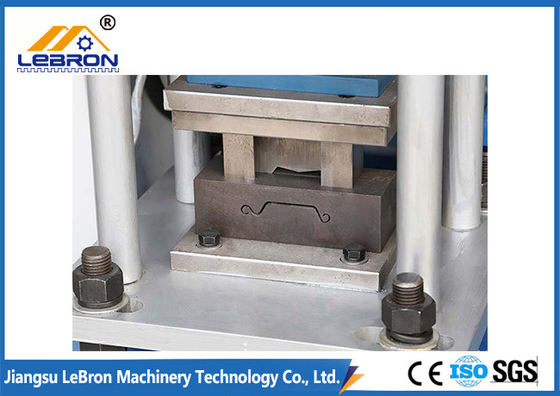

5. Cutting part. We have two cutters for you to choose from, one is a flying saw and the other is a hydraulic cutter.
2. Technical details of shutter door roll forming machine:
No. | Item | Description |
1. | Suitable material | Color steel sheet, galvanized steel sheet, aluminum sheet |
2. | Installation Dimension | 12000X1700X1500 (L*W*H) |
3. | Main motor power | 5.5KW with Cycloidal reducer |
4. | Hydraulic station power | 3KW |
5. | Hydraulic oil pump | 40# |
6. | Thickness of material | 0.8mm~1.2mm |
7. | Diameter of Shaft | Φ70mm |
8. | Material expands width | 760mm |
9. | Electric tension | 380V 3phase 50HZ or as the customer's requirements |
10. | Material of roller | High grade 45# forged steel plated with hard chrome plating |

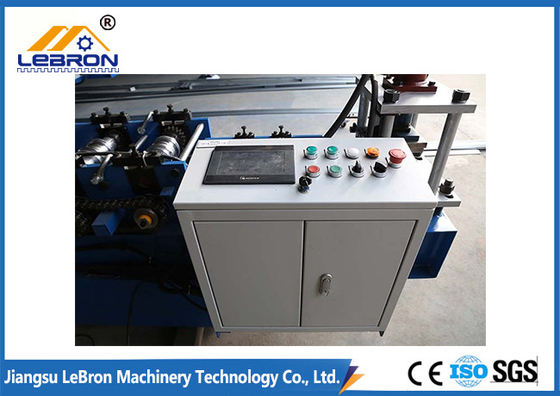

11. | Controlling system | PLC |
12. | Processing speed | 8-12m/min(glazed tile is 2-3m/min) |
13. | Processing precision within | 1.00mm (depending on design) |
14. | Material of cutting blade | Cr12 mold steel with quenched treatment |
15. | Kind of drive | 1.0 inch chain |
16. | Roller station | 14 Rollers |
17. | Roller material | high grade 45#steel; Cr12 quenching |
18. | Leak frame load-bearing | 4.6T |
3. Main components of shutter door roll forming machine
Decoiler | 1 Set |
Feeding Device | 1 Set |
Roll Forming Unit | 1 Set |
Post Cutting Unit | 1 Set |
Hydraulic Station | 1 Set |
Electric Control Cabinet | 1 Set |
Receiving Table | 1 Set |
4. Our Advantages
Our factory has more than 12 years of working experience in researching and selling. Products are well sailed all over the world, got many compliments from customers.
1). Germany COPRA software design
2). 5 engineers with more than 20 years of experience
3). 15 professional technicians
4). 11 sets of advanced CNC production lines on site
5). Passionate Team
6). Installation engineers can reach your factory within 6 days
7). 1-year maintenance and whole-life technical support
5. After-sale FAQ:
1). Q: How to acquire service support?
A: Lebron-Machinery is doing its best to provide timely and convenient service support for the customers, the contents of services include before-sale technical counseling, field installation, operation technical training, application solution training, troubleshooting support, etc.
2). Q: After purchasing Lebron-Machinery’s machine, what kind of training could Lebron-Machinery provide?
A: Lebron-Machinery will provide 7 days of free training. The training place can be in Lebron-Machinery company or in places designated by the customer where installation takes place, this can all be predetermined by clients in the contract.
3). Q: What kind of warranty do Lebron-Machinery’s roll-forming machines provide?
A: Except for the consumables, the whole machine has a one-year limited warranty.
4). Q: After buying Lebron-Machinery’s equipment, are there technicians in charge of supporting on-site installation?
A: Yes, if the equipment is directly sold from Lebron-Machinery, we will arrange for experienced technicians to support the installation and collaboration when the machine arrives. If the device is sold by Lebron-Machinery’s distributors, we will authorize them to send experienced engineers to support the installation and collaboration when the machine arrives. Except the contract made other agreements for the installation.
