Product Details:
|
| Material: | GI, Aluminum Coil Or Strip | Thickness: | 1.2~2.0 Mm |
|---|---|---|---|
| Roller Station: | 15 Stations | Shaft Size: | Dia 75 Mm |
| Productivity: | 8-12 M/min | Weight: | Approx 5 Tons |
| High Light: | automatic rolling shutter machine,garage door roll forming machine |
||

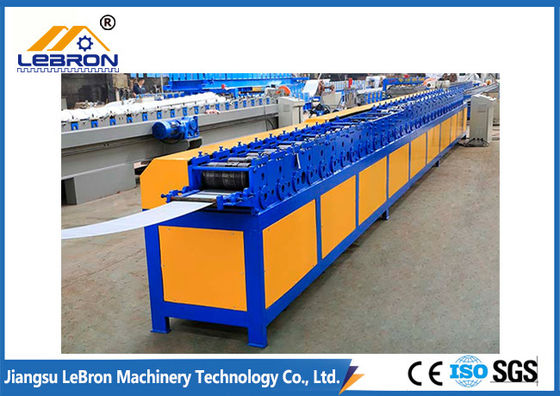

PLC Control Automatic galvanized Shutter Door Roll Forming Machine Shutter Slats
1. Description of shutter door roll forming machine
Now, there are lots of rolling slats on the market, such as C shape, W shape, etc. Rolling Shutter Making Machine is always required for the manufacturing of profiles for rolling shutter doors to raise up and lowered down. Normally, the regular thickness of the galvanized steel strips which for roll form shutter door profiles is 1.2-2.0mm thickness.
Normally, a Rolling Shutter Door Making Machine for the production of rolling shutter door profiles generally consists of an Uncoiler, Leveler device, main Roll Forming system, Transmission system (chain-brackets or gearbox), Cutting Device, Hydraulic Station, PLC control cabinet and run-out tables.
Meantime, due to the heavy duty materials, a Rolling Shutter Making Machine for profiles usually have two types of transmission available for customers to choose: Chain-brackets transmission and Gear-box transmission.
2. Major technical parameters of shutter door roll forming machine
| No. | Item Name | Specification |
| 1 | Suitable material | GI, Aluminum coil or strip |
| 2 | Thickness | 1.2 ~2.0 mm |
| 3 | Roller station | 15 stations |
| 4 | Shaft Diameter | Dia 75 mm |
| 5 | Productivity | 8-12 m/min |
| 6 | Rollers' material | 45# steel, quenched, plated hard chrome |
| 8 | Weight | Approx 5 tons |
| 9 | Length | 5m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Control system | PLC |
| 12 | Decoiler | 3 tons |
| 13 | Main power | 7.5 kw |
| 14 | Driving way | Chain transmission |
| 15 | Chain size | 2 inch |
| 16 | Cutting system | Hydraulic cutter |
3. Major components of shutter door roll forming machine
| No. | Name | Quantity |
| 1 | 5 tons Manual De-coiler | 1 set |
| 2 | Main roll forming machine | 1 set |
| 3 | PLC Control Cabinet | 1 unit |
| 4 | Hydraulic Station | 1 unit |
| 5 | Receive Tables | 2 units |
4. Installation service
After the machine arrives at the destination, the seller will send the technician to the buyer’s factory to install the machine if the buyer wants. The buyer needs to provide some technicians to assist in the installation work.
Installation period is around 5 days. The buyer should have been prepared for the steel sheet, foundation position the machine before seller’s technician's departure.
The buyer should arrange the accommodation, food, and traffic in the destination
Training period: 2 days. (we can supply training on the operation spot if buyer needs)
Within 3 months after the arrival of the goods at the port of destination, if there is no installment requirement from the Buyers, the goods should be counted as up to standard. Inspection standard is based on the technical standard signed by both parties and our company standard.
