Product Details:
|
| Roller Station: | 12 Stations | Shaft: | 45# Steel With Quenched Treatment |
|---|---|---|---|
| Roller: | 45# Steel With Quenched Treatment | Forming Speed: | 10-15m/min |
| Main Motor: | 5.5kw | Voltage: | 380V 50Hz 3Ph |
| High Light: | rolling shutter slats roll forming machine,garage door roll forming machine |
||

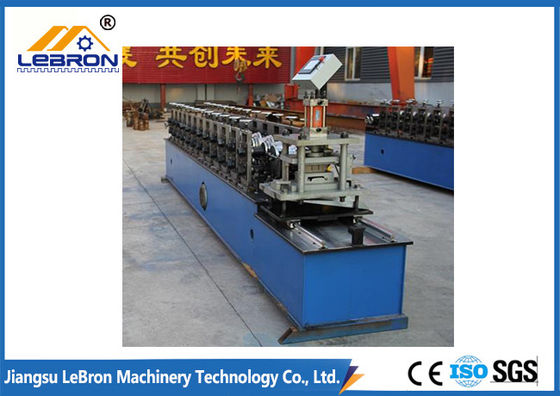

Automatic Galvanized Cold Steel Shutter Door Roll Forming Machine Slat Roller Shutter
1. Description of shutter door roll forming machine
A steel rolling shutter slat roll forming machine has been designed to produce horizontal roller shutter door slats out of galvanized or prepainted steel strips.
A rolling shutter door or roller shutter door is a type of door that consists of many horizontal slats hinge together and the door opens and closes by raising up or lowering down along a rolling shutter door track or guide rails
Compared to a traditional door, a roller shutter door has different close or open method. A traditional door is open or method by rotating from 0-90 degrees, while a roller shutter door opens and closes by raising up and lowering down, and the ending of a roller shutter is a roundel along which the shutter door will be rolled when raised up.
2. Specifications of steel profile roller shutter door slat forming machine
| Decoiler |
a. Coil inner diameter: 450-550mm b. Coil max width: 300mm |
|
perforation machine
|
a.Material of mold: Cr12 quenched b.Power: 3kw c.Punch speed:12m/min d.Thickness: 0.8-1.0mm |
| Roll forming machine |
a. Number of forming steps: 12 stations b. Shaft material: 45# steel with quenched treatment, precision machined, c. Roller material: 45# steel with quenched treatment d. Transmission: by gear chain e. Forming speed: 10-15m/min |
| Shearing system |
a.The material of blade: Cr12Mov, Hardening HRC 58-62℃ b.Length Tolerance:10m±1.0mm C. Power supply: Hydraulic station |
| Hydraulic station |
a. Hydraulic motor Power:4kw b. Hydraulic oil: 40# c. Hydraulic pressure: 12Mpa |
| PLC station |
PLC control system, Delta. You can set the cutting length in the PLC. |
3. Main components of shutter door roll forming machine
| No. | Item | Quantity |
| 1 | Decoiler | 1 Set |
| 2 | Guide and Punch Rollers | 1 Set |
| 3 | Main Roll Forming System | 1 Set |
| 4 | Hydraulic Cutting device | 1 Set |
| 5 | Hydraulic Station | 1 Set |
| 6 | Run-out Table | 2 Sets |
| 7 | Control System | 1 Set |
4. FAQ
How to place the order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
How to visit our company:
Fly to Wuxi airport, we can pick you up.
or, Fly to Shanghai Airport: By high-speed train From Shanghai Hongqiao to Wuxi Railway station, we will pick you up.
What's the after- sale service:
If you need, we sent the technician to your country to fix the machine.
How about the warranty:
12 months limits warranty
