Product Details:
|
| Main Power: | 5.5KW | Hydraulic Power: | 4.0KW |
|---|---|---|---|
| Suitable Material: | Galvanized Steel, Cold-rolled Steel Strip | Roller Station: | 12 Stations |
| Speed: | Approx. 25m/min | Voltage: | 380V/50Hz/3Ph (can Customs) |
| High Light: | 70mm Stud and Track Forming Machine,Durable Steel Stud Track Forming Machine,3Phase Stud Track Forming Machine |
||
Durable Long Service Time Big Capacity Steel Stud And Track Roll Forming Machine
1. Description of stud and track roll forming machine
Now, people tend to use steel. Compare with traditional clays, stones, or bricks, steel is lightweight, recyclable, and costs less money and time. In a lightweight or light gauge steel system, most building materials are made of steel, and most of these steel building materials are manufactured by roll forming machines, one of which is drywall stud and track roll forming machine. This machine was designed for the continuous and automatic production of metal c studs and u tracks which are applied for both exterior and partition walls in both individual and industrial buildings.
The studs and track shapes mainly include C shape, U shape, W shape, C shape with holes, L shape, etc. These products are widely used in many kinds of buildings, such as industrial factories, civilian buildings, and wallboard for the attached part product. They have the advantages of pretty appearance, durable use, and so on.

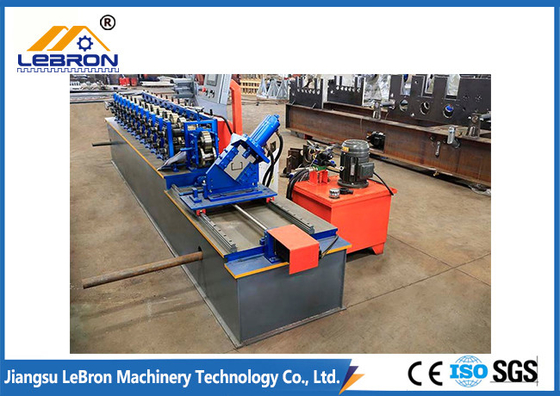

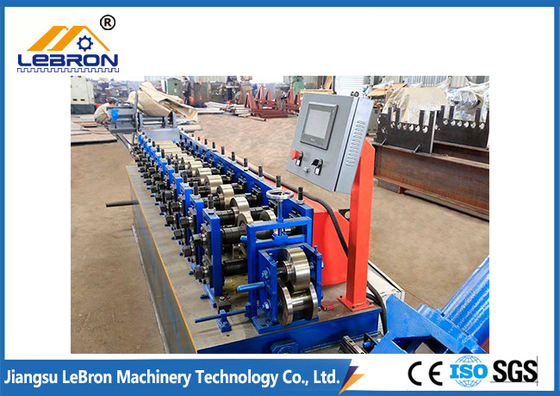

A steel stud and track roll forming machine usually consists of a manual decoiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. Under the PLC control system, this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel of 0.6-1.2mm thickness from punching, roll forming, and cutting.
2. Major technical parameters of the stud and track roll forming machine
| Number | Name | Description |
| 1 | Decoiler | Manual Decoiler |
| 2 | Capacity | 3 Tons |
| 3 | Suitable Material | Galvanized steel strip |
| 4 | Thickness | 0.6-1.2mm |
| 5 | Shaft Diameter | Dia 70mm |
| 6 | Shaft Material | 45# steel, quenched, coated with hard chrome |
| 7 | Roller Material | 45# steel, quenched, coated with hard chrome |
| 8 | Roller Station | 15 stations |
| 9 | Main Power | 5.5KW |
| 10 | Transmission Method | Chain-brackets |

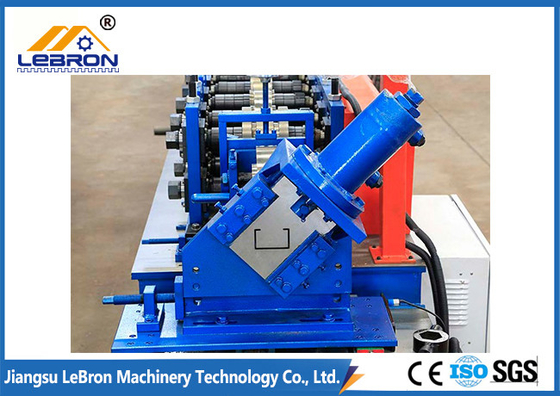

| 11 | Cutting type | Hydraulic tracking cutting |
| 12 | Hydraulic Station Power | 4.0KW |
| 13 | Cutter Blade | Cr12 steel, quenching process 58-62 |

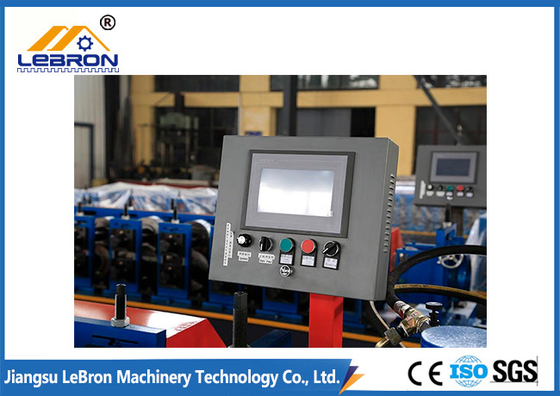

| 14 | Electrical Control System | Panasonic PLC system |
| 15 | Voltage | 380V, 3 Phase 50Hz |
3. Main components of the stud and track roll forming machine
| Name | Quantity | Units |
| Passive Uncoiler | 1 | Set |
| Feeding Device | 1 | Set |
| The Main Roll Forming Unit | 1 | Set |
| Hydraulic Cutter | 1 | Set |
| Hydraulic Station | 1 | Set |
| PLC System | 1 | Set |
| Ran-out Table | 1 | Set |
4. Our Advantages
1). We are a factory with over 10 years of experience in manufacturing Roll Forming Machines;
2). We have our own powerful research and development team
3). We have more than 15 technicians.
4). 5 engineers with more than 20 years of experience
5). We have an advanced Laser Cutting Machine, CNC Machining Center, Polishing Line, Painting Line, etc. This advanced production equipment guarantees the good quality of each part and the appearance of our machines;
6). Our machines have reached the International Inspection Standards;
5. FAQ:
Q: How to maintain it?
A: If used frequently, best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
Q: Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transport.
Q: Can you make the machine according to my design or phototype?
A: Yes. We have an experienced team for working out the most suitable design and production
Q: Can you supply the raw materials?
A: Yes, we can supply the galvanized steel coil, aluminum steel coil, color steel coil
Q: How is this machine's service life?
A: In normal maintenance, the service life is at least 10 years.
